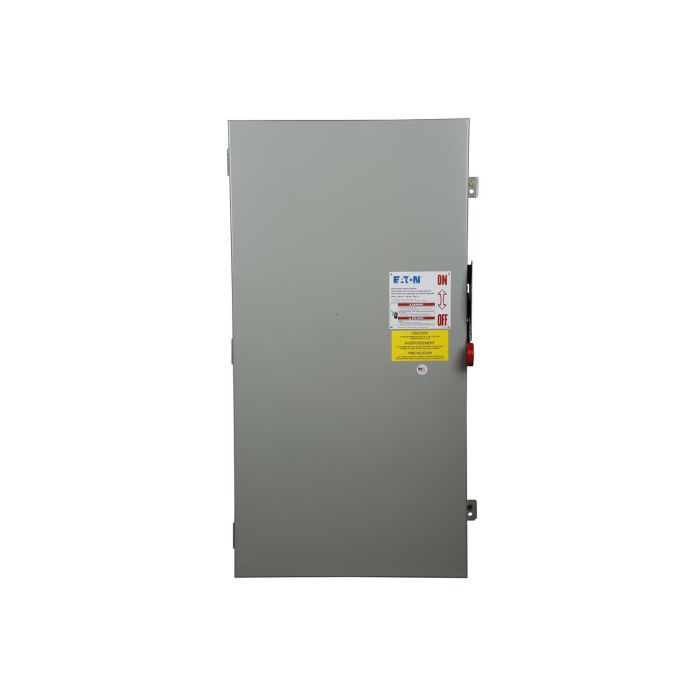

Eaton DH365FGK heavy duty single-throw fused safety switch, 400 a, nema 1, painted steel, class h, fusible without neutral, three-pole, three-wire, 600 v, max hp: 250, 350 hp (3ph @480/600 v), (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil al
Precio especial $115,136.00 IVA incluido + Envio $150 MXN
Antes $133,558.00
Disponible 1 Pzas
Antes $133,558.00
Disponible 1 Pzas
sku: DH365FGK
pub
MX0000106333
DH365FGK
Eaton Heavy duty single-throw fused safety switch, 400 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Three-pole, Three-wire, 600 V, Max Hp: 250, 350 hp (3PH @480/600 V), (2)#1/0-(2)300 kcmil; or (1)#1/0-(1)750 kcmil Al
General Specifications | |
---|---|
Product Name |
Eaton heavy duty fusible safety switch
|
Catalog Number |
DH365FGK
|
UPC |
782113207209
|
Product Length/Depth |
45.5 in
|
Product Height |
10.25 in
|
Product Width |
24.38 in
|
Product Weight |
113 lb
|
Compliances |
NEC 230.62 (C) Compliant Barrier
|
Certifications |
UL Listed
|
Catalog Notes |
Suitable for service entrance use with a Neutral Kit installed
|
Especificaciones del producto | |
Type |
Heavy duty fusible safety switch
|
Amperage Rating |
400A
|
Number of poles |
Three-pole
|
Product Category |
Heavy Duty, Fusible without neutral
|
Voltage rating |
600 V
|
HP rating - max |
250, 350 hp (3PH @480/600 V)
|
Enclosure |
NEMA 1
|
Enclosure material |
Painted steel
|
Fuse class provision |
Class H
|
Fuse configuration |
Fusible without neutral
|
Number of wires |
3
|
NEMA rating |
NEMA 1
|
Window |
No Window
|
Neutral |
Not included
|
Marca | Eaton |
---|---|
MPN: | DH365FGK |
