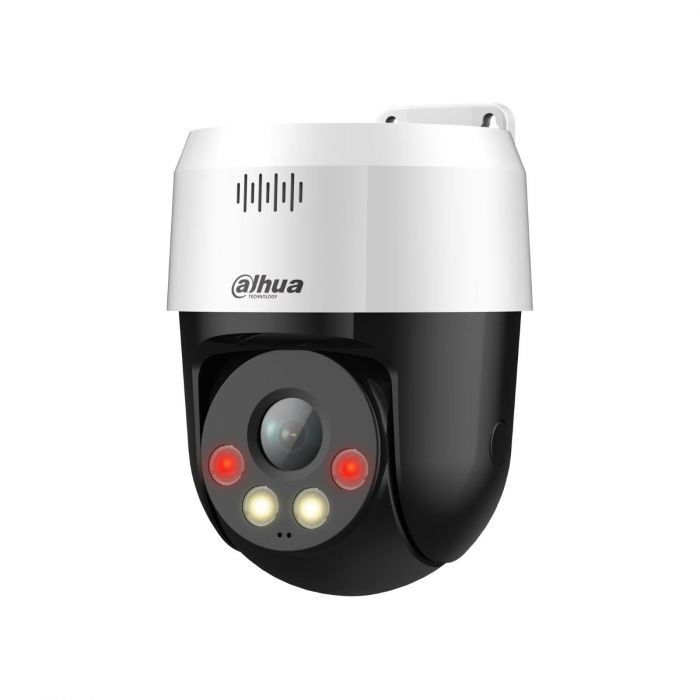

Dahua DH-SD2A500NB-GNY-A-PV DH-SD2A500NB-GNY-A-PV-0400 cámara ip pt de 5mp / full color/ disuasión activa/ iluminador dual inteligente/ 30m ir y luz visible/ audio bidireccional/ detección humanos/ ranura microsd/ ip66 poe. #mci1q125
Precio especial $1,349.00 IVA incluido + Envio $150 MXN
Antes $1,565.00
Disponible 555 Pzas
Antes $1,565.00
Disponible 555 Pzas
sku: DH-SD2A500NB-GNY-A-PV
pub
MX0000105029
DH-SD2A500NB-GNY-A-PV
| Desempeño | |
|---|---|
| Tipo | Cámara de seguridad IP |
| Colocación compatible | Exterior |
| Tecnología de conectividad | Alámbrico |
| Contro PTZ | Si |
| Modos PTZ | Punto preestablecido |
| Modo día / noche | Si |
| Alarma de entrada / salida | Si |
| Luz integrada | Si |
| Diseño | |
| Tipo de montaje | Techo/pared |
| Factor de forma | Tower |
| Resistente a la intemperie | Si |
| Vídeo | |
| Máxima resolución | 2560 x 1920 Pixeles |
| Total de megapixeles | 5 MP |
| Puertos e Interfaces | |
| Puertos Ethernet LAN (RJ-45) | 1 |
| Medios de almacenaje | |
| HDD incorporado | No |
| Lector de tarjeta integrado | Si |
| Tarjetas de memoria compatibles | MicroSD (TransFlash) |
| Capacidad de ROM | 128 MB |
| Capacidad de RAM | 128 MB |
| Seguridad | |
| Canales de entrada de alarma | 1 |
| Canales de salida de alarma | 1 |
| Nivel de ruido de la sirena | 55 Db |
| Cámara fotográfica | |
| Control de desplazamiento de la cámara | Si |
| Control de inclinación de la cámara | Si |
| Iluminación mínima | 0 Lux |
| Ángulo de visión del objetivo, horizontal | 80.4° |
| Ángulo de visión del objetivo, vertical | 58.1° |
| Ángulo de visión de la lente, diagonal | 104.8° |
| Ángulo de inclinación | 0 - 80° |
| Velocidad de preselección de la inclinación | 36.3 °/seg |
| Velocidad de inclinación manual | 0.1 - 36.4 °/seg |
| Velocidad de panorámica prefijada | 74 °/seg |
| Velocidad de giro manual | 0.1 - 36.4 °/seg |
| Tipo de disparador de la cámara | Electrónico |
| Velocidad de obturador | 1 - 100000 s |
| Contenido del empaque | |
| Número de cámaras | 1 |
| Peso y dimensiones | |
| Ancho | 140.5 mm |
| Diámetro | 11.1 cm |
| Peso | 500 g |
| Peso (con soporte) | 1 kg |
| Visión nocturna | |
| Visión nocturna | Si |
| Distancia de visión nocturna | 30 m |
| Distancia de visión nocturna en B/N | 30 m |
| Tipo de LED | IR/Blanco |
| Número de LEDs de iluminación | 4 |
| Red | |
| Ethernet | Si |
| Número de usuarios | 20 usuario(s) |
| Control de energía | |
| Tipo de alimentación | CC, PoE |
| Consumo energético | 3.5 W |
| Consumo de energía (máx.) | 9 W |
| Voltaje de salida CC | 12 |
| Corriente de salida CC | 1.5 A |
| Audio | |
| Altavoces incorporados | Si |
| Sistema de audio | De 1 vía |
| Canales de entrada de audio | 1 canales |
| Canales de salida de audio | 1 canales |
| Micrófono incorporado | Si |
| número de micrófonos | 1 |
| Sensor de la imagen | |
| Tipo de sensor | CMOS |
| Tamaño del sensor óptico | 25.4 / 2.8 mm (1 / 2.8') |
| Escaneado progresivo | Si |
| Características de administración | |
| Administración basada en web | Si |
| Sistema de lentes | |
| Distancia de detección | 77.4 m |
| Distancia de observación | 31 m |
| Distancia de reconocimiento | 15.5 m |
| Diámetro de lente | 7.74 mm |
SD2A500NB-GNY-A-PV
5MP Smart Dual Light Network PT Camera
> 1/2.8' 5Megapixel STARVIS™ CMOS.
> Max. 25/30fps@5MP.
> Human/vehicle detecton.
> Tripwire, intrusion.
> H.265 encoding.
> PoE.
> Two-way talk.
> Sound and light alarm.
> IR and white light, three night view modes.
> IP66.
.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 5 MP |
| Max. Resolution | 2560 (H) × 1920(V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Electronic Shutter Speed | 1 s–1/100,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on) |
| Illumination Distance | 30 m (98.43 ft) (warm light); 30 m (98.43 ft) (IR); |
| Illuminator On/Off Control | Manual; auto; off |
| Illuminator Number | 2 (IR light); 2 (warm light) |
| Lens | |
| Focal Length | 4.0 mm |
| Max. Aperture | F1.6 |
| Field of View | H: 80.4°; V: 58.1°; D: 104.8° |
| Close Focus Distance | 0.3 m (0.98 ft) |
| Iris Control | Fixed |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 345°; Tilt: 0° to +80° |
| Manual Control Speed | Pan: 0.1°–74°/s; Tilt: 0.1°–36.4°/s |
| Preset Speed | Pan: 0.1°–62°/s; Tilt: 0.1°–36.3°/s |
| Preset | 300 |
| Power-off Memory | Yes |
| Idle Motion | Preset |
| Smart Event | |
| IVS | Tripwire; intrusion |
| Human Detection | Yes |
| Intelligence | |
| SMD | SMD3.0 |
| Active Deterrence | |
| Light Warning | Warm light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 1 sound alarm and 10 custom sound alarms can be imported; Sound can be set from 0%–100%; Play times can be set from 1-10. |
| Video | |
| Video Compression | H.264H;H.264B;Smart H.265+;H.265;Smart H.264+;H.264M;MJPEG(Sub Stream 1) |
| Streaming Capability | 2 streams |
| Resolution | 5M (2560 × 1920); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 5M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 104 kbps-8,192 kbps H265: 41 kbps-8,192 kbps |
| Day/Night | Auto (ICR); Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Defog | Electronic |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; AAC |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Network Protocol | UDP;FTP;RTMP;IPv6;IPv4;IP Filter;DNS;RTCP;HTTP;NTP;SSL;DHCP;RTP;SMTP;HTTPS;TCP/IP;RTSP;DDNS;ARP |
| Interoperability | RTMP;CGI;SDK;ONVIF (Profile S & Profile T);P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (256 GB); FTP |
| Browser | IE: IE 7 and later versions; Chrome; Firefox; Safari |
| Management Software | Player;Smart Player ;DMSS;ConfigTool;NVR;Smart PSS |
| Mobile Client | iOS;Android |
| Certification | |
| Certifications | CE: EN55032/EN50130-4/EN IEC61000-3-3/EN IEC61000- 3-2/EN55024/EN55035/EN62368-1 FCC: 47 CFR FCC Part15, Subpart B, ANSI C63.4:2014 |
| Port | |
| Audio Input | 1 channel (built-in mic) |
| Audio Output | 1 channel (built-in speaker) |
| Alarm Linkage | Capture; preset; recording; audio; sending email |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Power | |
| Power Supply | 12 VDC/1.5 A ± 10% PoE (802.3af) |
| Power Consumption | Basic: 3.5 W; Max: 9 W (illuminator) |
| Environment | |
| Operating Temperature | –30 °C to +55 °C (–22 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Protection | Waterproof and Dustproof;TVS 2000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 140.5 mm × Φ111.0 mm (5.53' × Φ4.37') |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD2A500NB-GNY-A-PV |
