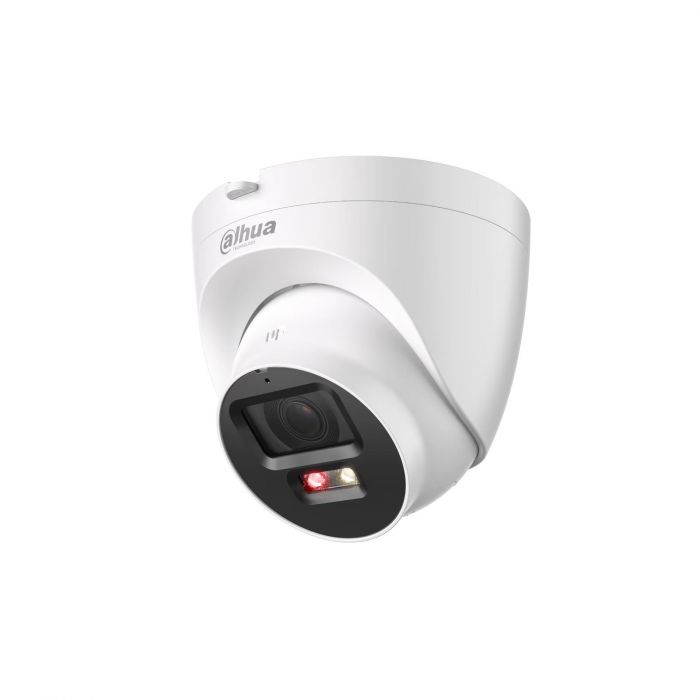

Dahua DH-IPC-HDW2549T-S-PV ipc-hdw2549t-s-pv - cámara domo ip de 5 megapixeles/ 30 metros iluminador dual inteligente/ disuasión activa/ lente 2.8mm/ smd plus/ protección perimetral, micrófono y bocina integrados/audio dos vías/ ip67/ ranura microsd/
Precio especial $1,779.00 IVA incluido + Envio $150 MXN
Antes $2,064.00
Disponible 808 Pzas
Antes $2,064.00
Disponible 808 Pzas
sku: DH-IPC-HDW2549T-S-PV
pub
MX0000104909
DH-IPC-HDW2549T-S-PV
| Desempeño | |
|---|---|
| Tipo | Cámara de seguridad IP |
| Colocación compatible | Interior y exterior |
| Tecnología de conectividad | Alámbrico |
| Amplio rango dinámico (WDR) | Si |
| Modo día / noche | Si |
| Certificación | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Diseño | |
| Tipo de montaje | Techo |
| Color del producto | Blanco |
| Factor de forma | Torreta |
| Material de la cubierta | Metal, Plástico |
| Código IP (International Protection) | IP67 |
| Empaquetado de datos | |
| Peso del paquete | 570 g |
| Vídeo | |
| Máxima resolución | 2960 x 1688 Pixeles |
| Total de megapixeles | 5 MP |
| Formatos de compresión de video | H.264, H.264B, H.264H, H.265, M-JPEG |
| Formatos gráficos soportados | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2688 x 1520, 2880 x 1620 |
| Formato de vídeo soportado | 720p, 1080p |
| Velocidad de cuadro | 30 fps |
| Emisión de vídeo | Si |
| Reducción de ruido | Si |
| Tecnología de reducción de ruido | Reducción de ruido 3D |
| Tipo de control de ganancia | Automático/Manual |
| Enmascaramiento de privacidad | Si |
| Control de tasa de bits | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Rango de bits | 32 Kbps - 8192 Kbps |
| Compensación de contraluz (BLC) | Si |
| Compensación de luces altas (HLC) | Si |
| Codificación de regiones de interés (ROI) | Si |
| Smart IR | Si |
| Puertos e Interfaces | |
| Puertos Ethernet LAN (RJ-45) | 1 |
| Medios de almacenaje | |
| HDD incorporado | No |
| Tarjetas de memoria compatibles | MicroSD (TransFlash) |
| Tamaño máximo de tarjeta de memoria | 256 GB |
| Capacidad de ROM | 128 MB |
| Seguridad | |
| Detección de movimiento en video | Si |
| Alarma de manipulación activa | Si |
| Características del sistema de videovigilancia inteligente (IVS) | Intromisión, Cable de conexión |
| Espejo | Si |
| Cámara fotográfica | |
| Control de desplazamiento de la cámara | Si |
| Control de inclinación de la cámara | Si |
| Iluminación mínima | 0 Lux |
| Ángulo de rotación | 360° |
| Ángulo de visión del objetivo, horizontal | 111° |
| Ángulo de visión del objetivo, vertical | 58.5° |
| Ángulo de visión de la lente, diagonal | 136° |
| Ángulo de inclinación | 0 - 78° |
| Rango de paneo | 0 - 360° |
| Balance de blancos | Auto, Manual, Natural, Exterior, Regional custom, Street lamp |
| Tipo de disparador de la cámara | Electrónico |
| Velocidad de obturador | 1/3 - 1/100000 s |
| Velocidad de obturación ajustable | Automático/Manual |
| Requisitos del sistema | |
| Sistemas operativos móviles soportados | Android, iOS |
| Contenido del empaque | |
| Número de cámaras | 1 |
| Peso y dimensiones | |
| Diámetro | 11 cm |
| Longitud | 103.5 mm |
| Peso | 390 g |
| Visión nocturna | |
| Visión nocturna | Si |
| Distancia de visión nocturna | 30 m |
| Tipo de LED | IR/Blanco |
| Número de LEDs de iluminación | 2 |
| Red | |
| Ethernet | Si |
| Wifi | No |
| Bluetooth | No |
| Tipo de interfaz ethernet | Ethernet rápido |
| Protocolos de red compatibles | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P2P; PPPoE; Bonjour; auto registration |
| Número de usuarios | 20 usuario(s) |
| Calidad de servicio (QoS) soporte | Si |
| Modo de retransmisión | Multidifusión |
| Control de energía | |
| Tipo de alimentación | CC, PoE |
| Consumo energético | 2.2 W |
| Voltaje de salida CC | 12 |
| Condiciones ambientales | |
| Intervalo de temperatura operativa (T-T) | -40 - 60 °C |
| Intervalo de temperatura de almacenaje | -40 - 60 °C |
| Intervalo de humedad relativa para funcionamiento | 0 - 95% |
| Audio | |
| Relación señal/ruido (SNR) | 56 Db |
| Sensor de la imagen | |
| Tipo de sensor | CMOS |
| Número de sensores | 1 |
| Tamaño del sensor óptico | 25.4 / 2.7 mm (1 / 2.7') |
| Escaneado progresivo | Si |
| Características de administración | |
| Navegador web | Si |
| Sistema de lentes | |
| Número de lentes | 1 |
| Intervalo de longitud focal | 2.8, 3.6 mm |
| Apertura máxima | 1 |
| Distancia de identificación | 6.4 m |
| Distancia de detección (angular) | 63.8 m |
| Distancia de detección (tele) | 77.8 m |
| Distancia de observación (angular) | 25.5 m |
| Distancia de observación (tele) | 31.1 m |
| Distancia de reconocimiento (angular) | 12.8 m |
| Distancia de reconocimiento (tele) | 15.6 m |
| Distancia de identificación (angular) | 6.4 m |
| Distancia de identificación (tele) | 7.8 m |
*Mas datos
IPC-HDW2549T-S-PV
5MP Smart Dual Light Active Deterrence Fixed-focal Eyeball WizSense Network Camera
> 5-MP 1/2.7' CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1688)@20 fps, and 4 MP (2688 × 1520)@25/30 fps by default.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light, and the max. IR illumination distance is 30 m, the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built-in Mic; built-in speaker; support two-way talk.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> Sound and light alarm.
> SMD Plus.
> One-tap arming/disarming.
| Camera | |
| Image Sensor | 1/2.7' CMOS |
| Max. Resolution | 2960 (H) × 1688 (V) |
| ROM | 128 MB |
| RAM | 256 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 lux@F1.0 (Color, 30 IRE) 0.0006 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR) Up to 30 m (98.43 ft) (Warm Light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED); 1 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm |
| Max. Aperture | F1.0 |
| Field of View | 2.8 mm: H: 111.0°; V: 58.5°; D: 136.0° 3.6 mm: H: 91.9°; V: 48.7°; D: 107.7° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 1.4m (4.59 ft); 3.6 mm: 2.0m (6.56 ft) |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| SMD | SMD Plus |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2960 × 1668@(1–20 fps)/2688 × 1520@(1-25/30 fps); sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps); *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 5M (2960 × 1668); 4.6M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes, built-in Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; G.726; PCM |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; P2P; PPPoE; Bonjour; auto registration |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI |
| User/Host | 20 (Total bandwidth: 48 M) |
| Storage | FTP; SFTP; NAS; Micro SD card (support max. 256 GB) |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS Lite; DSS; DMSS |
| Mobile Client | iOS;Android |
| Cyber Security | Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| Power Supply | 12 VDC/PoE |
| Power Consumption | Basic: 2.2 W (12 VDC), 2.9 W (PoE) Max. (H.265 + intelligence on + WDR + IR intensity+ warm light deterrence+speaker): 8.8 W (12 VDC), 10.4 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP67 |
| Structure | |
| Casing Material | Inner core: Metal; Cover: Plastic |
| Product Dimensions | 103.5 mm × Φ109.9 mm (4.07' × Φ4.33') |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.57 kg (1.26 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-HDW2549T-S-PV |
