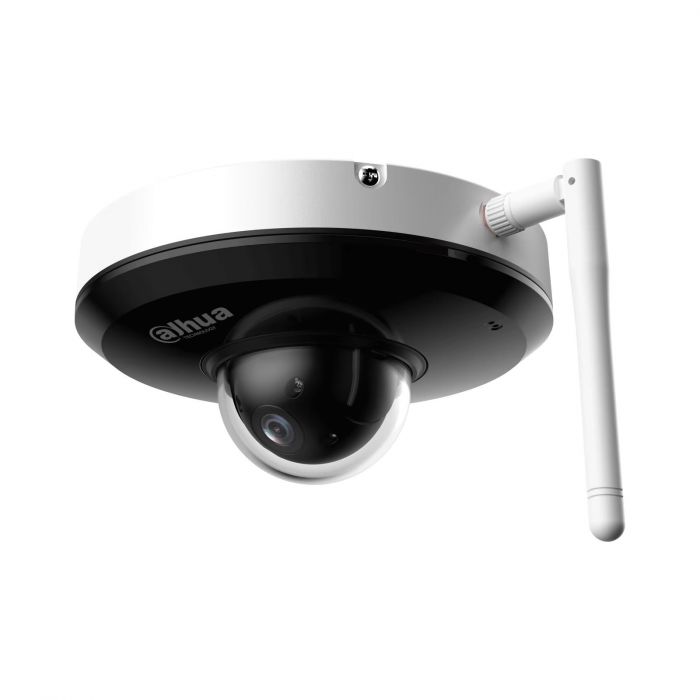

Dahua DH-SD1A204DB-GNY-W camara ip domo ptz ofrece 2mp con tecnología starlight para claridad en baja luz, zoom óptico 4x, visión nocturna ir de 20m, detección facial, micrófono integrado, smd 3.0 y protección ip66/ik08. #mci1q125
Precio especial $3,293.00 IVA incluido + Envio $150 MXN
Antes $3,820.00
Disponible 355 Pzas
Antes $3,820.00
Disponible 355 Pzas
sku: DH-SD1A204DB-GNY-W
pub
MX0000104574
SD1A204DB-GNY-W
2MP 4x Starlight IR WizSense Network PTZ Camera
> 1/2.8' 2Megapixel CMOS.
> 4x optical zoom.
> Starlight technology.
> Max. 25/30 fps@2MP.
> IR distance up to 20 m.
> Perimeter protection.
> Face detection.
> SMD 3.0.
> Built-in Mic.
> IP66; IK08.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 2 MP |
| Max. Resolution | 1920 (H) × 1080 (V) |
| ROM | 256 MB |
| RAM | 512 MB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.8 (Color, 30 IRE); 0.0005 lux@F1.8 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | 20 m (65.62 ft) (IR) |
| Illuminator On/Off Control | Manual; SmartIR; Off |
| Illuminator Number | 3 (IR light) |
| Lens | |
| Focal Length | 2.8 mm–12 mm |
| Max. Aperture | F1.8–F2.7 |
| Field of View | H: 101.6°–51.9°; V: 53.1°–29.1°; D: 121.8°–59.7° |
| Optical Zoom | 4x |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.2 m–0.5 m (0.66 ft– 1.64 ft) |
| Iris Control | Fixed iris |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 355°; Tilt: 5° to 90° |
| Manual Control Speed | Pan: 0.1°/s–70°/s; Tilt: 0.1°/s–30°/s |
| Preset Speed | Pan: 0.1°/s–80°/s; Tilt: 0.1°/s–40°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
| PTZ Protocol | DH-SD |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification |
| Face Detection | Supports face detection, snapshot, and face enhancement; Supports face cutout: Face, one-inch photo; Capturing strategies include real-time capturing and quality first. |
| People Counting | Supports counting the number of people that cross the detection line, counting the number of people in an area and queue management. Also, only people counting that cross the detection line supports the report function. |
| SMD | Yes |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG (Sub Stream); Smart H.264+ |
| Streaming Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 1080p/1.3M/720p@(1-25/30 fps) Sub stream 1: D1/VGA/CIF@(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 64 Kbps–8,192 Kbps H265: 25 Kbps–6,400 Kbps |
| Day/Night | ICR: Color; B/W; Auto; Electronic: Color; B/W; Auto |
| BLC | Yes |
| WDR | 120 dB |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual; gain prio |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM; G.711A; G.711MU; G.726; MPEG2-Layer2; G.722.1 |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | Yes |
| Wi-Fi Standard | IEEE802.11b; IEEE802.11g; IEEE802.11n; IEEE802.11ax |
| Wi-Fi Frequency Range | 2.4 GHz |
| Wi-Fi Transmission Rate | 229 Mbps |
| Max Transmission Power | ≤20 dBm@2400–2483.5 MHz |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
| Certification | |
| Certifications | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 CE-RED:EN301489; EN300328; EN IEC 62311 |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT,bare wire) |
| Alarm Linkage | Capture; recording; send email; preset; tour |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC, 2 A ± 10% |
| Power Consumption | Basic: 4 W; Max: 13 W (illuminator on) |
| Environment | |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140°F) |
| Operating Humidity | ≤95% |
| Protection | TVS 6000 V lightning proof; IP66; IK08; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 65.7 mm × Φ128.0 mm (2.59' × 5.04') |
| Net Weight | 0.5 kg (1.10 lb) |
| Gross Weight | 0.7 kg (1.54 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD1A204DB-GNY-W |
