Dahua DHI-HY-FT431LDP wisualarm hy-ft431ldp - cámara ip termica para detección de fuego 4 mp/ detector vox alta sensibilidad/ incendio, alarma punto frio y caliente/ e&s alarma/ ranura micro sd, micrófono, bocina 70db/ ip67/ #wisualarm
Precio especial $5,391.00 IVA incluido + Envio $150 MXN
Antes $6,254.00
Disponible 108 Pzas
Antes $6,254.00
Disponible 108 Pzas
sku: DHI-HY-FT431LDP
pub
MX0000104571
HY-FT431LDP

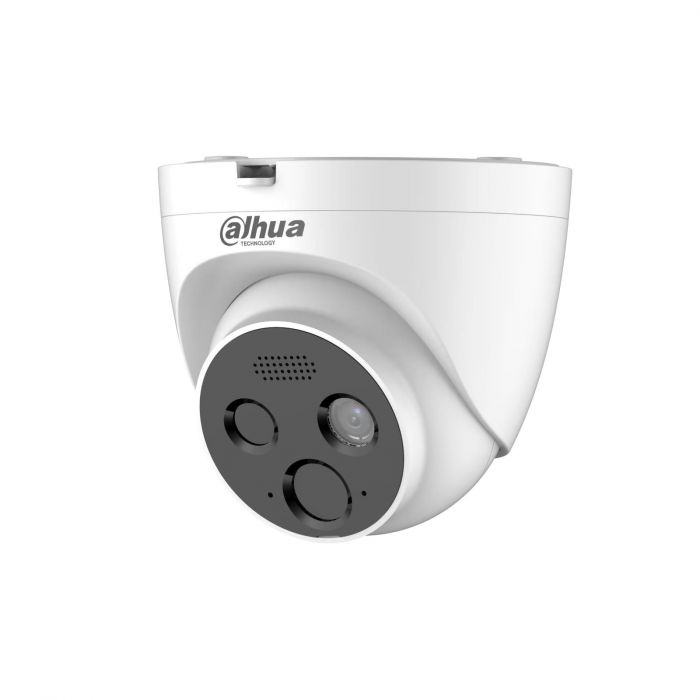

Flame Detection Network Camera
> Industry leading uncooled VOx focal plane detector with high sensitiv- ity
> Supports fire detection alarm, cold and hot spot alarm, and industrial temperature detection alarm functions
> Supports sound and light alarm linkage, and supports binocular fusion
> Visible light adopts a 4MP 1/2.7 inch CMOS image sensor, which has good low illumination effect and high image clarity
> Support multi-level user management, humanized monitoring, confi dentiality, and permission management
> Supports H.265 encoding with high compression ratio, achieving ultra- low bitstream transmission
> Supports 1-way alarm input and 1-way alarm output functions, con- venient linkage
> Built in MIC and high volume speakers, high decibel alarm sound 70dB ≥ 1m (A-weighted)
> Built in high-efficiency infrared fill light, with a maximum infrared monitoring distance of 15 meters
> Support DC12V/POE power supply mode for easy engineering instal- lation
> Supports IP66 protection level
| General | |
| Appearance | Eyeball |
| Type | Radiometry |
| Thermal | |
| Detector Type | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 120 (H) × 90 (V) |
| Pixel Pitch | 17 μm |
| Spectral Range | 8 μm–14 μm |
| Sensitivity (NETD) | < 60mK (@f/1.0, 300K) |
| Focal Length | 1.2 mm |
| Field of View | Horizontal: 90° Vertical: 67.5° |
| Thermal Focus Control | Fixed-focal |
| Close Focus Distance | 0.5 m (1.65 ft) |
| Aperture | F1.1 |
| Flame Detection Distance | 10m, flame size of 10 cm x 10 cm |
| Thermal Noise Reduction | 3D NR |
| Image Flip | Normal, corridor mode, reflection |
| Color Palettes | Supports 12 adjustable pseudo colors including White Heat, Lava, Iron Red, Hot Iron, Medical, Arctic, Rainbow, Black Heat, Human Screening, Red Paint, Blue Heat, and Green Heat |
| Temperature Detection Range | -10°C to +200°C (+14°F to 392°F) |
| Temperature Detection Accuracy | MAX (±5°C, ±5%) |
| Temperature Detection Mode | 1. Support real-time point temperature detection function 2. There are three rules for detecting temperature simultaneously: points, lines, and polygons 3. Supports temperature alarm function 4. Supports cold and hot spot alarm function 5. The temperature detection unit is Fahrenheit and Celsius, which can be set |
| Visible | |
| Image Sensor | 1/2.7' CMOS |
| Max. Resolution | 2688(H)×1520(V) |
| Pixel | 4 MP |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.0052 lux B/W: 0.0028 lux 0 lux (IR on) |
| Visible AGC | Auto; Manual |
| Visible Noise Reduction | 2D NR; 3D NR |
| S/N Ratio | ≥ 55 dB |
| White Balance | Auto/indoor/outdoor/track/manual/natural/street lamp |
| Electronic Shutter Speed | 1/3 s–1/100000 s (manual/auto) |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| Day/Night | Auto (ICR); Color and B/W |
| Iris Control | Fixed |
| Image Flip | Normal (0 °), corridor mode (90 °/270 °), Mirror/Flip (180 °) |
| Exposure Compensation | Yes |
| Visible Focus Control | Fixed-focal |
| Focal Length | 4 mm |
| Field of View | H: 85° V: 44° D: 99° |
| Close Focus Distance | 1 m (3.28 ft) |
| Aperture | F1.6 |
| Illuminator Type | 1 (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illumination Distance | 15 m (49.21 ft) |
| Audio and Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Resolution | Visible: Main stream: (4M (2688×1520)/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720), default (1920 × 1080) Sub stream: (D1 (704 × 576)/VGA (640x480)/CIF (352x288)), default (704x576) |
| Video Frame Rate | Visible: Main stream: 1 fps–25 fps adjustable, 25 fps by default Sub stream: 1 fps–25 fps adjustable, 25 fps by default |
| Audio Compression | MPEG2-Layer2; G.711a; G.711mu; AAC; PCM; G.722.1; G.726 |
| Image Encoding Format | JPEG |
| Audio Sampling | 8K; 16K |
| Function | |
| Built-in MIC | Yes |
| Built-in Speaker | Yes |
| Sound and Light Alarm | Yes |
| Network Protocol | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Privacy Masking | Yes (4 areas) |
| Storage | FTP; NAS; SFTP |
| Interoperability | ONVIF; GB/T28181; CGI; Imou |
| Browser | IE: IE 9 and later (Edge is not supported) Chrome: 42 and earlier Firefox: 42 and earlier |
| User/Host | Up to 10 (total bandwidth: 100 MB) |
| Default | Support one-click restore |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| User Management | Up to 10 users |
| Malfunction Detection | ICON network disconnection detection; IP conflict detection |
| Intelligence | |
| Heat Detection | Yes |
| Heat Detection Distance (recommend) | 10 m (32.81 ft) |
| Port | |
| Network Port | 1 RJ-45 PoE 10M/100M Ethernet ports |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| Alarm Linkage | Trigger switch output/email/snapshot |
| Power | |
| Power Supply | DC12V(±30%)/POE |
| Power Consumption | Basic: 1.8 W Max.: 3 W |
| Environment | |
| Operating Temperature | –10°C to +55°C (+14°F to +131°F) |
| Operating Humidity | ≤ 95% |
| Storage Temperature | –20°C to +70°C (–4°F to +158°F) |
| Construction | |
| Protection | IP66 |
| Product Dimensions | φ109.9 mm × 90.1 mm (φ4.32' × 3.54') |
| Packaging Dimensions | 157 mm*157 mm*138 mm (6.17' × 6.17' × 5.43')(L × W × H) |
| Net Weight | 0.35 kg (0.78 lb) |
| Gross Weight | 0.5 kg (1.12 lb) |
| Installation | Wall mount; Ceiling mount; Vertical pole mount |
| Power Adapter | Optional |
| Lens | Standard |
| Certifications | CE; FCC |
| Marca | Dahua |
|---|---|
| MPN: | DHI-HY-FT431LDP |
