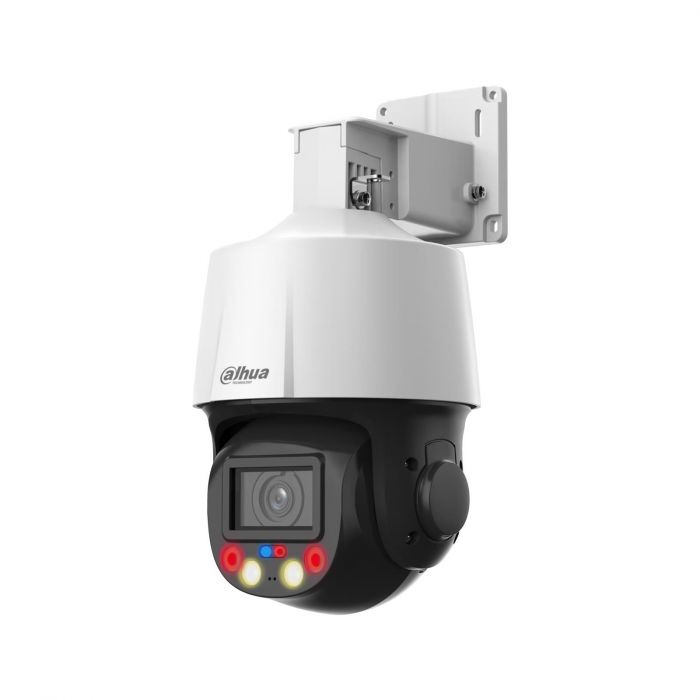

Dahua DH-SD3E405DB-GNY-A-PV1 - camara ip ptz de 4 mp tioc 5x zoom optico/ iluminación dual inteligente/ disuasión activa con luz roja y azul/ ir 50 metros/ micrófono altavoz integrado/ audio 2 vías/ ranura para microsd/ ip66/ poe/

Precio especial $3,342.00 IVA incluido + Envio $150 MXN
 Antes $3,877.00
Disponible 26 Pzas
sku: DH-SD3E405DB-GNY-A-PV1
pub
MX0000101038
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo
Agregar para comparar
main product photo

SD3E405DB-GNY-A-PV1

4MP 5x TiOC WizSense Network PTZ Camera

> 1/2.8' 4Megapixel CMOS.

> 5x optical zoom.

> Max. 25/30fps@4M.

> IR distance up to 50 m.

> Warm light illumination distance up to 30 m.

> SMD 3.0.

> Perimeter protection.

> Face detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out.

> Built-in Mic and Speaker for Two-way Talk.

> 12 VDC/PoE power supply.

> IP66.

> Sound and light alarm (red and blue lights).

Camera
Image Sensor 1/2.8' CMOS
Pixel 4 MP
Max. Resolution 2560 (H) × 1440 (V)
ROM 128 MB
RAM 512 MB
Electronic Shutter Speed 1/1 s–1/30,000 s
Scanning System Progressive
Min. Illumination Color: 0.005 lux@F1.6
B/W: 0.0005 lux@F1.6
0 lux (IR light on)
Illumination Distance 50 m (164.04 ft) (IR)
30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Zoom Prio; Manual; Auto; Off
Illuminator Number 2 (IR)
2 (Warm light)
1 (Red light)
1 (Blue light)
Lens
Focal Length 2.7 mm–13.5 mm
Max. Aperture F1.6–F3.0
Field of View H: 94.9°–30.1°;
V: 51°–17.1°;
D: 112.3°–34.6°
Optical Zoom 5×
Focus Control Auto; semi-auto; manual
Close Focus Distance 1.5 m (4.92 ft)
Iris Control Fixed
DORI Distance Detect Observe Recognize Identify
270 m (885.83 ft) 106.6 m (349.74 ft) 54 m (177.17 ft) 27 m (88.58 ft)
PTZ
Pan/Tilt Range Pan: 0° to 355°
Tilt: –15° to +90°
Manual Control Speed Pan: 0.1°/s–36°/s
Tilt: 0.1°/s–25.8°/s
Preset Speed Pan: 35.7°/s; Tilt: 27.1°/s
Preset 300
Power-off Memory Yes
Idle Motion Preset
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking
Face Detection Supports face detection, snapshot, and face enhancement;
Supports face cutout: Face, one-inch photo;
Capturing strategies include real-time capturing and quality first
Auto Tracking Lite Yes
SMD Yes
Active Deterrence
Light Warning Red and blue light warning
Flash duration: 5 s–30 s
Flash frequency: high, medium, low
Sound Warning Offers 11 types of sound alarms, and supports importing up to 10 custom sound alarms. The sound alarm can be set to play 1 to 10 times
Video
Video Compression H.264H;H.264B;Smart H.265+; H.264;H.265;MJPEG(Sub Stream);Smart H.264+
Streaming Capability 3 streams
Resolution 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p(1280 × 720); D1 (704 × 576); VGA (640 × 480); CIF (352 × 288)
Video Frame Rate Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)
Sub stream 1: D1/CIF/VGA@ (1–25/30 fps)
Sub stream 2: 720p @(1–25/30 fps)
Bit Rate Control CBR/VBR
Video Bit Rate H.264: 96 kbps–14848 kbps
H.265: 38 kbps–8960 kbps
Day/Night Auto (ICR)/Color/B/W
BLC Yes
WDR 120 dB
HLC Yes
White Balance Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control Auto; manual
Noise Reduction 2D NR; 3D NR
Motion Detection Yes
Region of Interest (RoI) Yes
Image Stabilization Electronic (EIS)
Defog Electronic
Digital Zoom 16×
Image Rotation 180°
S/N Ratio ≥55 dB
Audio
Audio Compression G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; PCM
Network
Network Port RJ-45 (10/100 Base-T)
Network Protocol FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;SMB;HTTP;SSL;DHCP;SMTP;Qos;RTSP;ARP
Interoperability CGI;SDK;ONVIF (Profile S&G&T);P2P
Streaming Method Unicast/Multicast
User/Host 20 (total bandwidth: 64 M)
Storage FTP/SFTP; Micro SD card (512 GB); NAS
Browser IE 9 and later versions
Chrome 41 and later versions
Firefox 50 and later versions
Safari 10 and later versions
Management Software DMSS;DSS Pro
Mobile Client iOS;Android
Certification
Certifications CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
Port
Audio Input 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive))
Audio Output 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm Linkage Capture; recording; send email; preset; alarm digital input; audio; warning light
Alarm Event Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm I/O 1/1
Audio I/O 1/1
Power
Power Supply 12 VDC, 2 A ± 10%
PoE+ (802.3at)
Power Consumption Basic: 4.5 W
Max.: 15 W (illuminator + PTZ + speaker + heating glass)
Environment
Operating Temperature –30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity ≤95%
Protection IP66, TVS 6000 V lightning proof; surge protection; voltage transient protection
Structure
Product Dimensions 142.6 mm × 140 mm × 236.1 mm (5.61' × 5.51' × 9.29')
Net Weight 1.5 kg (3.31 lb)
Gross Weight 2.1 kg (4.63 lb)
The precision of the presets for PTZ cameras might vary depending on different series. For scenes with high requirements on the precision, contact your local sales representative for assistance with selecting the model.
Más información
MarcaDahua
MPN:DH-SD3E405DB-GNY-A-PV1
