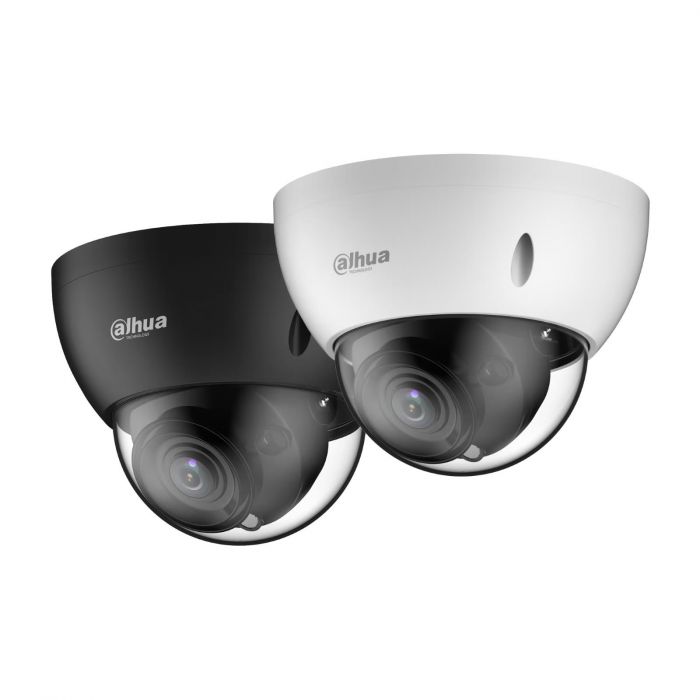

Dahua DH-IPC-HDBW5541E-ZE ipc-hdbw5541e-ze - cámara ip domo de 5 megapíxeles/ wizmind / lente motorizado 2.7 mm13.5 mm/ led ir 40m/ 114°/ h.265+/ metadatos video/ smd 3.0/ acupick/ e&s alarma y audio/ ranura para micro sd/ ip67/ ik10/ epoe
Precio especial $7,311.00 IVA incluido + Envio $150 MXN
Antes $8,481.00
Disponible 6 Pzas
Antes $8,481.00
Disponible 6 Pzas
sku: DH-IPC-HDBW5541E-ZE
pub
MX0000100177
IPC-HDBW5541E-ZE
5MP IR Vari-focal Vandal-proof Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 5541-Z-S3 series.
> 5-MP 1/2.7' CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5MP (2960×1668) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc.
> Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC.
> 24V AC/12 VDC/PoE power supply; ePoE.
> IP67 and IK10 protection.
> SMD 3.0.
| Camera | |||||
| Image Sensor | 1/2.7' CMOS | ||||
| Max. Resolution | 2960 (H) × 1668 (V) | ||||
| ROM | 4 GB | ||||
| RAM | 1 GB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.0009 lux@F1.5 (Color, 30 IRE) 0.0005 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
||||
| S/N Ratio | >56 dB | ||||
| Illumination Distance | Up to 40 m (131.23 ft) (IR) | ||||
| Illuminator On/Off Control | Auto;Zoomprio; Manual | ||||
| Illuminator Number | 3 (IR LED) | ||||
| Angle Adjustment | Pan: 0°–355° Tilt: 0°–65° Rotation: 0°–355° |
||||
| Lens | |||||
| Lens Type | Motorized vari-focal | ||||
| Lens Mount | φ14 | ||||
| Focal Length | 2.7 mm–13.5 mm | ||||
| Max. Aperture | F1.5 | ||||
| Field of View | H: 114°–32°; V: 58°–17°; D: 138°–36° | ||||
| Iris Control | Auto | ||||
| Close Focus Distance | 0.8 m (2.62 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 64.0 m (209.97 ft) | 25.6 m (83.99 ft) | 12.8 m (41.99 ft) | 6.4 m (20.99 ft) | |
| T | 210.0 m (688.98 ft) | 84.0 m (275.89 ft) | 42.0 m (137.80 ft) | 21.0 m (68.90 ft) | |
| DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool. | |||||
| Intelligence | |||||
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection | ||||
| Smart Object Detection | Smart abandoned object; smart missing object | ||||
| SMD | SMD 3.0 | ||||
| AcuPick | Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets. | ||||
| AI SSA | Yes | ||||
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes and 8 expressions; face snapshot set as face, one-inch photo or custom; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. | ||||
| People Counting | Tripwire people counting, generating and exporting report (day/week/month/year); people counting in area and queue management; generating and exporting report (day/week/month); 4 rules can be set for tripwire, people counting in area and queue management. | ||||
| Heat Map | Yes | ||||
| Video Metadata | Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: vehicle type, vehicle color, vehicle logo and other attributes : seatbelt, smoking, calling. Non-motor vehicle attributes: type, color, number of people, top type and color, hat. Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard. |
||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| Smart Sound Detection | Yes | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| AI Coding | AI H.265; AI H.264 | ||||
| Video Frame Rate | Main stream: 2960 × 1668@(1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||
| Stream Capability | 4 streams | ||||
| Resolution | 5M (2960 × 1668); 5M (2880 × 1620); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
| Bit Rate Control | CBR/VBR | ||||
| Video Bit Rate | H.264: 32 kbps–16384 kbps; H.265: 12 kbps–11776 kbps | ||||
| Day/Night | Auto(ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| Scene Self-adaptation (SSA) | Yes | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Image Stabilization | Electronic Image Stabilization (EIS) | ||||
| Defog | Yes | ||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 4M (2688 ×1520) resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 8 areas | ||||
| LDC | Yes | ||||
| Audio | |||||
| Built-in MIC | Yes | ||||
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; external alarm; face detection; video metadata; SMD; people counting in area; stay detection; people counting; people number error detection; queue people number alarm; queue time alarm; security exception; defocus detection | ||||
| Network | |||||
| Network Port | RJ-45 (10/100 Enhancement Base-T) | ||||
| SDK and API | Yes | ||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI | ||||
| User/Host | 20 (Total bandwidth: 80 M) | ||||
| Storage | FTP; SFTP; Micro SD card (support max. 512 GB); NAS | ||||
| Browser | IE: IE 9 and later Chrome: Chrome 102 and later Firefox:Firefox 88 and later | ||||
| Management Software | SmartPSS Lite; DSS; DMSS | ||||
| Mobile Client | iOS; Android | ||||
| Cyber Security | Configuration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification | ||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
||||
| Port | |||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 2 channels in: wet contact, 5mA 3V–5V DC | ||||
| Alarm Output | 1 channel out: wet contact, 300mA 12V DC | ||||
| Power | |||||
| Power Supply | 12 VDC/24 VAC/PoE (802.3af)/ePoE | ||||
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. | ||||
| Power Consumption | Basic: 3.9 W (12 VDC); 4.6 W (24 VAC); 5.6 W (PoE) Max. (H.265+ WDR+ Intelligence on+IR on): 10 W (12 VDC); 11.7 W (24 VAC); 12.1 W (PoE) |
||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Operating Humidity | ≤95% | ||||
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||
| Storage Humidity | 10%–95% (RH), non-condensing | ||||
| Protection | IP67; IK10 | ||||
| Structure | |||||
| Casing Material | Metal | ||||
| Product Dimensions | Φ159.1 mm × 118.1 mm (6.26' × Φ4.65') | ||||
| Net Weight | 0.91 kg (2.01 lb) | ||||
| Gross Weight | 1.22 kg (2.69 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-HDBW5541E-ZE |
