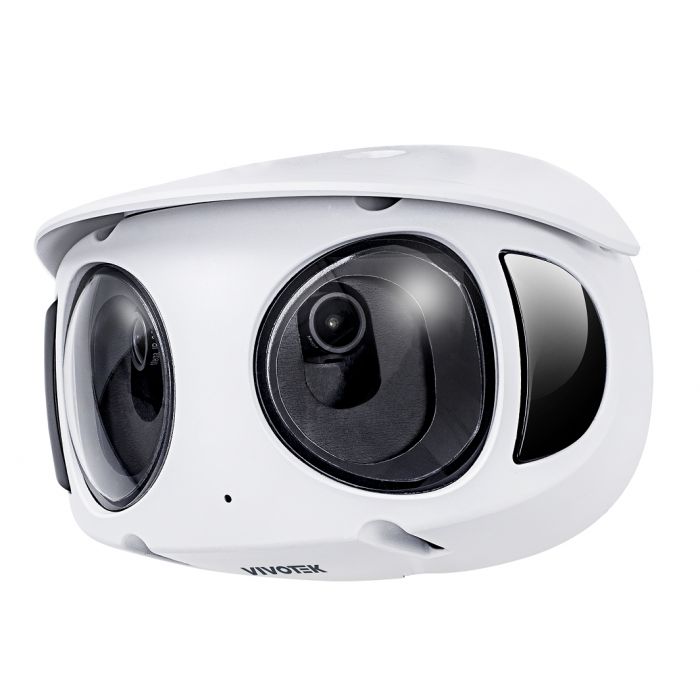

Vivotek MS930-EHV - camara ip vortex premium series panoramica 180º exterior 8 megapixeles, 4k, luz ir 20mts, wdr pro, visión snv, smart motion, microfono integrado, vca, deep search, protección ip66, ik10, ndaa, almacenamiento interno 512gb
Precio especial $20,807.00 IVA incluido + Envio $150 MXN
Antes $24,136.00
Disponible 0 Pzas
Antes $24,136.00
Disponible 0 Pzas
Agotado
pub
MX0000099177
| Informacion tecnica | |
| Video and Audio | |
| Image Sensor | - 1/2.7' Progressive CMOS |
| Resolution | - HD 4864 x 1632 (8MP), SD 2432 x 816 |
| Lens Type | - Fixed-focal |
| Focal Length | - f= 2.8 mm |
| Aperture | - F1.2 |
| Iris | - Fixed iris |
| Field of View | - 180° (Horizontal)/ 50° (Vertical)/ 180° (Diagonal) |
| Camera Movement | - Tilt: 20° |
| Shutter Speed | - 1/30 sec. to 1/32,000 sec. |
| Day/Night | - Yes IR Cut Filter |
| IR Range | - 20 meters |
| Minimum Illumination | - 0.018 lux @ F1.2 (Color), 30IRE <0.01 lux @ F1.2 (B/W) 0 lux with IR illumination on |
| Onboard Storage | - MicroSD/SDHC/SDXC card slot (Bulit-in 512GB industrial SDCard) |
| Standard video settings | Frame Rate |
| Video Streaming Settings | - HD 4864 x 1632 (8MP)@15fps 3Mbps upload SD 2432x 816@15fps 400Kbps upload |
| Standard audio settings | Audio |
| Interface | - Built-in microphone |
| Effective Range | - 5 meters |
| Analytics | |
| Audio detection | - Yes |
| Tampering detection | - Yes |
| People Analytics | - Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Vehicle Analytics | - Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Object Analytics | - Unattended object detection, Missing object detection |
| Power and Network | |
| Power input | - IEEE 802.3at PoE Class 4 |
| Power Consumption | - Max: 20W / 13.5W (IR on/ IR off) |
| Connectivity | - RJ-45 cable connector for 10/100 Mbps PoE network connection |
| RTSP | - WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | - Up to 6 clients *Live viewing for 6 clients *live viewing up to 4 clients and playback 2 clients) |
| Security | - Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface | - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| Hardware and Certification | |
| General | Operating Temperature |
| Humidity | - 90% RH (non-condensing) |
| Certifications | - EMC: CE (EN 55032, EN 55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Warranty | - 60-month |
| Included Accessories | - Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield |
| Mechanical | Weight |
| Dimensions | - 165 x 112 x 97 mm (w/o sunshield) 165 x 100 x 119 mm (w/ sunshield) |
| Body | - Metal |
| Informacion tecnica | |
| Video and Audio | |
| Informacion tecnica | |
| Video and Audio | |
| Image Sensor | - 1/2.7' Progressive CMOS |
| Resolution | - HD 4864 x 1632 (8MP), SD 2432 x 816 |
| Lens Type | - Fixed-focal |
| Focal Length | - f= 2.8 mm |
| Aperture | - F1.2 |
| Iris | - Fixed iris |
| Field of View | - 180° (Horizontal)/ 50° (Vertical)/ 180° (Diagonal) |
| Camera Movement | - Tilt: 20° |
| Shutter Speed | - 1/30 sec. to 1/32,000 sec. |
| Day/Night | - Yes IR Cut Filter |
| IR Range | - 20 meters |
| Minimum Illumination | - 0.018 lux @ F1.2 (Color), 30IRE <0.01 lux @ F1.2 (B/W) 0 lux with IR illumination on |
| Onboard Storage | - MicroSD/SDHC/SDXC card slot (Bulit-in 512GB industrial SDCard) |
| Standard video settings | Frame Rate |
| Video Streaming Settings | - HD 4864 x 1632 (8MP)@15fps 3Mbps upload SD 2432x 816@15fps 400Kbps upload |
| Standard audio settings | Audio |
| Interface | - Built-in microphone |
| Effective Range | - 5 meters |
| Analytics | |
| Audio detection | - Yes |
| Tampering detection | - Yes |
| People Analytics | - Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Vehicle Analytics | - Intrusion detection, Line crossing detection, Loitering detection, Appearance Search, Scene Search, Re-Search |
| Object Analytics | - Unattended object detection, Missing object detection |
| Power and Network | |
| Power input | - IEEE 802.3at PoE Class 4 |
| Power Consumption | - Max: 20W / 13.5W (IR on/ IR off) |
| Connectivity | - RJ-45 cable connector for 10/100 Mbps PoE network connection |
| RTSP | - WebRTC, ARP, DHCP, DNS, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, QoS (CoS/DSCP), RTSP/RTP/RTCP, SSL, TCP/IP, TLS 1.2, UDP |
| Users | - Up to 6 clients *Live viewing for 6 clients *live viewing up to 4 clients and playback 2 clients) |
| Security | - Secure boot Signed firmware HTTPS/TLS encryption Video encryption |
| Interface | - 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| Hardware and Certification | |
| General | Operating Temperature |
| Humidity | - 90% RH (non-condensing) |
| Certifications | - EMC: CE (EN 55032, EN 55024 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020); Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) |
| Warranty | - 60-month |
| Included Accessories | - Quick installation guide, alignment sticker, desiccant bag, screw driver, screws pack, sunshield |
| Mechanical | Weight |
| Dimensions | - 165 x 112 x 97 mm (w/o sunshield) 165 x 100 x 119 mm (w/ sunshield) |
| Body | - Metal |
| Effective Range | - 5 meters |
| Analytics | |
| Object Analytics | - Unattended object detection, Missing object detection |
| Power and Network | |
| Hardware and Certification | |
| Body | - Metal |
| Marca | Vivotek |
|---|---|
| MPN: | MS930-EHV |
