Dahua DH-IPC-HDEW8841R-Z ipc-hdew8841r-z cámara ip wizmind domo antiexplosiva de 8mp/ ir 40 m/ smart h.264+/h.265+, ai h.264/h.265/ detección rostros/ conteo personas/ e&s alarmas y audio/ranura micro sd máx 256g/ ip68 / ik10/ smd 3.0
Precio especial $48,127.00 IVA incluido + Envio $150 MXN
Antes $55,827.00
Disponible 18 Pzas
Antes $55,827.00
Disponible 18 Pzas
sku: DH-IPC-HDEW8841R-Z
pub
MX0000096384
IPC-HDEW8841R-Z

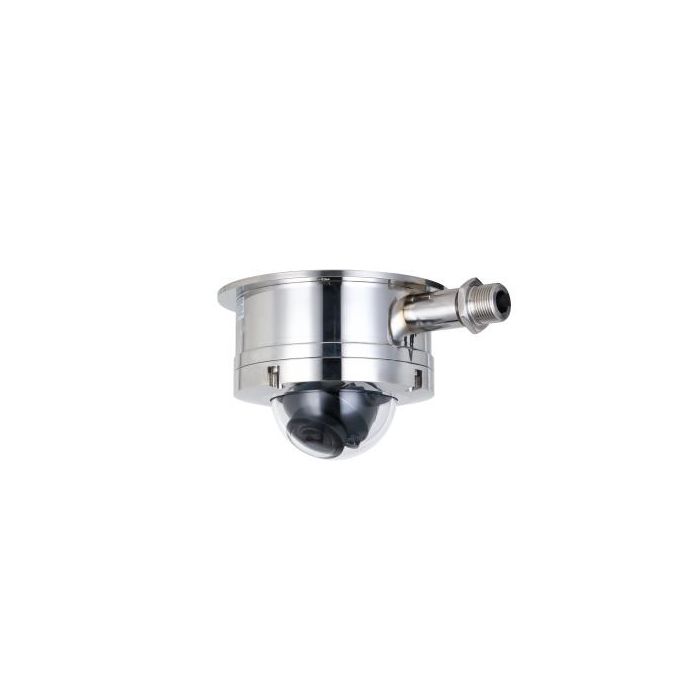

8MP Explosion Proof IR Dome WizMind Network Camera
* The parameters and datasheets below can only be applied to 8841-S2 series.
> 8-MP 1/2.8' CMOS image sensor, low illuminance, high image definition.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Supports the AFSA(Anti-flicker Self-adaption) function, which automatically eliminates flicker.
> Face detection: Track, snapshot, snapshot optimization, optimal face snapshot upload, face enhancement, face exposure, and face attributes.
> People counting: People counting in area, queue management, and entered/exited people counting; generating and exporting report (day/ month/year).
> Intelligent monitoring: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human), abandoned object, missing object, loitering detection, people gathering, parking detection, heat map, and face detection.
> Alarm: 3 in, 2 out; audio: 1 in, 1 out; RS-485; supports max. 256 G Micro SD card.
> 12 VDC/PoE power supply, easy for installation.
> IP68 and IK10 protection.
> Explosion-proof mark II 2 G Ex db IIC T6/T5 Gb; II 2 D Ex tb IIIC T80°C/ T100°C Db.
> 316 stainless steel casing, 2 m cable.
> ATEX and IECEx Certifacation.
> SMD 3.0.
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 128 MB |
| RAM | 1 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.007 lux@F1.5 (Color, 30 IRE) 0.0007 lux@F1.5 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 40 m (131.23 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–355° Tilt: 0°–75° Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Lens Mount | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | H: 109°–30°; V: 56°–17°; D: 131°–35° |
| Iris Control | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Smart Event | |
| IVS | Abandoned object; missing object |
| Intelligence | |
| IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
| SMD 3.0 | Less false alarm, longer detection distance |
| Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face attributes extraction including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
| People Counting | Tripwire people counting, generating and exporting report (day/month/year); people counting in area; queue management; 4 rules can be set for tripwire, people counting in area and queue management. |
| Heat Map | Yes |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Video Frame Rate | Main stream: 3840 × 2160@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728/2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1920 × 960); 720p (1280 × 720); D1(704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–16384 kbps H.265: 32 kbps–16384 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; scene changing; audio detection; voltage detection; defocus detection; external alarm; face detection; SMD; people counting in area; stay detection; people counting; security exception |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Browser | IE; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
| Cyber Security | Configuration encryption; trusted execution; Digest; Security logs; WSSE; account lockout; syslog; Video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B; ATEX: EN 60079-0/EN 60079-1/EN 60079-31 IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31 Certificate: ATEX: TÜV 20 ATEX 8579 X; IECEx: IECEx TUR 20.0059X |
| Port | |
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
| Audio Input | 1 channel (terminal) |
| Audio Output | 1 channel (terminal) |
| Alarm Input | 3 channels in: 5mA 3V–5V DC |
| Alarm Output | 2 channels out: 300 mA 12 VDC |
| Power | |
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 4.0 W (12 VDC); 4.7 W (PoE) Max. (H.265+intelligence on +WDR +IR on + auto focus): 7.3 W (12 VDC); 8.5 W (PoE) |
| Environment | |
| Operating Temperature | T5/T100 °C : –40 °C ≤ Tamb ≤ +60 °C (–40 °F to +140 °F) T6/T80 °C :–40 °C ≤ Tamb ≤ +55 °C (–40 °F to +131 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% |
| Protection | IP68; IK10 |
| Structure | |
| Casing Material | SUS316L (316 stainless steel) |
| Product Dimensions | 219.5 mm × Φ165 mm × 118.2 mm (8.64' × Φ6.50' × 4.65') (L × W × H) |
| Net Weight | 4.5 kg (9.92 lb) |
| Gross Weight | 5.3 kg (11.68 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-HDEW8841R-Z |
