Belden 1018A 00410000 - Type Kx Thermocouple, 1 Pr #16 Sol, Pvc Ins Yel, Red, Os, Yellow Jkt, 300V Pltc Itc Cmg
Precio especial $143,828.00 IVA incluido + Envio $150 MXN
Antes $166,840.00
Disponible 1653 Pzas
Antes $166,840.00
Disponible 1653 Pzas
sku: 1018A 00410000
pub
MX0000109342
1018A 00410000

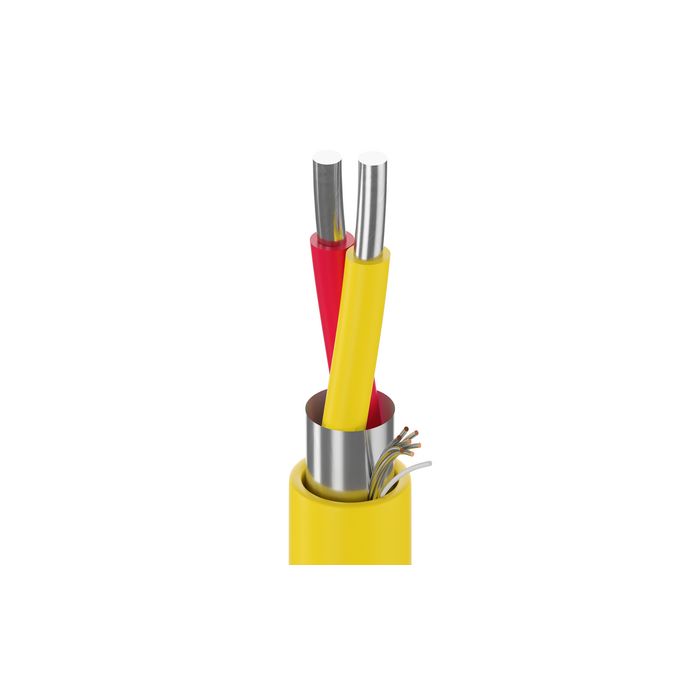

Type KX Thermocouple, 1 Pair 16AWG (Solid) Chromel+Alumel, PVC Insulation Yel, Red Color Code, Overall Beldfoil® Shield, Yellow PVC Outer Jacket, PLTC ITC CMG AWM 2464 SUN RESbr
Product Overview
| Suitable Applications: | Industrial Control, Raceways Cable trays and ducts, Digital Control, Instruments (4-20ma, 0-10v, ...),low voltage digital control (24v, …),Thermocouple, distributed control system (DCS),programmable logic controller (PLC) |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 16 AWG | Solid | Chromel & Alumel |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PVC - Polyvinyl Chloride | 0.021 in (0.53 mm) | 0.093 in (2.4 mm) | Yellow & Red |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 18 AWG (7x26) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter | Ripcord |
|---|---|---|---|
| PVC - Polyvinyl Chloride | 0.037 in (0.94 mm) | 0.264 in (6.71 mm) | Yes |
| Overall Cable Diameter (Nominal): | 0.264 in (6.71 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Shield | Nom. Inductance | Max. Current |
|---|---|---|---|---|---|
| Pair(s) | 141 Ohm/1000ft | 25 pF/ft (82 pF/m) | 51 pF/ft (170 pF/m) | 0.18 µH/ft (0.59 µH/m) | |
| 63 Ohm/1000ft (210 Ohm/km) | 0.18 µH/ft (0.59 µH/m) | 18 Amps per conductor @ 30°C |
Electricals Table Notes:Conductor DCR (Nom): 165 Ohm/1000ft (Chromel), 66 Ohm/1000ft (Alumel)Nom Outer Shield DCR:5.93 Ohm/1000ft (19.5 Ohm/km)
Voltage
| UL Voltage Rating |
|---|
| 300 V (PLTC, CMG, AWM 2464), 150 V (ITC) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -30°C to +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.1 in (79 mm) | 3.1 in (79 mm) |
| Max. Pull Tension: | 83 lbs (38 kg) |
| Bulk Cable Weight: | 38 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, FT4, IEEE 1202 FT4 |
| NEC / UL Compliance: | Article 725, Article 727, Article 800, CMG, ITC, PLTC |
| AWM Compliance: | AWM 2464 |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | ISA MC 96.1-1982 Type KX |
Product Notes
| Notes: | Chromel and Alumel are Hoskins Manufacturing Company trademarks. |
History
| Update and Revision: | Revision Number: 0.613 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 1018A 0041000 | Yellow | Reel | 1,000 ft | 612825103837 | C |
| 1018A 0045000 | Yellow | Reel | 5,000 ft | 612825103851 | C |
| 1018A 00410000 | Yellow | Reel | 10,000 ft | 612825103844 | C Z |
| Marca | Belden |
|---|---|
| MPN: | 1018A 00410000 |
