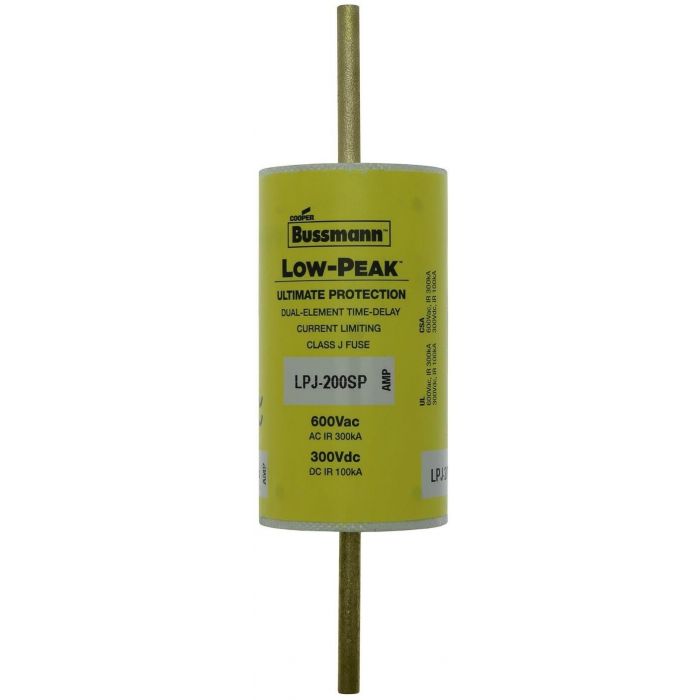

Bussmann LPJ-200SP Eaton Series Class J Fuse, Lpj, Time-Delay, Dual-Element Current Limiting 200 A, Non-Idicating Interrupting Rating Of 300 Ka At 600 Vac And 100 Vdc
Precio especial $17,341.00 IVA incluido + Envio $150 MXN
Antes $20,116.00
Disponible 2 Pzas
Antes $20,116.00
Disponible 2 Pzas
sku: LPJ-200SP
pub
MX0000109338
LPJ-200SP
| General Specifications | |
|---|---|
| Product Name |
Eaton Bussmann series LPJ fuse
|
| Catalog Number |
LPJ-200SP
|
| UPC |
051712523455
|
| Product Length/Depth |
5.75 in
|
| Product Height |
1.5 in
|
| Product Width |
1.5 in
|
| Product Weight |
0.75 lb
|
| Warranty |
Not Applicable
|
| Compliances |
CE Marked
RoHS Compliant |
| Product Type |
Fuse
|
| Especificaciones del producto | |
| Amperage Rating |
200 A
|
| Interrupt rating |
300 kAIC at 600 Vac
100 kAIC Vdc |
| Response time |
10 sec at 500%
|
| Voltage rating |
600 Vac, 300 Vdc
|
| Especificaciones del producto | |
| Fuse type |
Time delay
Current-limiting |
| Number of elements |
Dual
|
| Packaging type |
Standard
|
| Especificaciones del producto | |
| Class |
Class J
|
| Connection |
Bolted blade end x bolted blade end
|
| Fuse indicator |
Non-indicating
|
| Special features |
Non-indicating, High in-rush current motor protection
|
| Marca | Otros |
|---|---|
| MPN: | LPJ-200SP |
