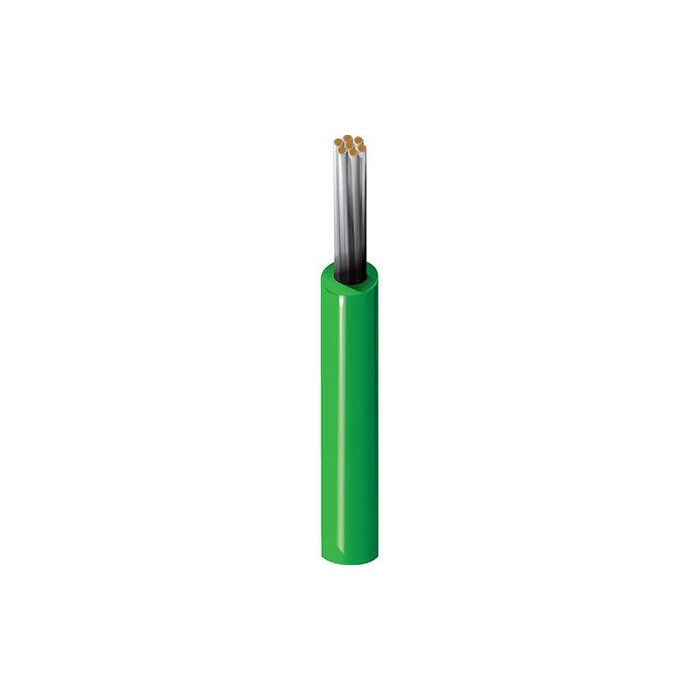

Belden 9919 0101000 - Lead Wire, #20 Str Tc, Pvc Ins, Awm 1007 1569 / 1000Ft
Precio especial $23,598.00 IVA incluido + Envio $150 MXN
Antes $27,374.00
Disponible 672 Pzas
Antes $27,374.00
Disponible 672 Pzas
sku: 9919 0101000
pub
MX0000109285
9919 0101000
Low Temp Plastic Lead Wire, 20AWG (7x28) Tinned Copper, PVC Insulation, AWM 1007 AWM 1569 CSA TYPE TR-64 TRSR-64br
Product Overview
| Suitable Applications: | inter-connection circuits, internal wiring of computer and electronic equipments, internal wiring of appliances |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 20 AWG | 7x28 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.016 in (0.41 mm) | 0.069 in (1.8 mm) |
| Overall Cable Diameter (Nominal): | 0.069 in (1.8 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 11.2 Ohm/1000ft | Single conductor in free air @ 30ºC: 11 A |
Voltage
| UL Voltage Rating |
|---|
| 300 V RMS |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 105°C | -25°C To +105°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 0.69 in (18 mm) | 0.69 in (18 mm) |
| Max. Pull Tension: | 13 lbs (5.9 kg) |
| Bulk Cable Weight: | 5 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | VW-1 |
| AWM Compliance: | AWM 1007, AWM 1569 |
| CEC / C(UL) Compliance: | TRSR-64 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
History
| Update and Revision: | Revision Number: 0.489 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 9919 010100 | Black | Reel | 100 ft | 612825262695 | |
| 9919 0101000 | Black | Reel | 1,000 ft | 612825262701 | P |
| 9919 013100 | Blue, Dark | Reel | 100 ft | 612825262718 | |
| 9919 0131000 | Blue, Dark | Reel | 1,000 ft | 612825262725 | P |
| 9919 001100 | Brown | Reel | 100 ft | 612825262558 | |
| 9919 0011000 | Brown | Reel | 1,000 ft | 612825262565 | P |
| 9919 0081000 | Gray | Reel | 1,000 ft | 612825262664 | P |
| 9919 005100 | Green, Dark | Reel | 100 ft | 612825262626 | |
| 9919 0051000 | Green, Dark | Reel | 1,000 ft | 612825262633 | P |
| 9919 0031000 | Orange | Reel | 1,000 ft | 612825262596 | P |
| 9919 002100 | Red | Reel | 100 ft | 612825262572 | |
| 9919 0021000 | Red | Reel | 1,000 ft | 612825262589 | P |
| 9919 007100 | Violet | Reel | 100 ft | 612825262640 | |
| 9919 0071000 | Violet | Reel | 1,000 ft | 612825262657 | P |
| 9919 009100 | White | Reel | 100 ft | 612825262671 | |
| 9919 0091000 | White | Reel | 1,000 ft | 612825262688 | P |
| 9919 004100 | Yellow | Reel | 100 ft | 612825262602 | |
| 9919 0041000 | Yellow | Reel | 1,000 ft | 612825262619 | P |
| Marca | Belden |
|---|---|
| MPN: | 9919 0101000 |
