Belden 3079E B021000 - Profibus, 1 Pr #22 Str Bc, Pe Ins, Os+Tc Brd, Pvc Jkt, Pltc Cmg Profibus Dp
Precio especial $137,907.00 IVA incluido + Envio $150 MXN
Antes $159,972.00
Disponible 2624 Pzas
Antes $159,972.00
Disponible 2624 Pzas
sku: 3079E B021000
pub
MX0000109282
3079E B021000

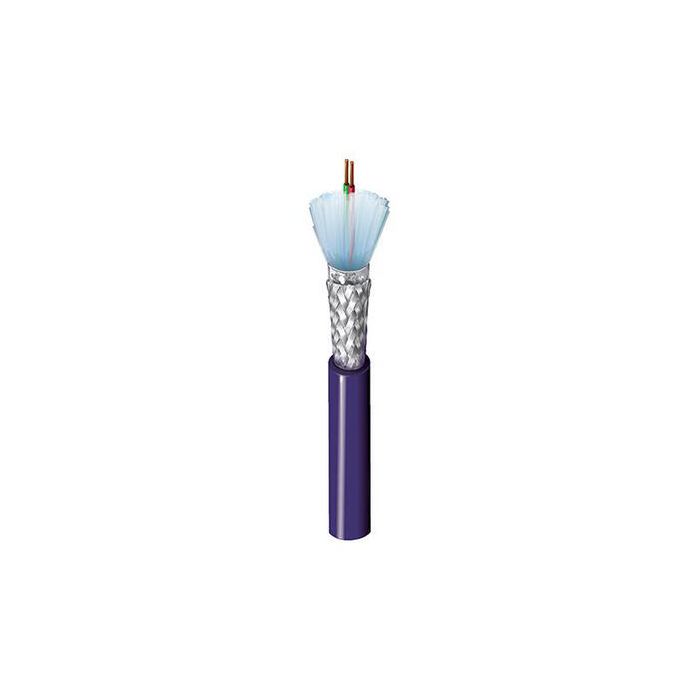

Profibus, 1 Pair 22AWG (7x30) Bare Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, PLTC CMG SUN RES Profibus DPbr
Product Overview
| Suitable Applications: | harsh environment, outdoors, data transmission applications such as Profibus DP or PA, Instrumentation and computer cable, etc. exposure to temperature extremes, humidity/moisture, dust, and oil. |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 1 | 22 AWG | 7x30 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Pair(s) | PE - Polyethylene (Foam) | 0.035 in (0.89 mm) | 0.102 in (2.59 mm) | Red & Green | Flame Retardant, Foam w/ skin |
Outer Shield
| Shield Type | Material | Coverage |
|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% |
| Braid | Tinned Copper (TC) | 65% |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.043 in (1.1 mm) | 0.314 in (7.98 mm) |
| Outer Jacket1 Table Notes: | Jacket OD +/- 0.007 |
| Overall Cable Diameter (Nominal): | 0.314 in (7.98 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|
| Pair(s) | 17.6 Ohm/1000ft | 150 Ohm | 0.267 µH/ft (0.876 µH/m) | 78% | 6 Amps per Conductor at 30ºC |
Nom Outer Shield DCR:6.32 Ohm/1000ft (20.7 Ohm/km)
High Frequency (Nominal/Typical)
| Element |
|---|
| Pair(s) |
Voltage
| UL Voltage Rating |
|---|
| 300 V (CMG, PLTC) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +75°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 3.768 in (95.71 mm) | 3.768 in (95.71 mm) |
| Max. Pull Tension: | 41 lbs (19 kg) |
| Bulk Cable Weight: | 39 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 800, CMG, PLTC |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
History
| Update and Revision: | Revision Number: 0.564 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 3079E B021000 | Purple | Reel | 1,000 ft | 612825140412 | C |
| 3079E B025000 | Purple | Reel | 5,000 ft | 612825140443 | C Z |
| Marca | Belden |
|---|---|
| MPN: | 3079E B021000 |
