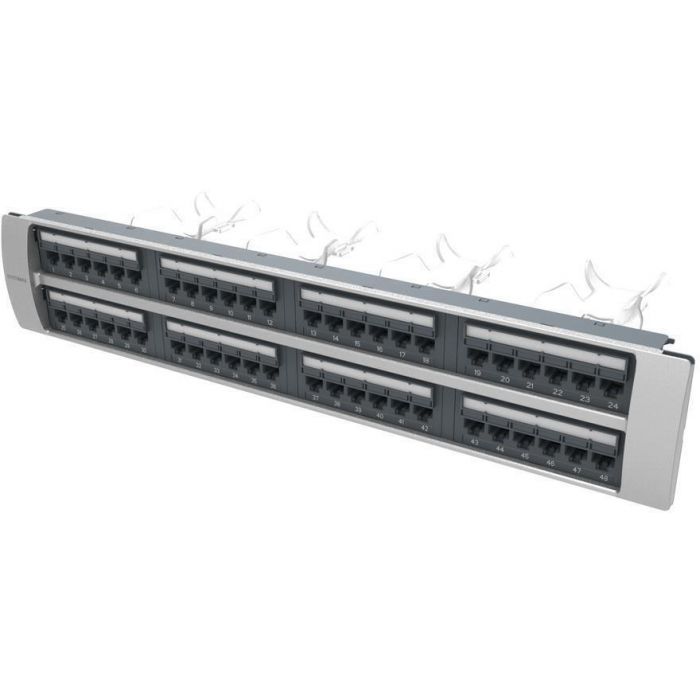

Commscope 760152595 | 360-IPR-1100-E-GS6-2U-48 Systimax 360 Gigaspeed X10d 1100Gs6 Evolve Category 6A U/Utp Patch Panel, 48 Port

Precio especial $37,211.00 IVA incluido + Envio $150 MXN
Antes $43,165.00
Disponible 2 Pzas
sku: 760152595
pub
MX0000109271
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

760152595
760152595 | 360-IPR-1100-E-GS6-2U-48
SYSTIMAX 360 GigaSPEED X10D® 1100GS6 Evolve Category 6A U/UTP Patch Panel, 48 port

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type RJ45 patch panel
Product Brand GigaSPEED X10D® | SYSTIMAX 360™
Product Series NA

General Specifications

ANSI/TIA Category 6A
Cable Type Unshielded
Color Silver
Conductor Type Solid | Stranded
Intelligence Type iPatch® ready
Modules, quantity 8
Panel Style Flat
Rack Type EIA 19 in
Rack Units 2
Termination Type IDC
Total Ports, quantity 48
Transmission Standards ANSI/TIA-568.2-D | ISO/IEC 11801 Class EA
Wiring T568A | T568B

Dimensions

Height 88.1 mm | 3.469 in
Width 482.6 mm | 19 in
Depth, with cable management 172.4 mm | 6.787 in

Electrical Specifications

Current Rating at Temperature 1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, contact-to-contact 1,000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

Contact Plating Material Precious metals
Material Type High-impact, flame retardant, thermoplastic | Powder-coated steel
Termination Contact Plating Nickel

Mechanical Specifications

Plug Insertion Life, minimum 750 times
Plug Insertion Life, test plug IEC 60603-7 compliant plug
Plug Retention Force, minimum 133 N | 29.9 lbf

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0

Packaging and Weights

Packaging Material Eco-friendly, single-use plastics-free
Packaging quantity 1
Weight, net 1.814 kg | 4 lb

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
REACH-SVHC Compliant as per SVHC revision on www.commscope.com/ProductCompliance
ROHS Compliant
UK-ROHS Compliant
Más información
MarcaOtros
MPN:760152595
