Commscope 760201145 | 360-IP-1100-E-GS6-1U-24 Systimax 360 Ipatch 1100Gs6 Evolve U/Utp Patch Panel, 24 Port

Precio especial $14,994.00 IVA incluido + Envio $150 MXN
Antes $17,393.00
Disponible 17 Pzas
sku: 760201145
pub
MX0000109245
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

760201145
760201145 | 360-iP-1100-E-GS6-1U-24

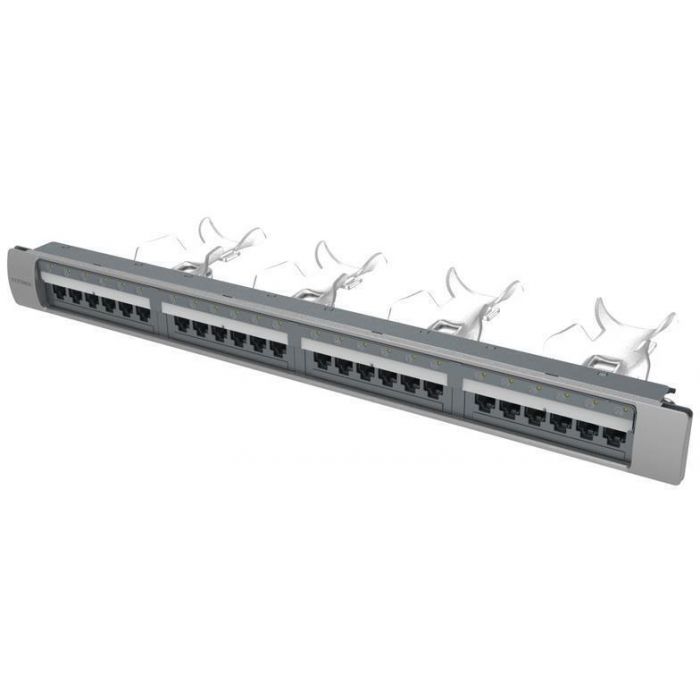

SYSTIMAX 360 iPatch® 1100GS6 Evolve U/UTP Patch Panel, 24 port

Product classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Portfolio SYSTIMAX®
Product Type RJ45 patch panel
Product Brand iPatch® | SYSTIMAX 360™
Product Series NA

General Specifications

ANSI/TIA Category 6A
Cable Type Unshielded
Color Silver
Conductor Type Solid | Stranded
Intelligence Type iPatch® enabled
Panel Style Flat
Rack Type EIA 19 in
Rack Units 1
Total Ports, quantity 24
Wiring T568A | T568B

Dimensions

Height 44.6 mm | 1.756 in
Width 482.6 mm | 19 in
Depth 206.5 mm | 8.13 in
Depth, with cable management 169.8 mm | 6.685 in

Electrical Specifications

Current Rating at Temperature 1.5 A @ 20 °C | 1.5 A @ 68 °F
Dielectric Withstand Voltage, RMS, contact-to-contact 1,000 Vac @ 60 Hz
Insulation Resistance, minimum 500 MOhm
Remote Powering Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Mechanical Specifications

Plug Insertion Life, minimum 750 times

Environmental Specifications

Operating Temperature -10 °C to +60 °C (+14 °F to +140 °F)
Storage Temperature -40 °C to +70 °C (-40 °F to +158 °F)
Relative Humidity Up to 95%, non-condensing
Flammability Rating UL 94 V-0
Safety Standard UL | cUL

Packaging and Weights

Packaging quantity 1

Regulatory Compliance/Certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
Más información
MarcaOtros
MPN:760201145
