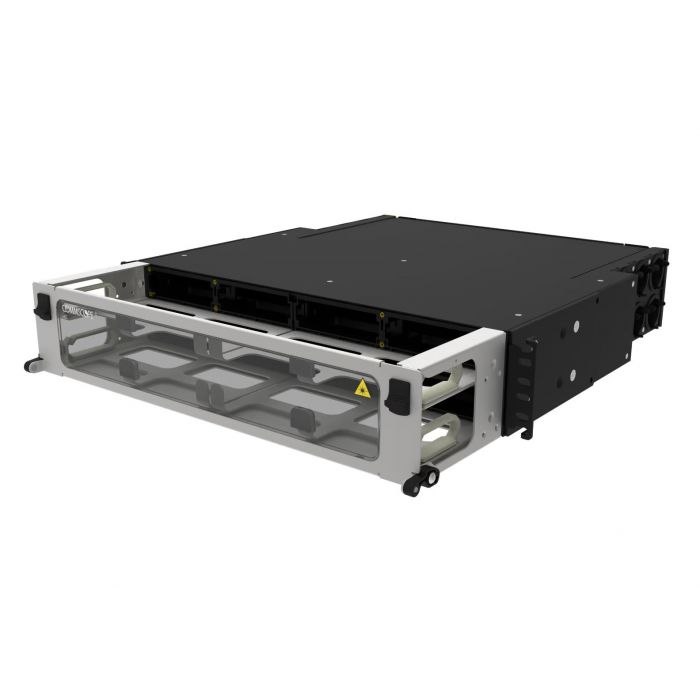

Commscope 760209957 | HD-2U High Density 2U Modular Cassette Sliding Panel, Accepts (8) G2 Modules Or Mpo Panels, Providing Up To 96 Duplex Lc Ports 64
Precio especial $15,486.00 IVA incluido + Envio $150 MXN
Antes $17,964.00
Disponible 4 Pzas
Antes $17,964.00
Disponible 4 Pzas
sku: 760209957
pub
MX0000109228
760209957
760209957 | HD-2U
High Density 2U modular cassette sliding Panel, accepts (8) G2 modules or MPO panels, providing up to 96 duplex LC ports or up to 64 MPO ports
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Portfolio | CommScope® |
| Product Type | Fiber patch panel |
| Product Series | HD |
General Specifications
| Application | Accepts eight G2 modular cassettes |
| Color | Black + Silver gray (front) |
| Intelligence Type | iPatch® ready |
| Interface, front | Unloaded |
| Rack Type | EIA 19 in |
| Rack Units | 2 |
| Shelf Movement | Sliding |
| Total Ports, quantity | 0 |
Dimensions
| Height | 88.9 mm | 3.5 in |
| Width | 482.6 mm | 19 in |
| Depth | 549.91 mm | 21.65 in |
Material Specifications
| Material Type | Steel |
Environmental Specifications
| Flammability Rating | UL 94 V-0 |
| Safety Standard | UL 1863 |
Packaging and Weights
| Packaging quantity | 1 |
| Weight, net | 7.711 kg | 17 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
| CHINA-ROHS | Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| Marca | Otros |
|---|---|
| MPN: | 760209957 |
