Panduit PLWP1M-D Pan-Ty Locking Wing Push Mount Cable Tie
Precio especial $9,618.00 IVA incluido + Envio $150 MXN
Antes $11,157.00
Disponible 120000 Pzas
Antes $11,157.00
Disponible 120000 Pzas
sku: PLWP1M-D
pub
MX0000109189
PLWP1M-D
No more loose or rattling cables with our locking wing mount push tie. This tie locks into place in any hole and provides a secure, stable connection while handling UV exposure and heat.

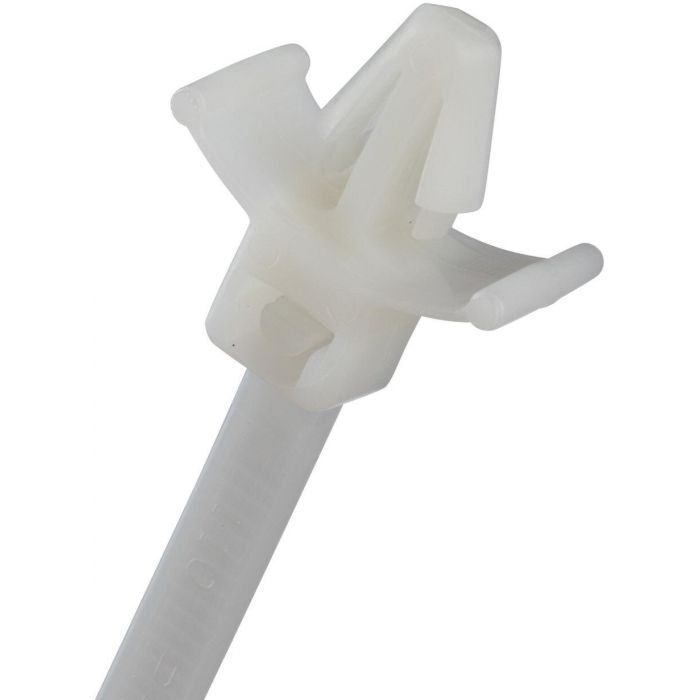

Pan-Ty Locking Wing Push Mount Cable Tie
Pan-Ty PLWP1M-D Wing Push Mount Cable Tie, PA6.6, 4.3L, 18lb, PK500
Especificaciones
| Material Description | Nylon 6.6 |
| Product Type | Premium Cable Tie |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4.3 |
| Overall Length (mm) | 109 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.044 |
| Body Thickness (mm) | 1.1 |
| Maximum Bundle Diameter (In.) | 0.87 |
| Maximum Bundle Diameter (mm) | 22.1 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL Compliant 62275, UL Listed #E56854, UL Recognized #E56854, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | Cable tie, mount and fastener in a single part. Used to attach bundles to another surface. Anchor is easily pressed into a preformed hole and locks in place. |
Detalles del empaque
| UPC | 07498354306 |
| Std. Pkg. Qty. | 500 |
| Std. Pkg. Volume (cf) | 0.1006 |
| Std. Ctn. Qty. | 5000 |
| Std. Ctn. Volume (cf) | 1.0061 |
| Marca | Panduit |
|---|---|
| MPN: | PLWP1M-D |
