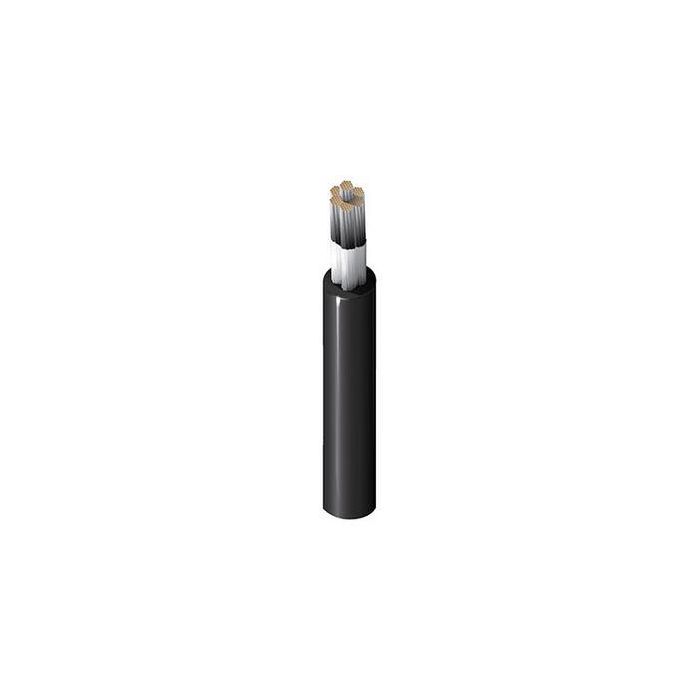

Belden 37540 010500 Hook-Up Wire, 1 Conductor, 4/0 Awg, 805X26 Strands, Tinned Copper, Epdm Insulation
Precio especial $1,870,581.00 IVA incluido + Envio $150 MXN
Antes $2,169,874.00
Disponible 2000 Pzas
Antes $2,169,874.00
Disponible 2000 Pzas
sku: 37540 010500
pub
MX0000109180
37540 010500
Rubber Lead Wire, 4/0AWG (805x26) Tinned Copper, EPDM Insulation, AWM 3499 7500V 150Cbr
Product Overview
| Suitable Applications: | internal wiring of appliances and ballast leads |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 4/0 AWG | 805x26 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| EPDM - Ethylene Propylene Diene Monomer | 0.129 in (3.28 mm) | 0.909 in (23.1 mm) |
| Overall Cable Diameter (Nominal): | 0.909 in (23.1 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 0.0574 Ohm/1000ft | 531.2 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 7500 V (AWM 3499) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 150°C | -55°C To +150°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 9.09 in (231 mm) | 9.09 in (231 mm) |
| Max. Pull Tension: | 2648 lbs (1201 kg) |
| Bulk Cable Weight: | 890 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | Horizontal flame |
| AWM Compliance: | AWM 3499 |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes: | Exact strand count may vary. |
History
| Update and Revision: | Revision Number: 0.494 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 37540 01050 | Black | Reel | 50 ft | 612825147428 | C |
| 37540 010250 | Black | Reel | 250 ft | 612825147411 | C F |
| 37540 010500 | Black | Reel | 500 ft | 612825147435 | C F |
| Marca | Belden |
|---|---|
| MPN: | 37540 010500 |
