Belden 31514 0024000 - Lead Wire, #14 Str Tc, Neoprene Ins, Awm 3046
Precio especial $40,328.00 IVA incluido + Envio $150 MXN
Antes $46,780.00
Disponible 4496 Pzas
Antes $46,780.00
Disponible 4496 Pzas
sku: 31514 0024000
pub
MX0000109177
31514 0024000

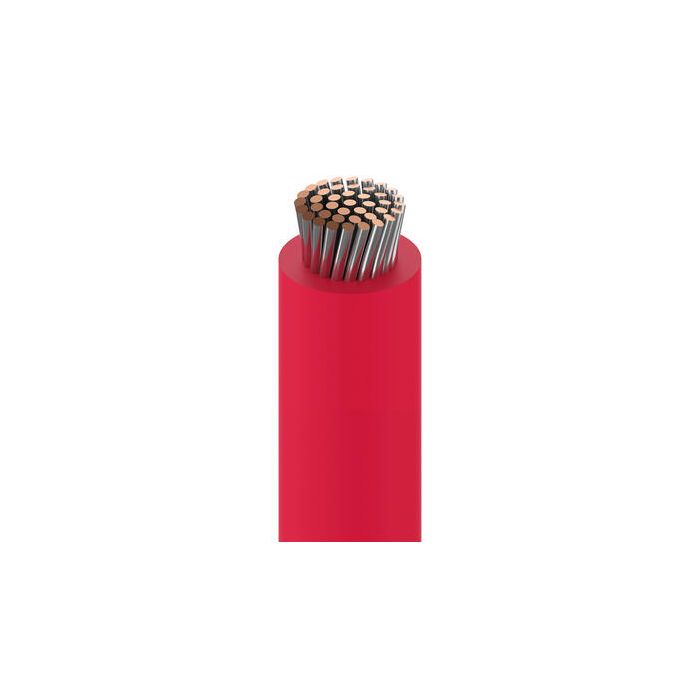

Low Temp Rubber Lead Wire, 14AWG (41x30) Tinned Copper, Neoprene Insulation, AWM 3046 CSA TYPE CL903600V 90Cbr
Product Overview
| Suitable Applications: | internal wiring of appliances, oil resistance applications, motor lead systems |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Conductor(s) | 1 | 14 AWG | 41x30 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter |
|---|---|---|
| Neoprene | 0.047 in (1.2 mm) | 0.169 in (4.29 mm) |
| Overall Cable Diameter (Nominal): | 0.169 in (4.29 mm) |
Electrical Characteristics
Electricals
| Nom. Conductor DCR | Max. Current |
|---|---|
| 2.82 Ohm/1000ft | 40 Amps per Conductor at 30ºC |
Voltage
| UL Voltage Rating |
|---|
| 600 V (AWM 3046) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 90°C | -30°C To +90°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 1.69 in (42.9 mm) | 1.69 in (42.9 mm) |
| Max. Pull Tension: | 53.3 lbs (24.2 kg) |
| Bulk Cable Weight: | 26 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor |
| Sustainability: | CA Prop 65 |
| Flammability / Reaction to Fire: | Horizontal flame |
| AWM Compliance: | AWM 3046 |
| CEC / C(UL) Compliance: | CL-903 |
| European Directive Compliance: | EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
Product Notes
| Notes: | Recommended Maximum Baking Cycles: 24 Hours @ 300°F (149°C) ~ 8 Hours @ 325°F (163°C) ~ 15 Minutes @ 450°F (232°C) |
History
| Update and Revision: | Revision Number: 0.481 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 31514 010500 | Black | Reel | 500 ft | 612825142256 | F |
| 31514 0104000 | Black | Reel | 4,000 ft | 612825142249 | C I U |
| 31514 005500 | Green, Dark | Reel | 500 ft | 612825142225 | F |
| 31514 0024000 | Red | Reel | 4,000 ft | 612825142201 | C I U |
| 31514 009500 | White | Reel | 500 ft | 612825142232 | F |
| 31514 0044000 | Yellow | Reel | 4,000 ft | 612825142218 | C I U |
| Marca | Belden |
|---|---|
| MPN: | 31514 0024000 |
