Belden 3082A T5U2000 - Devicebus, 2 Pr #15+18 Str Tc, Pvc+Fpe Ins, Is+Oa Tc Brd, Pvc Jkt, Cmg Pltc-Er
Precio especial $260,748.00 IVA incluido + Envio $150 MXN
Antes $302,468.00
Disponible 18376 Pzas
Antes $302,468.00
Disponible 18376 Pzas
sku: 3082A T5U2000
pub
MX0000109164
3082A T5U2000

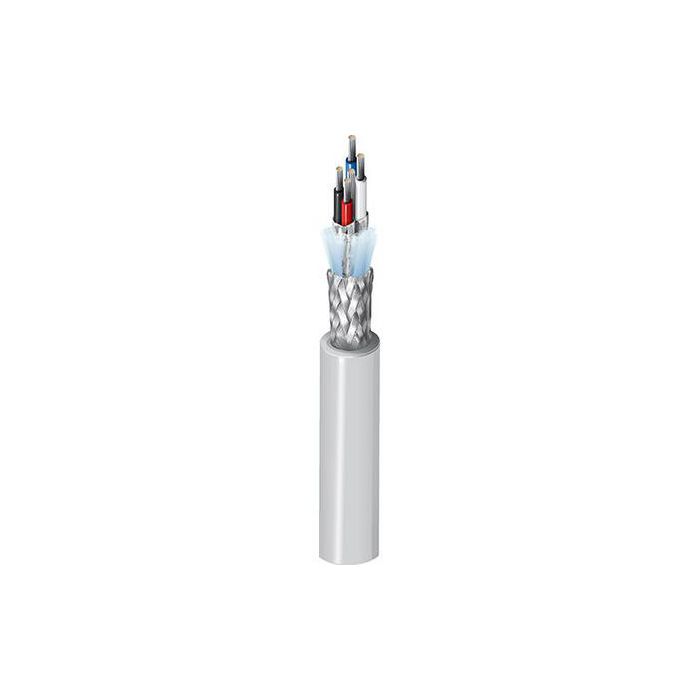

DeviceBus® for ODVA DeviceNet™, 2 Pair 15+18AWG (19x27+19x30) Tinned Copper, PVC+Foam PE Insulation, Individual Beldfoil® & OA Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CMG PLTC-ERbr
Product Overview
| Suitable Applications: | harsh environment, ODVA device-level communication, used with CIP (common Industrial Protocol) for control, configuration, and data collection between devices, such as sensors and actuators, and higher level devices such as PLC, and PC in industrial automation, bus topology, etc. |
Construction Details
Conductor
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Power Pair(s) | 1 | 15 AWG | 19x27 | TC - Tinned Copper |
| Data Pair(s) | 1 | 18 AWG | 19x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
|---|---|---|---|---|---|
| Power Pair(s) | PVC - Polyvinyl Chloride | 0.021 in (0.53 mm) | 0.109 in (2.77 mm) | Red & Black | |
| Data Pair(s) | PE - Polyethylene (Foam) | 0.053 in (1.3 mm) | 0.150 in (3.81 mm) | Blue & White | HDPE |
Inner Shield
| Element | Shield Type | Material | Coverage |
|---|---|---|---|
| Power Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
| Data Pair(s) | Tape | Bi-Laminate (Alum+Poly) | 100% |
Outer Shield
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Braid | Tinned Copper (TC) | 65% | 18 AWG (19x30) TC |
Outer Jacket
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.060 in (1.5 mm) | 0.480 in (12.2 mm) |
| Outer Jacket1 Table Notes: | Jacket OD +/- 0.010 |
| Overall Cable Diameter (Nominal): | 0.480 in (12.2 mm) |
Electrical Characteristics
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Characteristic Impedence | Nom. Delay | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|---|---|
| Power Pair(s) | 3.58 Ohm/1000ft | 5.75 Ohm/1000ft (18.9 Ohm/km) | 0.174 µH/ft (0.571 µH/m) | 16 Amps per Conductor at 30ºC | ||||
| Data Pair(s) | 7.2 Ohm/1000ft (24 Ohm/km) | 3.58 Ohm/1000ft (11.7 Ohm/km) | 12 pF/ft (39 pF/m) | 120 Ohm | 1.36 ns/ft | 75% | 14 Amps per Conductor at 30ºC |
Nom Outer Shield DCR:7.29 Ohm/1000ft (23.9 Ohm/km)
Voltage
| UL Voltage Rating | Voltage Rating |
|---|---|
| 300 V (CMG, PLTC-ER), 600 V (AWM 20201) | 300 V (AWM I/II A) |
Mechanical Characteristics
Temperature
| UL Temperature | Operating |
|---|---|
| 60°C | -20°C to +60°C |
Bend Radius
| Stationary Min. | Installation Min. |
|---|---|
| 5.76 in (146 mm) | 5.76 in (146 mm) |
| Max. Pull Tension: | 192.6 lbs (87.36 kg) |
| Bulk Cable Weight: | 128 lbs/1000ft |
Standards and Compliance
| Environmental Suitability: | Indoor, Outdoor, Sunlight Resistance, Oil Resistance |
| Flammability / Reaction to Fire: | UL 1685 FT4 Loading, IEEE 1202 FT4, IEC 60332-1-2 |
| CPR Compliance: | CPR Euroclass: Eca |
| NEC / UL Compliance: | Article 725, Article 800, CMG, PLTC |
| AWM Compliance: | AWM 20201, AWM I/II A |
| CEC / C(UL) Compliance: | CMG |
| European Directive Compliance: | EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE) |
| UK Regulation Compliance: | UKCA Mark |
| APAC Compliance: | China RoHS II (GB/T 26572-2011) |
| Other Standard Compliance(s): | ODVA Class 2 Thick |
Product Notes
| Notes: | Thick. Meter marks on jacket to aid users in installation. ODVA DeviceNet is an Open DeviceNet Vendor Associatio, Inc. Trademark. Jacket printed ''1PR16'' instead of ''1PR15'' due to UL requirements for CMG Listing. |
History
| Update and Revision: | Revision Number: 0.606 Revision Date: 09-07-2025 |
Part Numbers
Variants
| Item # | Color | Putup Type | Length | UPC | Footnote |
|---|---|---|---|---|---|
| 3082A T5U500 | Gray T5U | Reel | 500 ft | 612825140788 | C |
| 3082A T5U2000 | Gray T5U | Reel | 2,000 ft | 612825140764 | C |
| 3082A T5U3000 | Gray T5U | Reel | 3,000 ft | 612825140771 |
| Marca | Belden |
|---|---|
| MPN: | 3082A T5U2000 |
