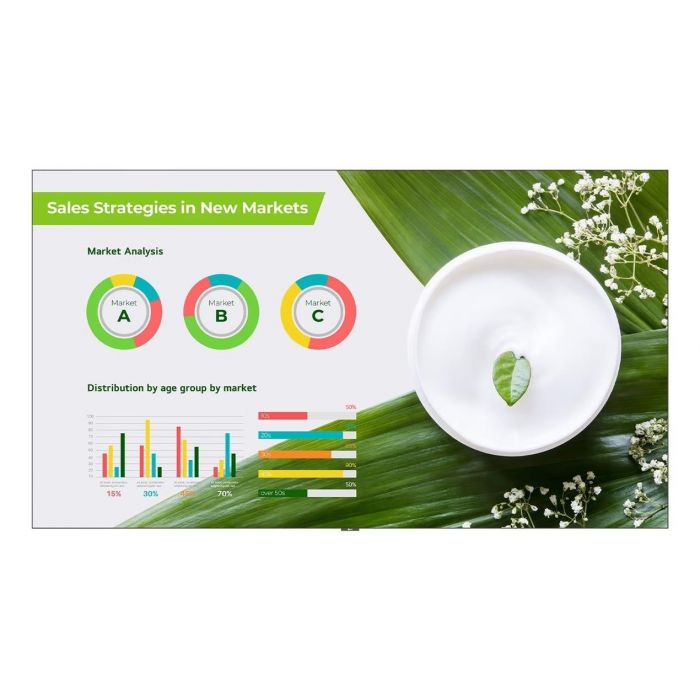

Lg LAPA136 Pantalla Pixel Pitch Led 1.56 Mm Smd Configuracion De 136? Full Hd 1.920 × 1.080 500 Nits Cont 3.000:1 Hdr10, Hdr10 Pro, Hdmi (3), Dp (1), Usb, Lan, Entrada/Salida Rs-232C, Ir, Audio Digit
Precio especial $480,069.00 IVA incluido + Envio $150 MXN
Antes $556,880.00
Disponible 0 Pzas
Antes $556,880.00
Disponible 0 Pzas
Agotado
pub
MX0000108791
LAPA136
Key Feature
- Screen Size : 136'
- Pixel Pitch : 1.56 mm
- Brightness : 500 nit (Max., after calibration)
- Screen Resolution : 1,920 × 1,080
Physical Parameter
| Pixel Pitch (mm) | 1.56 |
|---|---|
| Module Resolution (W x H) | 192 × 108 |
| Module Dimensions (W x H, mm) | 300 × 168.75 |
| Screen Resolution (WxH) | 1,920 × 1,080 |
| Screen Dimension (W x H x D,mm) | 3,005 × 1,692.5 X 29.95 (Thickest 59.5) |
| Screen Weight (kg) | 108.5 |
| No. of Modules per Screen (W x H) | 10×10 (Total 100) |
| Screen Surface Area (?) | 5.06 |
| Physical Pixel Density (pixels/m²) | 409,600 |
| Flatness of Cabinet | ±0.15 |
| Cabinet Material | Aluminum |
| Service Access | Front |
Optical Specifications
| Brightness (After Calibration) | 500 (Typ.) |
|---|---|
| Color Temperature (K) | 3,200-9,300 |
| Visual Viewing Angle (Horizontal/Vertical) | 150 / 150 |
| Brightness Uniformity | 98% |
| Color Uniformity | ±0.015 Cx, Cy |
| Contrast Ratio | 3,000 : 1 |
| Processing Depth (bit) | 16 (HDR10, HDR10 Pro) |
Electrical Specifications
| Power Consumption (W/Screen, Max.) | 1,300 |
|---|---|
| Power Consumption (W/Screen, Avg.) | 650 |
| Power Consumption (W/m², Max.) | 260 |
| Heat Dissipation (BTU/h/Screen, Max.) | 4,436 |
| Heat Dissipation (BTU/h/Screen, Avg.) | 2,218 |
| Heat Dissipation (BTU/h/?, Max.) | 888 |
| Power Supply (V) | 100 to 240 |
| Frame Rate (Hz) | 50 / 60 |
| Refresh Rate (Hz) | 3,840 |
Operation Conditions
| Lifetime (Hours to Half Brightness) | 100,000 |
|---|---|
| Operating Temperature (°C) | 0 to +40 |
| Operating Humidity | 10-90% RH |
| IP rating Front / Rear | IP30 / IP30 |
Sound
| Speaker | Built-in (9 W + 9 W) |
|---|
Certification
| Certification | CE, FCC, ETL, CB, CE-RED EMC Class A |
|---|---|
| Fire Protection | BS476 : Part7 Class 1, EN13501-1 (Class C-s2,d0) (TBD) |
Environment
| Environment | RoHS, REACH |
|---|
Controller
| Controller | Embedded (webOS) |
|---|
I/O port
| I/O port | HDMI(3), DP(1), USB, LAN, RS232C In/Out, IR, Digital Audio Out (1, SPDIF Optical) |
|---|
Wi-Fi / BT
| Yes / No |
ETC
| IR Remote(In-box), Magic Remote : Not Supported Side by Side : Yes (1xN) HDCP 2.2 Crestron Connected |
| Marca | Lg |
|---|---|
| MPN: | LAPA136 |
