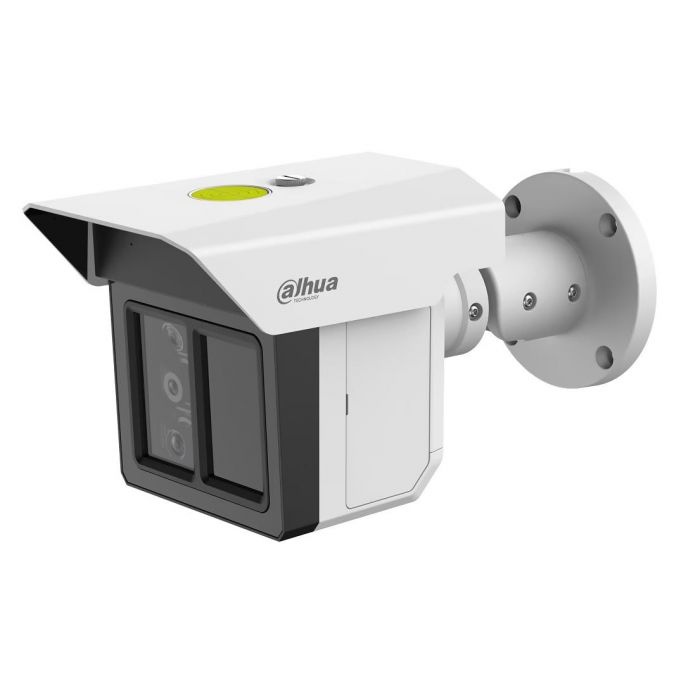

Dahua DH-IPC-MFW5241T2-E3-ASE - Cámara De Seguridad Triple Lente 2Mp Wizmind, Ideal Para Protección Perimetral Largo Alcance. Ofrece Detección Humanos Y Vehículos A 100M, Visión Ir Tecnología Epoe, Resistencia Ip67/Ik10.
Precio especial $7,802.00 IVA incluido + Envio $150 MXN
Antes $9,050.00
Disponible 62 Pzas
Antes $9,050.00
Disponible 62 Pzas
sku: DH-IPC-MFW5241T2-E3-ASE
pub
MX0000108769
IPC-MFW5241T2-E3-ASE
3 × 2 MP Triple-Sight Perimeter Protection Bullet WizMind Network Camera
> 3 × 2MP 1/2.8' CMOS image sensor, low luminance, and high definition image.
> Outputs max. 2 MP (1920 × 1080)@25 fps through channel1-3.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in 8 IR LEDs, and the max. illumination distance is up to 100 m.
> Supports long-range perimeter protection. The camera can detect humans and vehicles up to 100 m away and more.
> WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports Perimeter Protection, including Intrusion and tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 2 in, 2 out; audio: 1 in, 1 out; supports max. 1TB Micro SD card; built-in dual Mic and speaker, supports two-way talk.
> ePoE.
> IP67 and IK10 protection.
| Camera | |
| Image Sensor | Channel 1-3: 1/2.8' CMOS |
| Max. Resolution | Channel 1-3: 1920 (H) × 1080 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | Channel 1: 0.0007 lux@F1.6 (Color, 30 IRE) 0.0004 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) Channel 2: 0.004 lux@F2.0 (Color, 30 IRE) 0.0005 lux@F2.0 (B/W, 30 IRE) 0 lux (Illuminator on) Channel 3: 0.008 lux@F2.8 (Color, 30 IRE) 0.0008 lux@F2.8 (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 100 m (328.08 ft) (IR) |
| Illuminator On/Off Control | Auto;Manual |
| Illuminator Number | 8 (IR LED) |
| Angle Adjustment | Triaxial adjustment: Pan: 0°–360° Tilt: 0°–70° Rotation: 0°–360° Micro PTZ: Tilt: -5°–10° |
| Gradienter | The horizontal gradient is visualized, simplifying installation. |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | Channel 1: 3.6 mm Channel 2: 12 mm Channel 3: 25 mm |
| Max. Aperture | Channel 1: F1.6 Channel 2: F2.0 Channel 3: F2.8 |
| Field of View | Channel1: D: 100.4°; H: 85.9°; V: 46.7° Channel2: D: 29.5°; H: 25.7°; V: 14.4° Channel3: D: 14.9°; H: 13°; V: 7.4° |
| Iris Control | Channel 1-3: Fixed |
| Close Focus Distance | Channel 1: 1.1 m (3.61 ft) Channel 2: 8.6 m (28.22 ft) Channel 3: 19.6 m (64.30 ft) |
| Intelligence | |
| Intelligence Notes | Channel 1–3: Perimeter protection *Alarms are output through channel 1. |
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Video Frame Rate | Channel 1-3: Main stream: 1920 × 1080@(1–25 fps) sub stream: 704 × 576@(1–25 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | Channel 1-3: 1080p (1920 × 1080) |
| Bit Rate Control | VBR;CBR |
| Video Bit Rate | Channel 1-3: H.264: 3 kbps–8192 kbps H.265: 3 kbps–8192 kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Illumination By Area | Yes, 6 areas |
| Smart Illumination | Yes |
| Defog | Yes |
| Privacy Masking | 8 areas |
| Audio | |
| Built-in MIC | Yes, built-in dual Mic |
| Built-in Speaker | Yes, built-in speaker |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; security exception; scene changing; audio detection; voltage detection; external alarm |
| Network | |
| Network Port | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour |
| Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade;Session security;Security warning |
| Interoperability | ONVIF (Profle S & Profle G & Profle T & Profle M); CGI |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 1 TB); NAS |
| Browser | IE: IE 9 and later Edge: Edge 79 and later Chrome: Chrome 102 and later Firefox: Firefox 88 and later |
| Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care |
| Certification | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: wet contact, 5 mA 3–5 VDC |
| Alarm Output | 2 channels out: wet contact, 300 mA 12 VDC |
| Power Output | 12 VDC power output, max. current 165 mA, peak current 700 mA |
| Power | |
| Power Supply | 12 VDC (±30%); PoE+(802.3at); ePoE |
| Dual Power Backup | When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart. |
| Power Consumption | Basic: 4.3 W (12 VDC); 5.5 W (PoE) Max.: 22.1 W (12 VDC); 23.6 W (PoE) (intelligence on + IR on + speaker on) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | ≤95% (RH), non-condensing |
| Protection | IP67; IK10 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 278.6 mm × 124.0 mm × 140.4 mm (10.97' × 4.88' × 5.53') (L × W × H) |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.06 kg (6.75 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-IPC-MFW5241T2-E3-ASE |
