Dahua DH-SD4D825MB-HNR - Cámara Ip Ptz De 8 Mp / Wizsense/ 25X Zoom Óptico/ Ir 100 M/ Luz Cálida 50M/H.265+/ Wdr Real 120 Db/ Protección Perimetral/ Detección Facial Smd 4.0/ Ranura Para Microsd/ Ip67/ E&S Alarma Y Audio/
Precio especial $8,537.00 IVA incluido + Envio $150 MXN
Antes $9,903.00
Disponible 1 Pzas
Antes $9,903.00
Disponible 1 Pzas
sku: DH-SD4D825MB-HNR
pub
MX0000108768
SD4D825MB-HNR

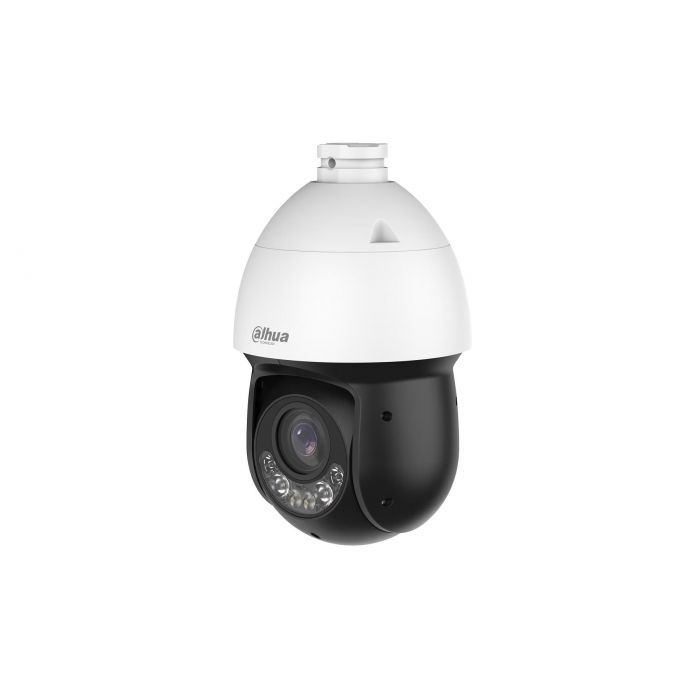

8MP 25x Smart Dual Light WizSense Network PTZ Camera
> 1/2.8' 8Megapixel STARVIS™ CMOS
> 25× optical zoom
> Starlight technology
> Max. 25/30fps@8M
> IR distance up to 100 m
> Warm light distance up to 100 m
> Perimeter protection
> Face detection
> SMD 4.0
> IP67
| Camera | |
| Image Sensor | 1/2.8' CMOS |
| Pixel | 8 MP |
| Max. Resolution | 3840 (H) × 2160 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Electronic Shutter Speed | 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Illumination Distance | 100 m (328.08 ft) (IR); 50 m (164.04 ft) (Warm light) |
| Illuminator On/Off Control | Zoom Prio; Manual; Auto; Off |
| Illuminator Number | 2 (IR); 2 (Warm light); 2 (Dual-core light) |
| Lens | |
| Focal Length | 5 mm–125 mm |
| Max. Aperture | F1.6–F3.6 |
| Field of View | H: 57.73°–3.73°; V: 33.6°–2.08°; D: 64.92°–4.27° |
| Optical Zoom | 25× |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Auto |
| PTZ | |
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: –15° to +90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1°–200°/s; Tilt: 0.1°–120°/s |
| Preset Speed | Pan: 0.1°–240°/s; Tilt: 0.1°–200°/s |
| Preset | 300 |
| Tour | 8 |
| Pattern | 5 |
| Scan | 5 |
| Power-off Memory | Yes |
| Idle Motion | Preset;Pattern;Tour;Scan |
| Intelligence | |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Smart Tracking | Auto Tracking 3.0 |
| SMD | SMD 4.0 |
| AcuPick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets |
| Auto Patrol | It triggers the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets |
| Video | |
| Video Compression | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | 8M (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 960p (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA(640 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Main stream: 8M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 1: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 128 kbps–16,384 kbps H265: 51 kbps–11,776 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| HLC | Yes |
| White Balance | Auto; indoor; outdoor; ATW; manual; sodium lamp; natural light; street lamp |
| Gain Control | Auto; manual; Gain priority |
| Noise Reduction | 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Defog | Electronic |
| Digital Zoom | 16× |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view |
| S/N Ratio | ≥55 dB |
| Audio | |
| Audio Compression | PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729, G.723 |
| Network | |
| Network Port | 1 × RJ-45 (10/100 Base-T) |
| Network Protocol | HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;SMB;NFS |
| Interoperability | ONVIF (Profile S & Profile G & Profile T);CGI;SDK |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions iOS 10 and later versions |
| Management Software | DMSS;DSS Pro |
| Mobile Client | iOS;Android |
| Certification | |
| Certifications | CE: EN55032/EN55024/EN50130-4 |
| Port | |
| Audio Input | 1 channel (LINE IN, bare wire);1 channel |
| Audio Output | 1 channel (LINE OUT,bare wire);1 channel |
| Alarm Input | 2 |
| Alarm Output | 1 channel |
| Alarm Linkage | Capture; recording; send email; preset; tour; pattern; alarm digital output |
| Alarm Event | Motion/Tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 12 VDC, 3 A ± 10% PoE (802.3at) |
| Power Consumption | DC: Basic: 8 W; Max: 20 W (illuminator + PTZ) PoE: Basic: 11 W; Max: 23 W (Illuminator+PTZ) |
| Power Adapter | Optional |
| Environment | |
| Operating Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67;TVS 6000 V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Product Dimensions | 270.4 mm × Φ160 mm (10.65' × Φ6.30') |
| Net Weight | 2.4 kg (5.29 lb) |
| Gross Weight | 3.9 kg (8.60 lb) |
| Marca | Dahua |
|---|---|
| MPN: | DH-SD4D825MB-HNR |
