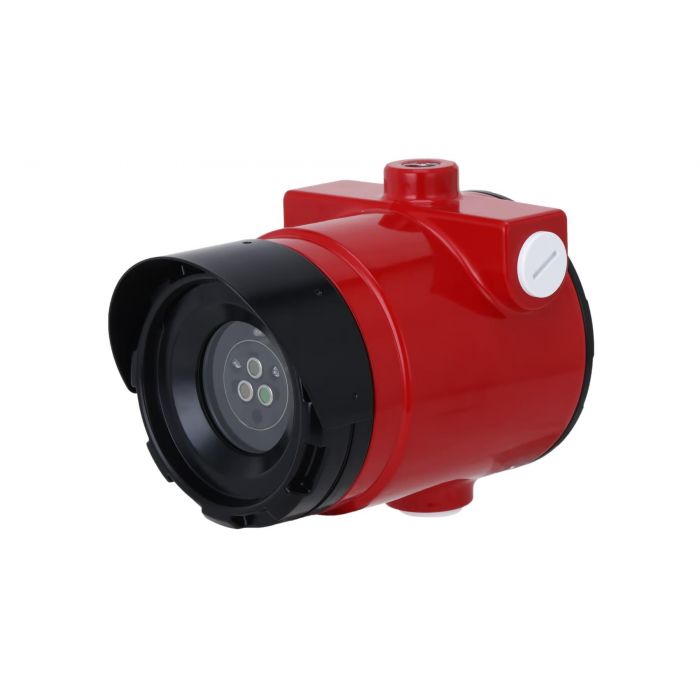

Dahua DHI-HY-IF43DA-EX Wisualarm DHI-HY-IF43DA-EX-Gyxf - Detector De Flama Punto Infrarrojo, Rs 485, Salida Relevador, Algoritmo Procesamiento Fft, Tiempo Respuesta <10 Segundos, 24 V Cc
Precio especial $10,672.00 IVA incluido + Envio $150 MXN
Antes $12,380.00
Disponible 5 Pzas
Antes $12,380.00
Disponible 5 Pzas
sku: DHI-HY-IF43DA-EX
pub
MX0000108767
HY-IF43DA-EX
Point-type Infrared Flame Detector
> High sensitivity: multi-band intelligent flame recognition algorithm, composite analysis of flame signals, alarm signal issued in as fast as 4 seconds, more sensitive, lower false alarm rate
> Large detection range: maximum detection distance greater than 60 m (@0.1m2 n-heptane fire), field of view -- 110°
> Rich interfaces: RS-485, fire bus, 4-20mA current loop, 3 relay output, can be linked to NVR and camera
> Large detection range: maximum detection distance greater than 60 m (@0.1m2 n-heptane fire), field of view -- 110°
> Rich interfaces: RS-485, fire bus, 4-20mA current loop, 3 relay output, can be linked to NVR and camera
| Technical Speci?cation | |
| Function | |
| Collection Type | Flames |
| Sensor Type | Pyroelectric sensor: 3.8μm, 4.4μm, 5.3μm |
| Detection Range | N-heptane: 60 m@0.3 m x 0.3 m Gasoline: 55 m@0.3 m x 0.3 m Alcohol: 50 m@0.3 m x 0.3 m |
| Detection Sensitivity | Level 1-5 adjustable |
| Response Time | < 10 s (alarm delay: 0–30 s settable) |
| Angle of View | Horizontal: 110° Vertical: 110° |
| Indicator Light | Alarm: Red indicator remains lit Fault: Red indicator flashes Working: Green indicator flashes |
| Output Port | 1 x RS-485 1 x fire bus 1 x 4–20 mA current-loop 3 x relay outputs: 1 x fire alarm, 1 x fault, 1 x auxiliary |
| Relay Output | Contacts rated 1A at 30 VDC |
| Power Supply | |
| Operating Voltage | 24 VDC |
| Power Consumption | < 1W |
| Environment | |
| Operating Temperature | –25°C to +75°C (–13°F to +167°F) |
| Storage Temperature | –40°C to +80°C (–40°F to +176°F) |
| Operating Humidity | ≤95% RH (non condensing) |
| Protection | IP66 |
| Construction | |
| Dimensions | 146 mm × 123 mm × 133 mm (5.75' × 4.84' × 5.24') |
| Weight | 1.55 kg (3.42 lb) (without installation bracket) |
| Conduit Entry Size | M20 |
| Color | Reddish black |
| Casing Material | Aluminum alloy (ADC12) |
| Explosion-proof Approvals | ATEX: ll 2 G Ex db llC T6 Gb ll 2 D Ex tb IIIC T80°C Db IECEx: Ex db llC T6 Gb Ex tb IIIC T80°C Db (-25°C≤ Ta≤ 75°C) |
| Certifications | CE, UKCA |
| Marca | Dahua |
|---|---|
| MPN: | DHI-HY-IF43DA-EX |
