Dahua DHI-HY-1025 - Panel De Detección Incendio Direccionable, 500 Dispositivos, Cuenta Con Impresora, Pantalla Lcd 4.3" (480X272), Protección Contra Cortocircuito, Circuito Abierto Y Sobrecorriente, Largo Historial Eventos

Precio especial $13,433.00 IVA incluido + Envio $150 MXN
Antes $15,582.00
Disponible 4 Pzas
sku: DHI-HY-1025
pub
MX0000108749
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

HY-1025

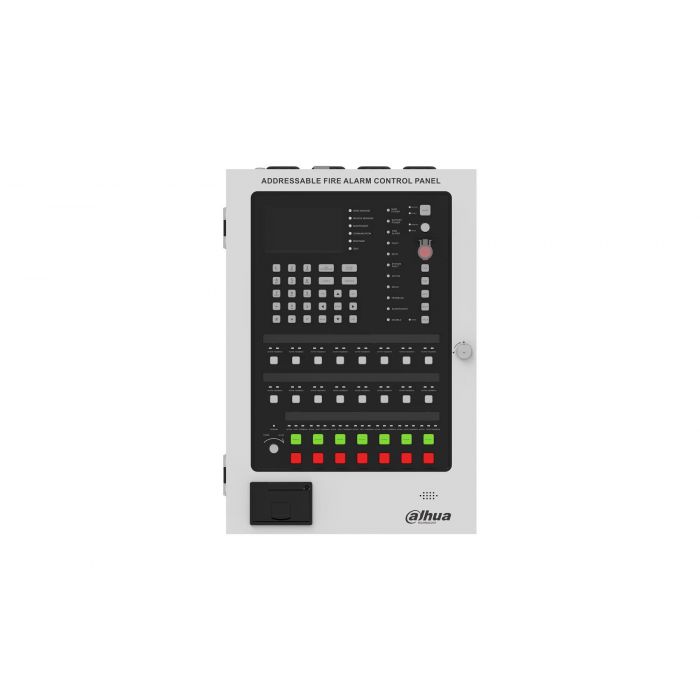

Addressable Fire Alarm Control Panel

> Two-wire and polarity-free wiring: It integrates power and communication without external supply, offering robust anti interference, simplified installation, lower costs, and easier maintenance, to enhance reliability and operational efficiency

> Intuitive display: 4.3' LCD (480×272) provides intuitive operation with tool-free system setup

> Extended event logging: Long-term storage with flexible query/print by time, type, and other parameters

> Intelligent dual-power system: Automatic main/backup switching with charge-discharge management ensures uninterrupted fire protection power

> Protection design: Short circuit, open circuit and overcurrent protection to ensure stable operation

> Designed in accordance with EN54-2 and EN54-4 standards



Electrical
Working Voltage DC 12V~48V
System Capacity Maximum capacity is 508 field devices
Loop Number 2
Main Power AC90-240V/50Hz, 60Hz
Backup Power 2 lead-acid batteries (12V/5Ah each)
Display 480 × 272 4.3’’ LCD screen
Printer Micro thermal printer
Dimensions 333.0 mm×115.0 mm×480.0 mm (13.11' × 4.53' × 18.90')
Operating Temperature –10°C to +40°C (+14°F to +104°F)
Operating Humidity ≤ 95% RH (no condensation)
Protection Grade IP30
Weight 7 kg 10 kg (with 2 batteries)
Compliance Standard EN54-2, EN54-4
Más información
MarcaDahua
MPN:DHI-HY-1025
