Zkteco SATURN-S1200 saturns1200 - barrera peatonal central abatible / acero spcc laminado en frío hasta 3 millones de ciclos vidrio templado 2.5d requiere saturn-s1000
Precio especial $14,254.00 IVA incluido + Envio $150 MXN
Antes $16,535.00
Disponible 1 Pzas
Antes $16,535.00
Disponible 1 Pzas
sku: Saturn-S1200
pub
MX0000108426
Saturn Series

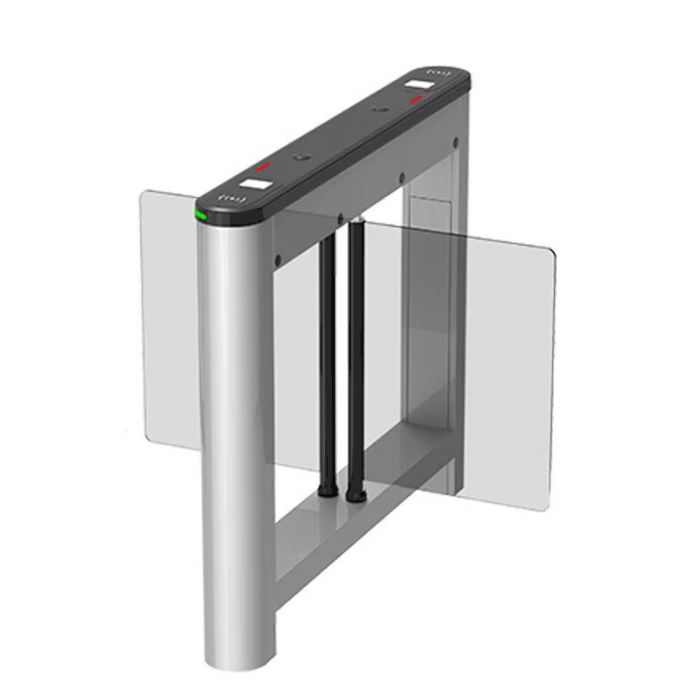

Unveiling the ZKTeco Saturn Series, an innovative swing barrier turnstile designed for an paralleled passage experience. With its sophisticated design, the Saturn Series has two models (S1000 and S1200) and is available in range of striking colors including Pearl White, Space Gray, and Bay Blue, Mist Brown and Carbon Black, making it blends seamlessly with both indoor and outdoor applications.
| Informacion tecnica | |
|---|---|
| Model Name | Saturn-S1000 Saturn-S1200 |
| Audio Indicator | Internal speaker |
| Visual Indicator | Top LED indicator: Blue = Door closed / stand by Green = Door opening Red = Door closing / alarm Slide LED indicator: Green = Lane available Red = Lane unavailable |
| Display | NA |
| Lane Type | Saturn-S1000: Single lane Saturn-S1200: Dual Swing (for additional lane) |
| Lane Width | 650mm (Standard) 900mm (Optional) |
| Barrier Movement Type | Swing |
| Motor | DC brushless motor |
| Movement Speed | Average 1s per movement (Adjustable open/close timing) |
| Movement Accuracy | NA |
| Clutch | NA |
| Lid Material | Polycarbonate+2.5D tempered glass |
| Lid Options Authentication Methods | Streamlined under mount options: QR Code / RFID Surface mount option: Facial Authentication |
| Chassis Material | Cold-rolled SPCC Steel (GB700) / Polycarbonate (Side Lid) |
| Chassis Colour | Pearl White(PWH), Space Gray(SGY), Carbon Black(CBK), Bay Blue(BBLE), Mist Brown(MBW) |
| Barrier Material | Clear acrylic (635*300mm)(standard) / Tempered glass (635*425mm)(optional) |
| IR Sensors | 4 pairs |
| Motherboard Function | System configuration, access control |
| Motherboard Communication | Fire alarm port (relay)*1, RS485 port*1 |
| Controller | Not equipped, allowing optional from C3 / InBio Series series or customization |
| Credential Options | Under mount RFID reader: (support model: Pro ID Series, KR Series) Under mount ngerprint reader: FR1200 / FR1500S |
| Flow Rate | Facial Authentication: 15 passengers per minute QR Code: 30 passengers per minute RFID: 35 passengers per minute |
| Accessibility | Adult, Children (with care), Disability (with care) |
| Power Supply | 110V / 220V ±10% AC @50Hz/60Hz |
| Power Rating | 10VA(Standby) 40VA(Operation) |
| Fire Signal | Input for voltage free contact |
| Noise Level | Less than 60dB |
| MTTR | Less than 60 minutes |
| MCBF | 3 million |
| Weight | Saturn-S1000: 50kg Saturn-S1200: 30kg |
| Dimension (L*W*H) | 1200 * 150 * 1020 mm |
| Dimensions with Packing ( L*W*H ) | Saturn-S1000: Carton (standard): 1265*220*1070 mm (2 boxes) Wooden box (optional): 1300*480*1224mm (1 box) Saturn-S1200: Carton (standard): 1265*220*1070mm (1 box) Wooden box (optional): 1300*260*1224mm (1 box) |
| Operating Temperature | -30 °C to 70 °C |
| Operating Humidity | 5% to 90% RH (Non-condensing) |
| Certifications | CE, FCC |
| Ingress Protection Rating | IPX4 |
| Supported Software | ZKBio CVAccess / ZKBio CVSecurity (Depends on equipped access controller) |
| Safety Features | Voltage free contact input for fire alarm fail state automatic swing barrier open during power off |
| Security Features | Anti-tailgating, anti-pinch |
| Product Delivery | Pre-assembled |
| Application Environment | Indoor / outdoor (if sheltered) |
| Site Preparation | Flat & level finished floor (base plate in options for unfinished floor) |
| Security Level | Low |
| Emergency Mode | Support (swing barrier open automatically) |
| Packing Material | Carton(standard) / Wooden(optional) |
| Marca | ZkTeco |
|---|---|
| MPN: | Saturn-S1200 |
