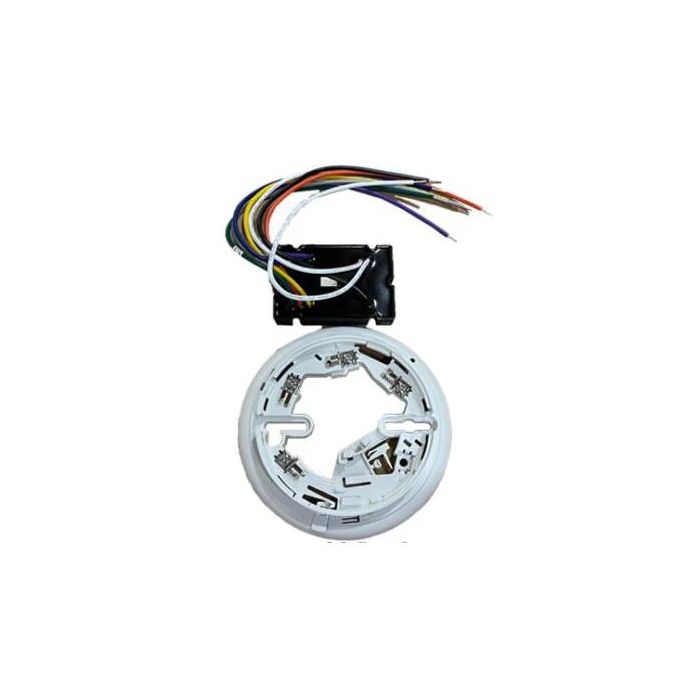

Simplex 4098-5680 conv 2-wire relay base

La base esta disenada para detectores fotoelectricos o fotoelectricos-termicos convencionales de Simplex, proporcionando una base de 5 pulgadas con rele de alarma auxiliar integrado y conexiones para indicador LED remoto. Esta base permite el montaje de detectores en sistemas de alarma contra incendios que utilizan circuitos de dispositivos iniciadores (IDC) de 2 hilos.

Su conexion debe realizarse como el unico dispositivo en el lazo IDC para asegurar el funcionamiento correcto del rele. Los contactos de rele estan cableados con conductores de 18 AWG codificados por color, mientras que las conexiones IDC (+) y del LED se realizan mediante terminales de tornillo para calibres de 18 a 14 AWG.

Datos en ingles

Simplex 4098-5680 4-wire base with auxiliary relay contacts and connections for the remote LED alarm indicator. Compatible with Simplex 4098-9601, 4908-9602, 4098-9603, 4098-9605, 4098-9612, 4098-9613, 4098-9614, 4098-9615 detectors. NOTE: Requires external 24 VDC for operation.

Multi-function indicator LED indicates normal and alarm conditions
Magnetically operated functional test:
Initiates alarm and verifies performance
Identifies general sensitivity status using detector LED
Models available in two sensitivity settings:
4098-9601, Standard Sensitivity, nominal 2.8%/ft
obscuration
4098-9605, Special Application Sensitivity, nominal 3.5%/ft obscuration
Available base options:
Bases for 2-wire or 4-wire operation
Auxiliary alarm relay output
Optional remote alarm indicating LED

Each TrueAlarm detector has an onboard microprocessor that evaluates its photoelectric light scattering chamber activity and makes an intelligent decision based on light obscuration history as to whether an alarm condition is present.
TrueAlarm detectors – packaged in a patented housing
.
Bases are available for remote alarm LED indicator connections and auxiliary relay outputs.

Simplex 4098-5680

Multi-function indicator LED indicates normal and alarm conditions
Magnetically operated functional test:
Initiates alarm and verifies performance
Identifies general sensitivity status using detector LED
Models available in two sensitivity settings:
4098-9601, Standard Sensitivity, nominal 2.8%/ft
obscuration
4098-9605, Special Application Sensitivity, nominal 3.5%/ft obscuration
Available base options:
Bases for 2-wire or 4-wire operation
Auxiliary alarm relay output
Optional remote alarm indicating LED

Each TrueAlarm detector has an onboard microprocessor that evaluates its photoelectric light scattering chamber activity and makes an intelligent decision based on light obscuration history as to whether an alarm condition is present.
TrueAlarm detectors – packaged in a patented housing
.
Bases are available for remote alarm LED indicator connections and auxiliary relay outputs.
