Bosch NDI-3702-AL v_ndi3702al - domo fijo 2mp 3.3-10.2mm ir
Precio especial $11,232.00 IVA incluido + Envio $150 MXN
Antes $13,029.00
Disponible 5 Pzas
Antes $13,029.00
Disponible 5 Pzas
sku: NDI-3702-AL
pub
MX0000107498

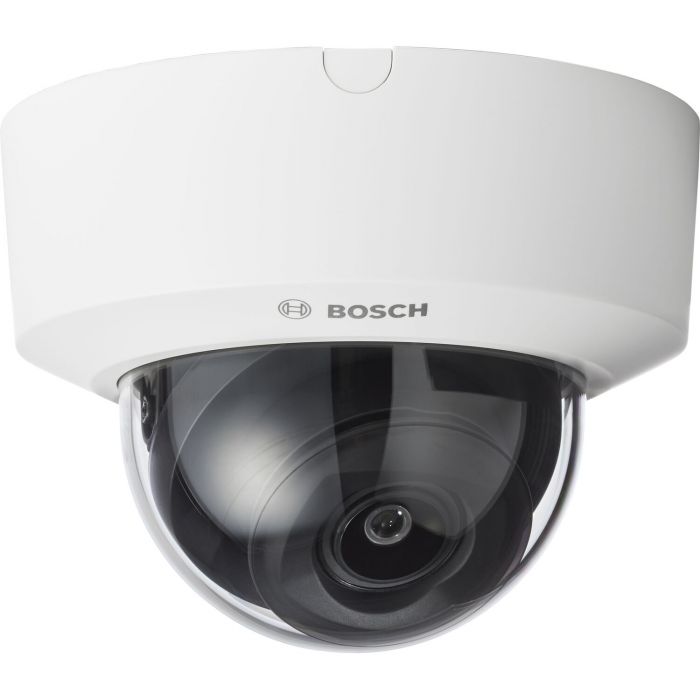

Bosch NDI-3702-AL FLEXIDOME 3100i 2MP Indoor Network Dome Camera with Night Vision
Key Features
- 1080p Resolution at 30 fps
- IR LEDs for Night Vision up to 98
- 3.3-10.2mm Motorized Varifocal Lens
- 106 to 31.2° Horizontal Angle of View
Securely monitor an indoor area with the NDI-3702-AL FLEXIDOME 3100i 2MP Network Dome Camera from Bosch. This unit uses a 1/2.8' CMOS sensor to capture 1080p resolution video at 30 fps. IR LEDs provide up to 98 of night vision. The camera s 3.3-10.2mm motorized varifocal lens delivers a 106 to 31.2° horizontal angle of view. A memory card slot accepts microSD cards up to 2TB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, M, S, and T, making it compatible with a wide range of surveillance devices.
IR cut filter for day and night functionality
Manually adjustable IR LED intensity
3.3-10.2mm motorized varifocal lens is IR corrected
Motorized zoom and focus control
Privacy masking for up to eight areas
Preinstalled Intelligent Video Analytics Pro (IVA Pro Buildings) enables the system to reliably detect and track people/vehicles, and alert you when predefined alarms are triggered while minimizing false alarms
Additional features include HDR, white balance, adjustable sharpness, backlight compensation, saturation, brightness, intelligent defog, image mirror, rotation (90 to 270°), pixel counter, video watermarking, display stamping, location, and group of pictures (GOP) structure
End-to-end encryption
PVC free
Specs
| Image Sensor |
1/2.8'-Type CMOS
|
| Focal Length |
3.3 to 10.2mm
|
| Field of View |
Horizontal: 106 to 31.2°
Vertical: 55.2 to 17.5° |
| Output Formats |
Composite:
720 x 480 |
| Video I/O |
1x BNC (Composite) Output
|
| Built-In Microphone |
No
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.8'-Type CMOS
|
| Sensor Resolution |
Effective: 2 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 3.3 to 10.2mm Lens:
Detect: 95 to 451 / 29.0 to 137.5 m Observe: 38 to 179 / 11.6 to 54.6 m Recognize: 19 to 90 / 5.8 to 27.4 m Identify: 10 to 45 / 3.0 to 13.7 m |
Exposure Control
| Shutter Speed |
1/15000 to 1/25 Second
|
| Signal-to-Noise Ratio |
55 dB
|
| Minimum Illumination |
0.06 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
3.3 to 10.2mm
|
| Max Optical Zoom |
3.1x
|
| Field of View |
Horizontal: 106 to 31.2°
Vertical: 55.2 to 17.5° |
| Maximum Aperture |
f/1.6 to 3.29
|
Video
| Output Formats |
Composite:
720 x 480 |
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
1920 x 1080 up to 30.00 fps |
| Multi-View Streaming |
Yes
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 355°
Vertical: 0 to 85° Rotation: 0 to 355° |
Networking
| Security |
Centralized Certificate Management, Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, Watermark
|
| Supported Protocols |
APIPA, ARP, CHAP, DDNS, DHCP, DiffServ, DNS, DynDNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, iSCSI, LLDP, NTP, ONVIF Profile G, ONVIF Profile M, ONVIF Profile S, ONVIF Profile T, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SNTP, SOAP, SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [2 TB Maximum]
|
| Video I/O |
1x BNC (Composite) Output
|
| Other I/O |
1x RJ45
|
| Built-In Microphone |
No
|
| External Storage Options |
Cloud
|
System Integration
| Analytics |
Motion Detection, People Detection, Vehicle Detection
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE+ 802.3at, PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 4.2 to 7.6 W
|
Environmental
| Operating Conditions |
32 to 104°F / 0 to 40°C at 5 to 100% Humidity
|
| Storage Conditions |
-22 to 158°F / -30 to 70°C at 5 to 95% Humidity
|
| Startup Temperature |
32°F / 0°C
|
General
| Material of Construction |
Polycarbonate
|
| Certifications |
BIS, CE, EN, EU, FCC, IEC, IEC/EN, Kcc, NDAA, RCM, RoHS, UKCA, UL, VCCI, WEEE
|
| Illumination |
850 nm IR LEDs up to 98.4 / 30 m
|
| Dimensions (W x H x D) |
5.4 x 4.1 x 5.4' / 137 x 104 x 137 mm
|
| Weight |
0.9 lb / 415 g (Body Only)
|
Packaging Info
| Package Weight |
1.64 lb
|
| Box Dimensions (LxWxH) |
7.2 x 6.3 x 5.3'
|
| Marca | Bosch |
|---|---|
| MPN: | NDI-3702-AL |
