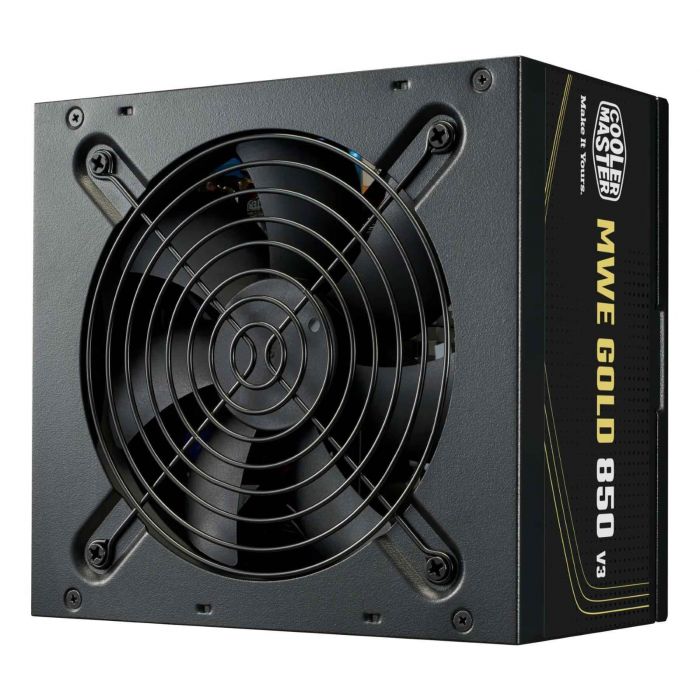

Cooler Master MPE-8506-ACAG-BUS mpx-8503-afag-2 fuente de poder 850w mwe v3 atx 3.1/80plus gold certificada/no modular/gamer
Precio especial $1,511.00 IVA incluido + Envio $150 MXN
Antes $1,753.00
Disponible 39 Pzas
Antes $1,753.00
Disponible 39 Pzas
sku: MPE-8506-ACAG-BUS
pub
MX0000107345
Ficha de referencia: MPE-8506-ACAG-BEu
Introducing the MWE Gold V3, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our G Gold PSU. With features such as 80 Plus Gold efficiency, a DC-to-DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions.
Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.
Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5-year warranty, the MWE Gold V3 will evolve your machine.
Technical Information
| Cooling | |
|---|---|
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | HDB |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| Fan diameter | 12 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cooling type | Active |
| Power | |
| Total power | 850 W |
| Power Good signal delay range | 100 - 150 ms |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 6 - 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over total voltage, Over voltage, Short circuit, Under voltage |
| Hold time | 16 ms |
| Efficiency | 90% |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 400,550,700 mm |
| Peripheral (Molex) power cable length | 400,550,700 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
| EPS power connector (4+4 pin) | Yes |
| Number of EPS connectors | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Compliance certificates | BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus |
| 80 PLUS certification | 80 PLUS Gold |
| Weight & dimensions | |
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.8 kg |
| Packaging data | |
| Package depth | 110 mm |
| Package width | 190 mm |
| Package height | 260 mm |
| Package type | Box |
| Package weight | 2.21 kg |
| Case or master carton dimensions (W x D x H) | 275 x 215 x 570 mm |
| Technical details | |
| Sustainability certificates | ErP |
| Compliance certificates | BIS, BSMI, CCC, CE, EAC, Federal Communications Commission (FCC), RCM, TÜV mark, UKCA, cTUVus |
| Marca | Cooler Master |
|---|---|
| MPN: | MPE-8506-ACAG-BUS |
