Sato WWCLP1001-WAR cl4nx plus tt printer 203dpi, ethernet, wifi
Precio especial $68,637.00 IVA incluido + Envio $150 MXN
Antes $79,619.00
Disponible 2 Pzas
Antes $79,619.00
Disponible 2 Pzas
sku: WWCLP1001-WAR
pub
MX0000107297
WWCLP1001-WAR
Product Highlights

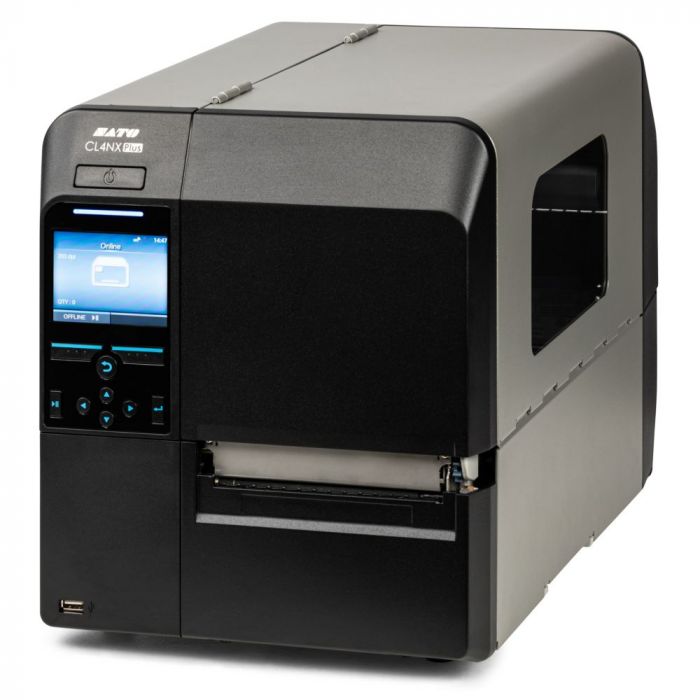

Thermal Transfer/Direct Thermal Industrial Printer, SATO CL4NX Plus, 203 DPI, 4.1-Inch Print Width, LAN, USB, Serial, Wireless LAN, Real Time Clock
| Printer Type | Industrial |
| Print Technology | Thermal Transfer |
| Interface | SerialUSBEthernetWi-FiUSB-BUSB-A |
| dpi (dots per inch) | 203dpi |
| Core Size | 3.00 inch |
| Printer Options | LCD DisplayReal-Time ClockOptional Barcode Validator |
| Max Media Width | 4.0-4.9 inch |
Print Specifications
| Method | Direct Thermal or Thermal Transfer |
| Mode | Continuous & Tear-off |
| Resolution | 203 dpi (8 dots/mm) |
| Speed | 14 ips (355 mm/sec) |
| Print area | Maximum width: 4.09″ (104 mm) Maximum length: 98.42″ (2500.0 mm) |
| Media size | Width: 0.98″ – 5.16″ (25 – 131 mm) Lenght: 0.35″ – 98.43″ (9 – 2500 mm) |
MEDIA SPECIFICATIONS
| Sensor type | Top Sensor, Adjustable Transmissive Sensor for Gap, Adjustable Reflective Sensor for Black Mark, Paper Out, Ribbon Near-End/Out, Label Near-End |
| Media type | Roll (Continuous, Die-cut, Linerless), Fan-fold, Tag, Ticket |
| Media | Thickness (label & liner) 0.0024″ – 0.011″ (0.060 – 0.268 mm) Roll diameter Up to 10″ OD (254 mm) on 3″ (76.0 mm) ID Core Wind Face-in/face-out, no setting change required |
| Ribbon | Width 1.55″ – 5.04″ (39.5 – 128 mm) Length 1,968.5′ (600 m) on 1″ (25.4 mm) ID core Roll diameter Maximum 3.54″ (90.0 mm) Wind Face-in/face-out, no setting change required |
| SATO genuine consumables | For maximum print quality and optimum use, SATO recommends the use of SATO genuine consumables |
FONT SPECIFICATIONS
| Internal fonts | 17 bitmap SATO fonts, 30 scalable SATO fonts, MultiNational language support (47 languages/unicode), single and double byte fonts (Korean, Chinese, Japanese) |
RFID SPECIFICATIONS
| Options | UHF: Gen 2 ISO/IEC 18000-6C HF: ISO/IEC 15693 & ISO/IEC 4443 |
CONNECTIVITY
| Standard | USB 2.0 (Type A, Type B), Ethernet (IPv4/IPv6) on Rear Panel, USB 2.0 (Type A) on Front Panel, RS-232C, Parallel Port, EXT I/O Interface, NFC |
| Optional Wireless LAN Kit (Internal) | Wi-Fi® and Wi-Fi Direct® Certified, IEEE 802.11ac, Dual Band (2.4 GHz, 5 GHz) |
MEMORY & PROCESSING SPECIFICATIONS
| Dual CPU | CPU1: 2GB Flash, 256 MB RAM CPU2: 4MB Flash, 64 MB RAM |
| User downloadable fonts, videos, graphics or format | Maximum 100 MB |
USER FRIENDLY SUPPORT TOOLS
| Large status LCD | Blue/red |
| Audible alerts | Adjustable volume setting |
| Self diagnosis | Head check, cutter-cover open, stand-by mode, auto-calibration |
| Display panel | 3.5″ full color LCD |
| Tool-free maintenance | Print head replacement and adjustment, visual wear indicator for platen roller (pure line) |
| Multi-national language support | 47 printable languages with scalable fonts 31 Major Latin, Pan European and Asian languages for LCD Menu |
| Operation videos | Multiple instructional videos on-board, space for customized videos |
| Emulation | Auto Detect – SBPL®, SEPL®, SZPL®, SDPL®, SIPL® or STCL® (pre-installed), XML, Direct PDF Printing*, AEP* |
| Remote maintenance | SNMP Ver. 3, Web interfaces, SATO Online Services (SOS), All-In-One Tool (AIOT), SOTI Connect |
AVAILABLE ADD-ONS & OPTIONAL UPGRADES
| Guillotine Cutter |
| Linerless Cutter |
| Dispenser with Internal Liner Rewinder |
| Real-Time Clock |
| Wireless LAN |
| Barcode Validator |
| RWG500 External Rewinder |
| UHF RFID |
| HF RFID |
BARCODE SYMBOLOGIES SPECIFICATIONS
| Barcodes | Linear: Code 39, Code 93, Code 128, CODABAR (NW7), EAN8/13, GS1-DatabarTM, GS1-128 (UCC/EAN128), Interleaved 2/5, Industrial 2/5, JAN 8/13, Matrix 2/5, MSI, Bookland, PostnetTM, UPC-A/E 2D symbologies: PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, QR Code, Micro QR Code and Composite Symbologies, Aztec |
OPERATING & ENVIRONMENT CHARACTERISTICS
| Electrical requirements | Universal auto-ranging power supply, 100-240VAC +/- 10%, 50/60Hz |
| Environment | Operating: 32 to 104°F (0 to 40°C), 30-80% RH, (without condensation); Linerless: 40 to 95°F (5 to 35°C) 30 – 75% RH, (without condensation) Storage: -4 to 140°F (-20 to 60°C), 30 – 90% RH, (without condensation) |
PHYSICAL CHARACTERISTICS
| Dimensions | 18.00″ L x 10.67″ W x 12.64″ H (457 mm x 271 mm x 321 mm) |
| Weight | 33.28 lbs (15.1kg) |
| Construction | Die-cast aluminum (base, frame, front cover, ribbon spindle, print head mechanism) |
| Side-cover | Space saving design with large media supply window and bi-fold door for easy access in confined locations |
| Secure mounting | 3 keyhole slots on chassis for flat or incline setting |
MISCELLANEOUS
| Functions – useful features | Micro Label Printing, Standalone Printing with SATO Application Enabled Printing (AEP), SATO Online Services (SOS), Multiple Interfaces-Auto-Switching, Status Return |
| Rotation | Auto-label rotation: 0°, 90°, 180°, 270° |
| Marca | Sato |
|---|---|
| MPN: | WWCLP1001-WAR |
