Pelco MBX3MAA explosion-proof communication box in aisi 316l stainless steel; 120vac out

Precio especial $37,015.00 IVA incluido + Envio $150 MXN
Antes $42,937.00
Disponible 5 Pzas
sku: MBX3MAA
pub
MX0000106617
Precios sujetos a cambios sin previo aviso
Pagos 100% seguros
Entrega Aprox.
Envio Nacional | Condicion: Nuevo
Logo

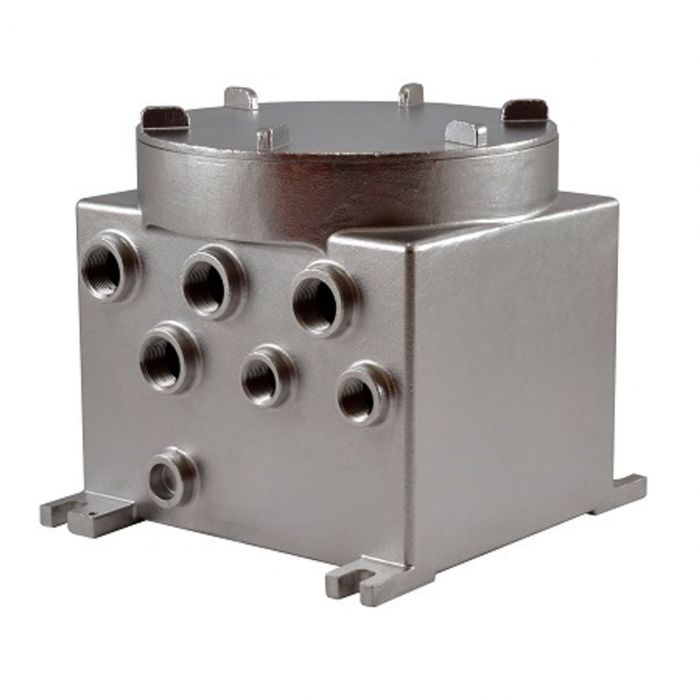

Introducing the Pelco MBX3MAA Explosion-Proof Communication Box, crafted from durable AISI 316L stainless steel, this advanced communication solution is designed to enhance connectivity and power supply for your surveillance system. Seamlessly integrating with both IP and analog cameras from the Videotec MAXIMUS range, it features low-voltage power supply capability and a Fast Ethernet connection, ensuring reliable performance even in challenging environments.

Pelco MBX3MAA - Key Features

  • Compliance: Certifications for use in Zones 1 and 21IC Group (Gas) and in Zones 21 and 22 IIIC Group (Dust); ambient temperature up to +80°C (+176°F) ensures safe operation in hazardous environments.
  • Material: AISI 316L stainless steel construction offers exceptional corrosion resistance and long-lasting durability, suited for industrial applications.
  • Compatibility: Designed to work exclusively with Videotec products and accessories, providing seamless integration and optimal performance.
  • Video Connectivity: 2 bypass for analog video signals with BNC connectors allow for straightforward video signal management.
  • IoT Integration: 2 bypass for I/O signals with multi-pin connectors facilitate easy integration with external devices.
  • Input Flexibility: Input voltages available: 230Vac, 120Vac, 24Vac ensure versatility in power supply options.
  • Robust Electronics: Extended/Industrial range electronics enhance reliability and performance under challenging conditions.

Pelco MBX3MAA - Detailed Specifications

Material AISI 316L stainless steel
Certification Zones 1 and 21IC Group (Gas), Zones 21 and 22 IIIC Group (Dust)
Temperature Range Up to +80°C (+176°F)
Video Bypass 2 bypass for analog video signals with BNC connectors
I/O Bypass 2 bypass for I/O signals with multi-pin connectors
Input Voltage Options 230Vac, 120Vac, 24Vac
Compatibility Exclusively with Videotec products and accessories
Electronics Range Extended/Industrial range
Más información
MarcaPelco
MPN:MBX3MAA
