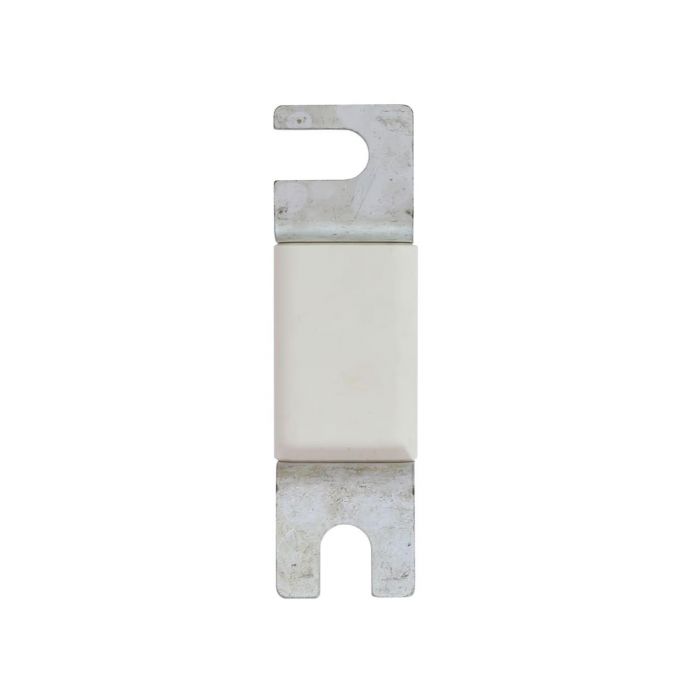

Eaton 170M2611 bussmann series high speed square body fuse, 700v (ul), 690v (iec), 50a, 200 kaic, top fuse status indicator, blade end x end, class gr, din 43 620
Precio especial $618.00 IVA incluido + Envio $150 MXN
Antes $717.00
Disponible 10 Pzas
Antes $717.00
Disponible 10 Pzas
sku: 170M2611
pub
MX0000106342
170M2611
Eaton Bussmann series high speed square body fuse, 700V (UL), 690V (IEC), 50A, 200 kAIC, Top fuse status indicator, Fuse, Blade end X blade end, Class gR, DIN 43 620
| General Specifications | |
|---|---|
| Product Name |
Eaton Bussmann series high speed square body fuse
|
| Catalog Number |
170M2611
|
| UPC |
051712254106
|
| EAN |
5027590442190
|
| Product Length/Depth |
233 mm
|
| Product Height |
66 mm
|
| Product Width |
140 mm
|
| Product Weight |
216 g
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
IEC Rated
UL Recognized |
| Especificaciones del producto | |
| Amperage Rating |
50 A
|
| Voltage rating |
690 V (IEC)
|
| Voltage type |
AC
|
| Clearing (I2T) |
640 at 660 V
|
| Pre arc (I2T) |
95
|
| Watt losses |
10 W
|
| Breaking capacity |
200 kA
|
| Class |
Class gR
|
| Especificaciones del producto | |
| Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
| Fuse type |
DIN 43653
/80 Visual indicator |
| Fuse indicator |
Top fuse status indicator
|
| Fuse size |
00
|
| Marca | Eaton |
|---|---|
| MPN: | 170M2611 |
