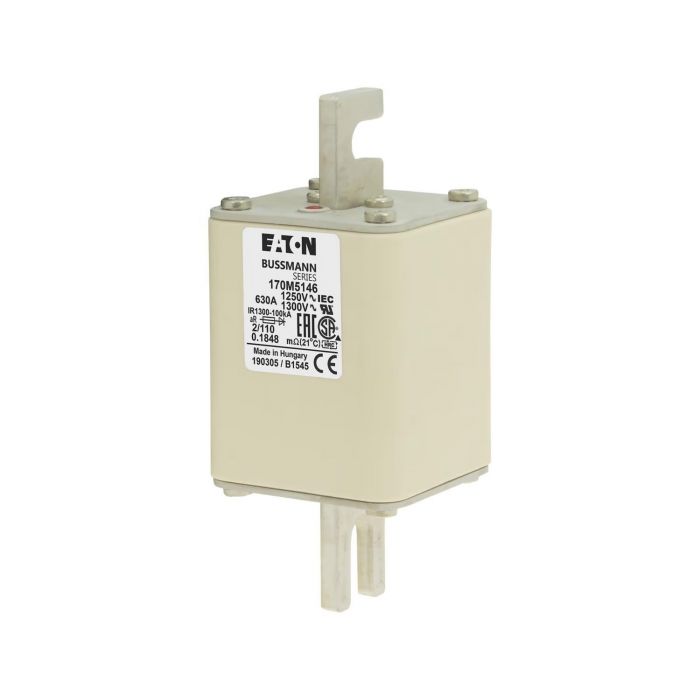

Eaton 170M5146 bussmann series high speed square body fuse, 630a, 100 kaic, class ar, din 43 620, standard, clearing at 1000v: 575000 , 1250v: 730000, with centre-bolted tags (slotted), top fuse status indicator, 110w
Precio especial $2,117.00 IVA incluido + Envio $150 MXN
Antes $2,456.00
Disponible 1 Pzas
Antes $2,456.00
Disponible 1 Pzas
sku: 170M5146
pub
MX0000106337
170M5146
Eaton Bussmann series high speed square body fuse, 630A, 100 kAIC, Class aR, DIN 43 620, Standard, Clearing at 1000V: 575000 , Clearing at 1250V: 730000, square body with centre-bolted tags (slotted), Top fuse status indicator, 110W
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series high speed square body fuse
|
Catalog Number |
170M5146
|
UPC |
051712260220
|
EAN |
5027590455886
|
Product Length/Depth |
284 mm
|
Product Height |
67 mm
|
Product Width |
175 mm
|
Product Weight |
830 g
|
Compliances |
CE Marked
RoHS Compliant |
Certifications |
IEC Rated
UL Recognized |
Especificaciones del producto | |
Amperage Rating |
630 A
|
Voltage rating |
1250 V (IEC), 1300 V (UL)
|
Voltage type |
AC
|
Clearing (I2T) |
575000 at 1000 V, 730000 at 1250 V
|
Pre arc (I2T) |
115000
|
Watt losses |
110 W
|
Breaking capacity |
100 kA
|
Class |
Class aR
|
Especificaciones del producto | |
Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
Fuse type |
DIN 43653
/110 Visual indicator Bolted tag |
Fuse indicator |
Top fuse status indicator
|
Fuse size |
2
|
Marca | Eaton |
---|---|
MPN: | 170M5146 |
