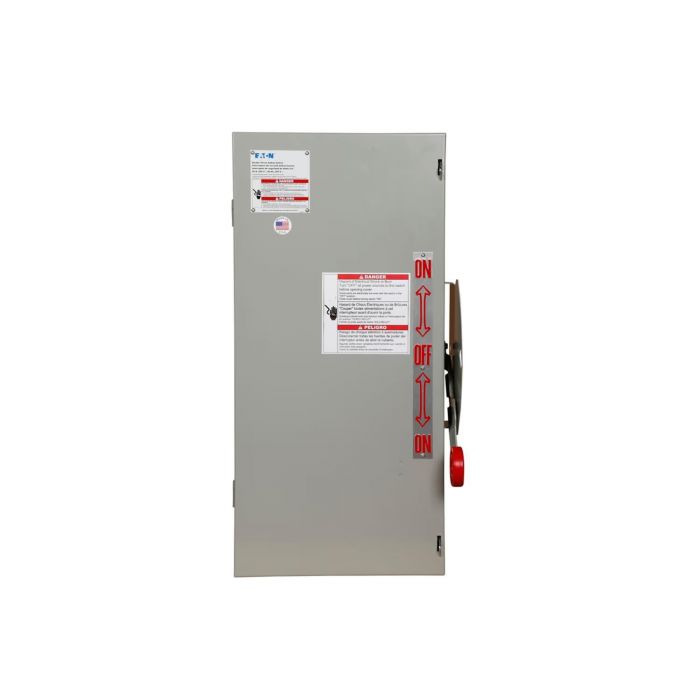

Eaton DT363UGK heavy duty double-throw non-fused safety switch, 100 a, nema 1, painted steel, non-fusible, three-pole, three-wire, 600 vac, 250 vdc
Precio especial $23,145.00 IVA incluido + Envio $150 MXN
Antes $26,848.00
Disponible 1 Pzas
Antes $26,848.00
Disponible 1 Pzas
sku: DT363UGK
pub
MX0000106334
DT363UGK
Eaton Heavy duty double-throw non-fused safety switch, 100 A, NEMA 1, Painted steel, Non-fusible, Three-pole, Three-wire, 600 Vac, 250 Vdc
| General Specifications | |
|---|---|
| Product Name |
Eaton heavy duty double-throw non-fused safety switch
|
| Catalog Number |
DT363UGK
|
| UPC |
782113426419
|
| Product Length/Depth |
11.19 in
|
| Product Height |
25.02 in
|
| Product Width |
11.95 in
|
| Product Weight |
34 lb
|
| Certifications |
UL Listed
|
| Catalog Notes |
Suitable for service entrance use with a neutral or ground lug kit installed
|
| Especificaciones del producto | |
| Type |
Heavy Duty, Double-Throw
|
| Amperage Rating |
100A
|
| Number of poles |
Three-pole
|
| Voltage rating |
600 Vac, 250 Vdc
|
| Enclosure |
NEMA 1
|
| Enclosure material |
Painted steel
|
| Fuse configuration |
Non-fusible
|
| Number of wires |
3
|
| Marca | Eaton |
|---|---|
| MPN: | DT363UGK |
