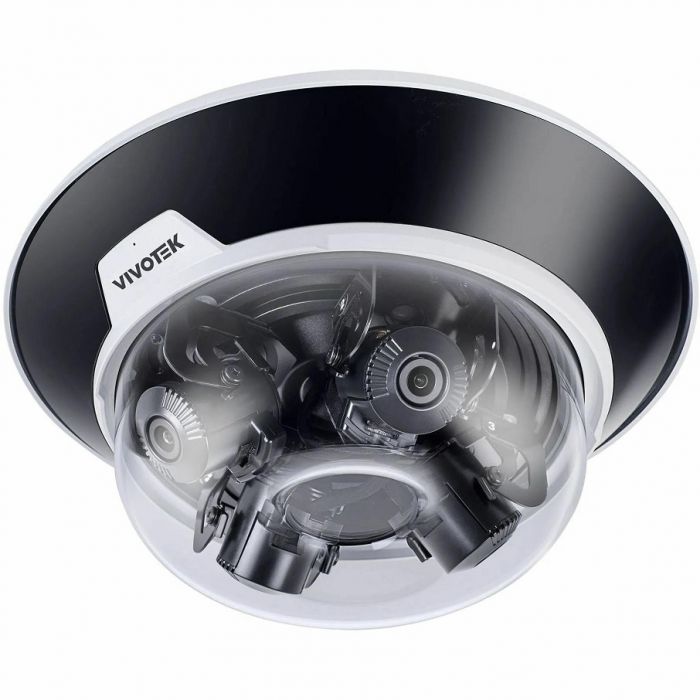

Monitor four different views in an indoor or outdoor area from a single device with the white MA9322-EHTVL 20MP 4-Sensor Network Dome Camera from Vivotek. This multi-sensor camera uses four 1/2.7' 5MP progressive scan CMOS sensors to capture video at a combined resolution of 20MP. IR LEDs provide up to 98 of night vision. The camera is equipped with four 3.7-7.7mm motorized varifocal lenses that each deliver an 88.6 to 40.1° horizontal field of view. Two-way audio is possible thanks to a built-in microphone, along with an audio input and output. A memory card slot accepts microSD/SDHC/SDXC cards up to 1TB (available separately). Integrated PoE technology simplifies connectivity by transferring data and power through a single cable.
Note:
AO-006 cable (available separately) is required for two-way audio.
Multimedia SoC CPU
Removable IR cut filter enables day and night functionality
Supreme Night Visibility (SNV) for low-light conditions
Smart IR technology
H.265, H.264, and MJPEG video compressions
Dual streaming per channel
Two-axis angle adjustments per lens (0 to 105° vertical pivot, ±90° rotation range)
Image settings include: video title and time stamp overlay, video orientation (flip, mirror), day/night settings, illuminators, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, HLM, BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control), AE speed adjustment, WDR, privacy masking, and scheduled profile settings
Built-in microphone with an audio pickup range up to 16
Five-window video motion detection
Additional features include: WDR Pro (120 dB), 60.4 dB S/N ratio, ePTZ that provides 48x digital zoom, live viewing for up to 20 clients, system power and status LED indicators, and seamless recording to microSD/SDHC/SDXC card and NAS
Compatible with Microsoft Windows 10, 8, and 7, Mac 10.12 (Chrome only), Chrome 58.0 or above, Internet Explorer 10 and 11, and VLC 1.1.11 or above
Vivotek MA9322-EHTV-L
Key Specs
| Image Sensor |
1/2.7'-Type CMOS
|
| Focal Length |
3.7 to 7.7mm
|
| Field of View |
Horizontal: 88.6 to 40.1°
Vertical: 61.2 to 28.6° Diagonal: 115.5 to 49.5° |
| Pan/Tilt |
No
|
| Built-In Microphone |
Yes
|
| Power I/O |
1x Barrel
1x RJ45 |
Imaging
| Number of Lenses |
4
|
| Image Sensor |
1/2.7'-Type CMOS
|
| Sensor Resolution |
Effective: 5 Megapixel
|
| IR Cut Filter |
Yes Mechanical
|
| Day/Night |
Yes
|
| DORI Coverage |
With 3.7 to 7.7mm Lens:
Detect: 242.8 to 505 / 74.0 to 153.9 m Observe: 96.1 to 200.4 / 29.3 to 61.1 m Recognize: 48.6 to 101 / 14.8 to 30.8 m Identify: 24.3 to 50.5 / 7.4 to 15.4 m |
Exposure Control
| Minimum Illumination |
0.035 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
3.7 to 7.7mm
|
| Optical Zoom Ratio |
2.1x
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 88.6 to 40.1°
Vertical: 61.2 to 28.6° Diagonal: 115.5 to 49.5° |
| Maximum Aperture |
f/1.9 to 2.9
|
Video
| Max IP Streaming |
via RJ45
2688 x 1920 up to 12 fps 2560 x 1440 up to 30.00 fps |
| Multi-View Streaming |
Yes, 2 Streams
|
Control
| Camera Angle Adjustment |
Vertical: 0 to 105°
Rotation: -90 to 90° |
| Pan/Tilt |
No
|
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
Two-Way
|
| Audio Formats |
G.711, G.726
|
| Built-In Microphone |
Yes
|
| Memory |
4 GB RAM / 1000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Motion Detection (5-Zones)
|
| Built-In Installation Aids |
Remote Focus, Remote Zoom
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| Power I/O |
1x Barrel
1x RJ45 |
| Power Consumption |
25
|
Environmental
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Water-Resistant (IP66)
|
| Startup Temperature |
-22 to 122°F / -30 to 50°C
|
General
| Illumination |
IR LEDs up to 98.4 / 30 m
|
| OS Compatibility |
Windows 7 or Later / macOS 10.12 or Later
|
| Dimensions (W x H x D) |
10.5 x 4.5' / 267 x 114 mm
|
| Weight |
6 lb / 2.7 kg (Body Only)
|
Packaging Info
| Package Weight |
7.97 lb
|
| Box Dimensions (LxWxH) |
13.6 x 13.5 x 8.9'
|
