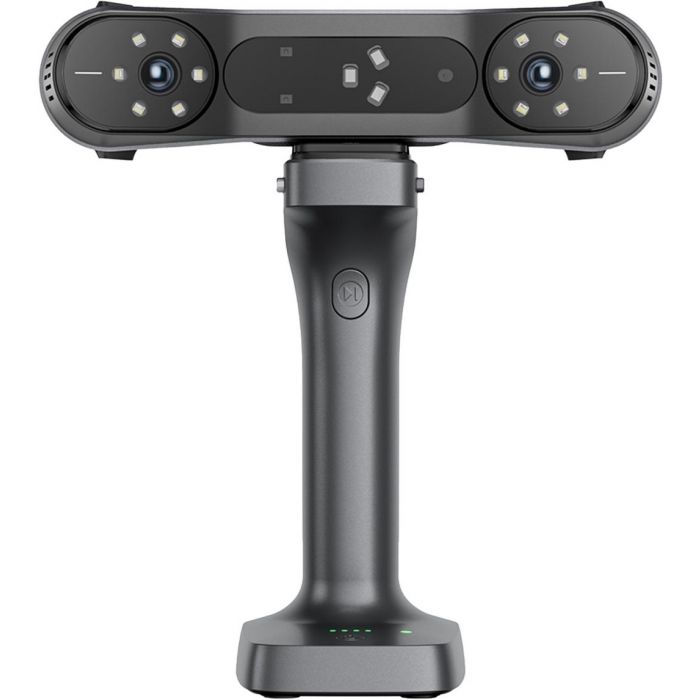

Creality 4008050054 escaner 3d cr-scan raptor x
Antes $106,414.00
Disponible 2 Pzas
| SKu | 4008050054 |
| Tecnología de escaneo: | Híbrida – láser azul + infrarrojo estructurado (NIR) |
| Tipo de escáner: | Portátil, inalámbrico |
| Precisión metrológica: | Hasta 0.02 mm |
| Compatibilidad de objetos: | Desde 5 mm hasta 4000 mm |
| Transmisión de datos: | Vía Wi-Fi 6 (alta velocidad) |
| Precisión (máxima): | Láser 7 líneas: hasta 0.02 mm Láser 34 líneas: hasta 0.02 mm NIR: hasta 0.05 mm |
| Precisión volumétrica: | 0.02 mm + 0.06 mm/m (7 líneas) 0.02 mm + 0.02 mm/m (34 líneas) 0.05 mm + 0.1 mm/m (NIR) |
| Velocidad de escaneo: | 420,000 mediciones/seg (7 líneas) 1,020,000 mediciones/seg (34 líneas) 3,580,000 mediciones/seg (NIR) |
| Distancia de trabajo: | 150 – 400 mm (7 líneas) 200 – 600 mm (34 líneas) 170 – 1000 mm (NIR) |
| Escaneo en exteriores: | Hasta 50,000 lux (7 líneas) Hasta 100,000 lux (34 líneas) Hasta 30,000 lux (NIR) |
| Rango de captura por escaneo: | 270 x 170 mm a 300 mm 341 x 232 mm a 400 mm 397 x 290 mm a 500 mm 452 x 348 mm a 600 mm 665 x 574 mm a 1000 mm (NIR) |
* Mas datos
| Informacion tecnica | |
| Scanning Mode | Blue 7 parallel laser lines Blue 34 crossed laser lines NIR (Infrared binocular structured light) |
| Accuracy |
|
| Volume Accuracy |
|
| Scanning Rate |
|
| 3D Resolution |
|
| Scanning Speed |
|
| Minimum Scanning Volume |
|
| Single Capture Range |
|
| Working Distance |
|
| Color Mapping | Support |
| Alignment Mode |
|
| 30 Imaging Camera Resolution | 1920 x 1200 |
| RGB Color Supplemental Light | 12 white LEDs |
| Outdoor Scanning |
|
| Marker Recognition Enhancement | 12 blue LEDs |
| Laser Safety |
|
| Button | Mechanical |
| IMU | Support |
| Output Format | OBJ/STL/PLY |
| Input Power | 12V 2A |
| Data Interface | Type-C/USB3.0 |
| Calibration Board | High-precision glass calibration board |
| Wireless Scanning | Support |
| System Support | Windows/macOS |
| Operating Temperature | 14-104 Degree F (-10 to 40 Degree C) |
| Operating Humidity | 0-90% RH |
| Dimensions | 8.46 x 1.96 x 2.91' (215 x 50 x 74mm) |
| Weight | 14.28 oz (405g) |
| Scanner Compatibility | CR-Scan Otter, CR-Scan Raptor, Creality RaptorX |
| Wi-Fi Protocols | WiFi6, backward compatible |
| Frequency band | 5GHz |
| Transfer rate | Parallel line mode <=50fps; infrared mode <=30fps |
| Battery Type | Lithium ion battery |
| Battery Type | Lithium ion battery |
| Battery capacity | 5000mAh (2 pcs) |
| Fast charging power | 30W |
| Fast charging protocol | PD/AFC/FCP |
| Charging port | Type-C |
| Communication interface | USB-A/USB3.0 |
| Power supply interface | DC12V/USB5V |
| Mobile phone holder | Magnetic |
| Power switch button | Mechanical |
| Scan switch button | Mechanical |
| Operating temperature | 14-104 Degree F (-10 to 40 Degree C) |
| Operating humidity | 0-90% RH |
| Battery Info | Required, included |
| Battery Material | Lithium ion |
| Battery Quantity | 2 |
| Dimensions | 7.62 x 4.71 x 3.21' (193.7 x 119.8 x 81.7mm) |
| Weight | 15.66 oz (444g) |
| Marca | Otros |
|---|---|
| MPN: | 4008050054 |
