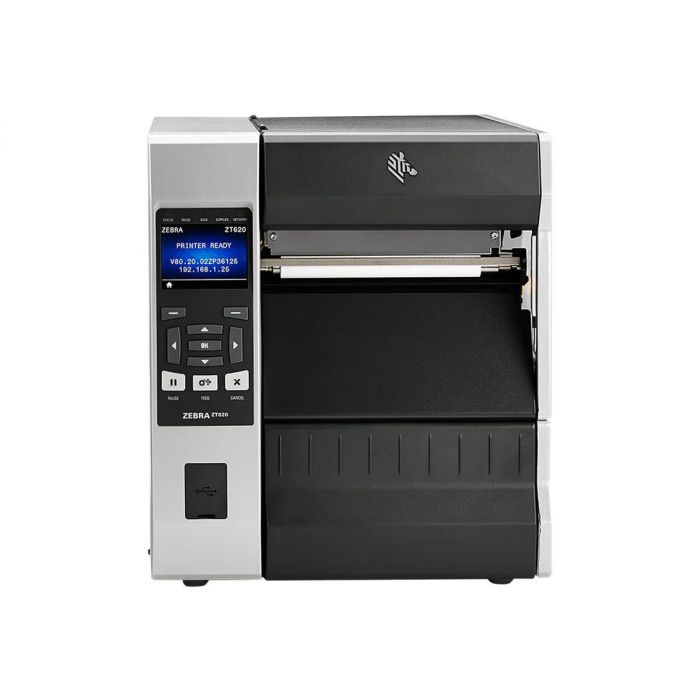

Zebra ZT62063-T110100Z zt620 label printer thermal transfer 300 x dpi wired & wireless ethernet lan bluetooth
Precio especial $148,003.00 IVA incluido + Envio $150 MXN
Antes $171,683.00
Disponible 2 Pzas
Antes $171,683.00
Disponible 2 Pzas
sku: ZT62063-T110100Z
pub
MX0000106045
ZT62063-T110100Z
THE NEXT GENERATION XI SERIES, NOW WITH MORE INTELLIGENCE AND INDUSTRIAL BRAWN
The ZT600 Series advances the legacy of the Xi Series printers to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, the ZT600 Series industrial printers have you covered today – and for years to come.
EXCEPTIONAL PERFORMANCE FROM MICRO LABELS TO HIGH-VOLUME SHIPPING
Boost your productivity with printers that just won’t quit. The ZT600 Series features durable steel structural components that can withstand years of abuse in extreme temperatures, dust, debris and other challenging industrial conditions. Meticulously engineered printing mechanisms provide 24/7 reliability to meet your high-volume production needs. Plus, the ZT610™ offers best-in-class print registration with 600 dpi micro consistent printing.
HASSLE-FREE SETUP, DAILY USE, MAINTENANCE AND TROUBLESHOOTING
From color-illuminated media and ribbon paths that help you identify problems quickly to easy-adjust printhead pressure toggles that feature a scale and color-coded pressure indicators to simplify printer setup and operation, every detail of the ZT600 Series was designed to be user-friendly. Side loading capabilities eliminate the hassles of threading. Onboard sensors, diagnostics and help resources reduce the need for technical support. And guided instructions and feedback prevent common errors and reduce manual adjustments for highly consistent printing.
OPERATIONAL VISIBILITY, REMOTE MANAGEMENT AND FUTURE-READY ADAPTABILITY
The ZT610 and ZT620 are as smart as they are powerful. Zebra’s cloud-accessible Link-OS™ software platform and managed services offerings give you total visibility and control over your printing systems, whether you’re on-site or across the globe. Plus, with two available communication slots, field-installable RFID encoder and media-handling options, and two USB host ports for plug-and-play integration, it’s easy to stay ahead of your evolving business and technology needs, whatever they may be.
The ZT600 Series advances the legacy of the Xi Series printers to combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, the ZT600 Series industrial printers have you covered today – and for years to come.
EXCEPTIONAL PERFORMANCE FROM MICRO LABELS TO HIGH-VOLUME SHIPPING
Boost your productivity with printers that just won’t quit. The ZT600 Series features durable steel structural components that can withstand years of abuse in extreme temperatures, dust, debris and other challenging industrial conditions. Meticulously engineered printing mechanisms provide 24/7 reliability to meet your high-volume production needs. Plus, the ZT610™ offers best-in-class print registration with 600 dpi micro consistent printing.
HASSLE-FREE SETUP, DAILY USE, MAINTENANCE AND TROUBLESHOOTING
From color-illuminated media and ribbon paths that help you identify problems quickly to easy-adjust printhead pressure toggles that feature a scale and color-coded pressure indicators to simplify printer setup and operation, every detail of the ZT600 Series was designed to be user-friendly. Side loading capabilities eliminate the hassles of threading. Onboard sensors, diagnostics and help resources reduce the need for technical support. And guided instructions and feedback prevent common errors and reduce manual adjustments for highly consistent printing.
OPERATIONAL VISIBILITY, REMOTE MANAGEMENT AND FUTURE-READY ADAPTABILITY
The ZT610 and ZT620 are as smart as they are powerful. Zebra’s cloud-accessible Link-OS™ software platform and managed services offerings give you total visibility and control over your printing systems, whether you’re on-site or across the globe. Plus, with two available communication slots, field-installable RFID encoder and media-handling options, and two USB host ports for plug-and-play integration, it’s easy to stay ahead of your evolving business and technology needs, whatever they may be.
Technical Information
| Print quality | |
|---|---|
| Vertical printing | Yes |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 6.61' (16.8 cm) |
| Printing | |
| Rotated printing | Yes |
| Vertical printing | Yes |
| Maximum resolution | 300 x 300 DPI |
| Maximum printing width | 6.61' (16.8 cm) |
| Print technology | Thermal transfer |
| Design | |
| Navigation key | Yes |
| Housing material | Metal |
| Display diagonal | 4.3' |
| Colour display | Yes |
| Display | LCD |
| Product colour | Black, Gray |
| Built-in display | Yes |
| Display | |
| Display diagonal | 4.3' |
| Colour display | Yes |
| Display | LCD |
| Network | |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Memory | |
| Internal memory | 1024 MB |
| Flash memory | 2048 MB |
| Paper handling | |
| Ribbon width | 6.85' (17.4 cm) |
| Ribbon length | 17716.5' (450 m) |
| Media thickness | 0.058 - 0.25 mm |
| Maximum roll diameter | 7.99' (20.3 cm) |
| Core diameter | 3' (7.62 cm) |
| Ports & interfaces | |
| USB 2.0 ports quantity | 3 |
| RS-232 ports | 1 |
| Connectivity technology | Wired & Wireless |
| Bluetooth version | 4.0 |
| Bluetooth | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| USB port | Yes |
| Performance | |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Number of fonts | 16 |
| Ribbon width | 6.85' (17.4 cm) |
| Ribbon length | 17716.5' (450 m) |
| Processor frequency | 800 MHz |
| Plug and Play | Yes |
| Internal memory | 1024 MB |
| Flash memory | 2048 MB |
| Built-in processor | Yes |
| Page description languages | ZPL, ZPL II |
| Power | |
| AC input voltage | 90 - 265 V |
| AC input frequency | 47 - 63 Hz |
| Technical details | |
| Product colour | Black, Gray |
| Built-in barcodes | 1D, 2D, AZTECCODE, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, TLC39, UPC-A, UPC-E |
| Number of fonts | 16 |
| Ribbon width | 6.85' (17.4 cm) |
| Ribbon length | 17716.5' (450 m) |
| Plug and Play | Yes |
| Navigation key | Yes |
| Sustainability certificates | ENERGY STAR |
| Processor | |
| Processor frequency | 800 MHz |
| Built-in processor | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Weight & dimensions | |
| Width | 13.4' (341.4 mm) |
| Depth | 19.9' (505 mm) |
| Height | 15.6' (395.7 mm) |
| Weight | 57.3 lbs (26 kg) |
| Other features | |
| Plug and Play | Yes |
| Navigation key | Yes |
*Otros datos
ZT62063-T110100Z
Zebra ZT620 - Label printer
- direct thermal / thermal transfer
- Roll (17.8 cm)
- 300 dpi
- up to 203 mm/sec
- USB, serial, Gigabit LAN, USB host, NFC, Bluetooth 4.0
- tear bar
| Specifications | |
|---|---|
| Dimensions & Weight / Depth | 50.5 cm |
| Dimensions & Weight / Height | 39.568 cm |
| Dimensions & Weight / Weight | 26 kg |
| Dimensions & Weight / Width | 34.145 cm |
| Header / Brand | Zebra |
| Header / Country Kits | United States |
| Miscellaneous / Product Color |
|
| Networking / Type | Print server |
| Office Machine / Functions | Printer |
| Office Machine / Printing Output Type | Monochrome |
| Office Machine / Printing Technology | Direct thermal / thermal transfer |
| Office Machine / Type | Printer |
| Packaged Quantity | 1 |
| PC Connectivity / PC Connection |
|
| Power Device / Type | Power supply |
| Printer / Connectivity Technology |
|
| Printer / Type | Label printer |
| Scanner / Type | None |
| Dimensions & Weight | |
| Depth | 50.5 cm |
| Height | 39.568 cm |
| Weight | 26 kg |
| Width | 34.145 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Expansion / Connectivity | |
| Connections |
|
| Flash Memory | |
| Flash Memory | 2 GB |
| General | |
| Localization | United States |
| Printer Type | Label printer - direct thermal / thermal transfer - monochrome |
| Media Handling | |
| Max Media Size | Roll (17.8 cm) |
| Max Media Size (Custom) | 178 mm |
| Max Printing Length | 2032 mm |
| Max Printing Width | 168 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (17.8 cm) |
| Media Sizes | Roll (5.1 - 17.8 cm) |
| Media Thickness Range | 0.076 mm - 0.305 mm |
| Media Type | Continuous labels, die cut labels |
| Min Media Size (Custom) | 51 mm |
| Roll Core Diameter | 76 mm |
| Roll Maximum Outer Diameter | 203 mm |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, VCCI, C-Tick, BSMI, EN 61000-3-2, ICES-003, NOM, EN 61000-3-3, EN55024, EN55022 Class B, CCC, IEC 60950-1, KCC, GOST-R, S Mark, cTUVus, UkrSEPRO |
| Features | Clear door |
| Included Accessories | Spindle, bi-fold door |
| Networking | |
| Networking | Print server |
| Power | |
| Frequency Required | 50/60 Hz |
| Power Device | Power supply - internal |
| Power Factor Correction | Yes |
| Printer | |
| Barcodes | Code 93, Industrial 2 of 5, Code 39, Code 49, CODABLOCK, ISBT 128, QR code, MaxiCode, Aztec code, LOGMARS, UPC-A, UPC-E, MicroPDF417, Codabar, Code 11, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, PLANET, TLC39, Plessey, Code 128B, Code 128C, Code 128A, Standard 2 of 5, EAN-8, EAN-13, MSI, RSS-14 |
| Built-in Devices | Status LCD |
| Connectivity Technology | Wireless |
| Cutter | Yes |
| Display Resolution | 240 x 320 |
| Features | Realtime clock, transmissive media sensor, reflective media sensor, tear bar |
| Fonts | CG Triumvirate Bold Condensed, OCR-A, OCR-B |
| Fonts Included |
|
| Interface | USB, serial, Gigabit LAN, USB host, NFC, Bluetooth 4.0 |
| Language Simulation | ZPL, ZPL II, Extensible Mark-up Language (XML) |
| Max Resolution (B&W) | 300 dpi |
| Print Speed | Up to 203 mm/sec - max speed |
| Printer Features | Multi-level Element Energy Equalizer (E3) |
| Styles & Effects | Mirror, rotated text |
| Processor | |
| Processor | Cortex-A9 800 MHz |
| RAM | |
| RAM Installed (Max) | 1 GB |
| Technology / Form Factor | SDRAM |
| RFID | |
| Compliant Standards | EPC Class 1 Generation 2, ISO/IEC 18000-63, RAIN |
| Marca | Zebra |
|---|---|
| MPN: | ZT62063-T110100Z |
