Vertiv CRD100-0D00A liebert crv crd100 - rack air-conditioning cooling system
Precio especial $298,603.00 IVA incluido + Envio $150 MXN
Antes $346,379.00
Disponible 2 Pzas
Antes $346,379.00
Disponible 2 Pzas
sku: CRD100-0D00A
pub
MX0000106030

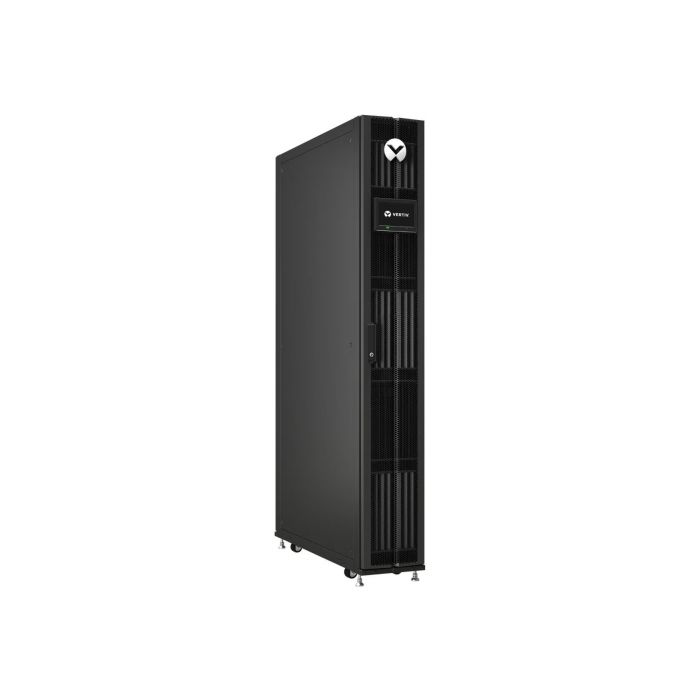

Liebert CRV CRD100 - Rack air-conditioning cooling system
- 208
- 230 V
Row-based Cooling Unit with Scalable Cooling Capacity
The Vertiv Liebert CRV 10 kW is an in-row cooling unit designed for edge applications, and similar small network spaces. This 208 v/230 v, row-based, direct expansion cooling unit delivers scalable capacity in a minimal footprint fit for tight spaces. It has an inverter driven compressor that allows this server rack cooling unit to scale down from 10 kW to 2 kW, so the CRV will only use as much energy as needed by your business. Variable speed EC fans automatically modulate airflow, further improving energy efficiency by providing only as much airflow as needed by the IT equipment in real time. You will also get peace of mind from wellness alerts, and the unit is ready for several remote monitoring protocols like SNMP, HTTP, Modbus, and BACnet.- Available in single phase option for common Edge applications and similar small network closet spaces
- 10 kW (34000 BTU) air conditioner in a minimal footprint. (H x D x W Dimension in inches: 78.7 x 44.6 x 11.8).
- Frame extensions to align CRV with 86.6-inch tall racks or 48.5 in deep racks are available as accessories
- Adjustable Air Baffles help direct cold air where you need it to go, so you can eliminate hotspots easier and improve the effectiveness of your small data center cooling equipment
- Comes with 7-inch touchscreen display equipped with user-friendly Vertiv Liebert iCOM control to keep you informed of status and potential issues
- Can be used on raised and non-raised floors. It has casters and leveling feet for easy positioning and installation on uneven surfaces
- Comes with pre-piping and electrical connections on both the top and bottom of the unit for installation flexibility.
- UL listed, RoHS-certified and comes with a one-year warranty
- Note: Must be purchased with a Vertiv Liebert CCD100S-00A outdoor condenser
Adjustable Air Baffle
Hotspot elimination is made easier by using the adjustable air baffles in the Vertiv Liebert CRV 10 kW. By pointing the baffle where your IT gear needs the cold airflow, you can make sure you target the hotspots as accurate as possible. This feature also provides flexibility in row placement since you can place it in the middle of the row or at the ends of the row.iCOM Control
This server rack cooling unit has a 7-inch touchscreen display with the user-friendly Vertiv Liebert iCOM control, which helps make sure that you are informed of room condition and unit performance. It also sends wellness alerts in advance of potential issues so you can prevent problems related to the cooling unit. CRV is also ready for remote monitoring and management protocols like SNMP, HTTP, and BACnet,EDGE
Choosing a cooling unit for your Edge location can be a challenge, especially since these small IT spaces have seen a continuous increase in demand and you may always see an increase in your cooling needs as well. But with its inverter driven compressor that can scale its capacity from 2 kW to 10 kW, the Vertiv Liebert CRV is ready to adapt to the ever-changing demands of your business.OFFICE IT
Most small to medium sized offices now typically house a server room or a small network closet that will need a reliable cooling unit that can fit into a small space. The Vertiv Liebert CRV, which is a 10 kW (34000 BTU) air conditioner, delivers high sensible cooling capacity in a minimal footprint. It is also designed for installation flexibility, so it can be deployed in locations outside the traditional data center. whitespace.EDUCATION
Educational institutions have started to embrace the digital age so they can better handle important data like student information, digital libraries, and online modules. Ensuring that the servers storing these data receive the necessary cooling is crucial. With remote monitoring features and wellness alarms, the Vertiv Liebert CRV can send its operators a message about potential threats and prevent unnecessary downtime.CRD100
- Cooling Capacity: 10 kW (34100 BTU)
- Capacity Modulation: 20-100%
- Input Voltage: 208 v/230 v
- Phase: Single Phase
- Communications: SNMP| HTTP| Modbus| BACnet
- Approvals: UL
- Dimensions (H x D x W in mm)/ ** - with optional frame extensions: 2000/2200** x 1132/1232** x 300 mm
- Dimensions (H x D x W in inches) ** - with optional frame extensions: 78.7/86.6** x 44.6/48.5** x 11.8 in
| Specifications | |
|---|---|
| Dimensions & Weight / Depth | 113.2 cm |
| Dimensions & Weight / Height | 200 cm |
| Dimensions & Weight / Width | 30 cm |
| Header / Brand | Liebert |
| Header / Country Kits | Americas |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Product Type | Rack air-conditioning cooling system |
| General | |
| Depth | 113.2 cm |
| Height | 200 cm |
| Localization | Americas |
| Product Type | Rack air-conditioning cooling system |
| Voltage Required | 208 - 230 V |
| Width | 30 cm |
| Miscellaneous | |
| Compliant Standards | UL |
| Features | Air filter, SNMP support, dual power supply, R410a refrigerant, 7' touch LCD display, 10 kW cooling capacity, single-phase |
| Marca | Vertiv |
|---|---|
| MPN: | CRD100-0D00A |
