Axis 02740-004 t8154 midspan - poe injector (internal)
Precio especial $4,222.00 IVA incluido + Envio $150 MXN
Antes $4,898.00
Disponible 16 Pzas
Antes $4,898.00
Disponible 16 Pzas
sku: 02740-004
pub
MX0000106025
02740-004

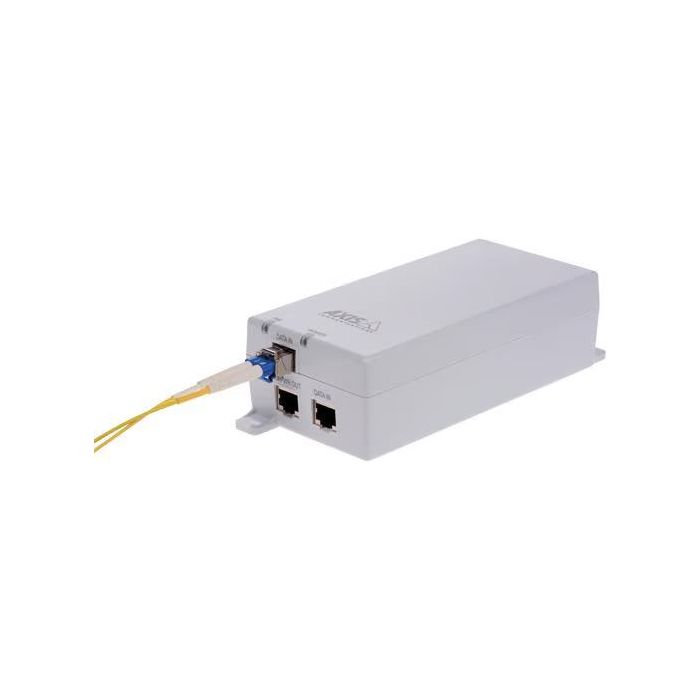

AXIS T8154 60 W SFP Midspan
AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
AXIS T8154 60 W SFP Midspan is a compact, plug-and-play media converter with PoE. With its integrated power supply, it minimizes the amount of cabling and facilitates installation. AXIS T8154 offers data input through SFP or RJ45, and delivers High PoE 60 W. It works with all Axis network products supporting Power over Ethernet.
Technical Information
| Features | |
|---|---|
| Brand compatibility | Axis |
| Type | Midspan |
| Compatibility | M1055-L, M1075-L, M1135-E Mk II, M1135 Mk II, M1137 Mk II, M1137-E Mk II, P1375-E, P1375, P1377, P1377-LE, P1378, Q1615 Mk III, Q1615-LE Mk III, Q1656-B, Q1656, Q1656-BE, Q1656-BLE, Q1656-LE, Q1659, M2035-LE, M2036-LE, P1465-LE, P1455-LE, P1465-LE-3, P1467-LE, Q1700-LE, P1468-LE, Q1715, Q1786-LE, M3057-PLVE Mk II, M3077-PLVE, M3086-V, M3085-V, M3088-V, M3115-LVE, M3215-LVE, M3116-LVE, M3216-LVE, M3905-R, M4215-V, M4215-LV, M4216-LV, M4216-V, M4218-V, M4218-LV, M4308-PLE, P3255-LVE, P3265-LV, P3265-LVE-3, P1378-LE, P3265-LVE, P3265-V, P3267-LVE, P3267-LV, P3268-LV, P3268-LVE, P3727-PLE, P3719-PLE, P3807-PVE, P3904-R Mk II, P3818-PVE, P3827-PVE, P3905-R Mk II, P3925-LRE, P3935-LR, P3925-R, P4705-PLVE, P4707-PLVE, Q3536-LVE, Q3538-LVE, Q3538-SLVE, Q3628-VE, Q3626-VE, Q3819-PVE, Q9216-SLV, P9106-V |
| Product colour | White |
| Certification | IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4 |
| LED indicators | Yes |
| Networking standards | IEEE 802.3bt |
| Ports & interfaces | |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Power | |
| Output voltage | 55 V |
| Input voltage | 100-240 V |
| Rated power | 60 W |
| Input frequency | 50/60 Hz |
| Power source type | AC |
| Weight & dimensions | |
| Width | 3.15' (80 mm) |
| Weight | 18.2 oz (517 g) |
| Height | 1.97' (50 mm) |
| Depth | 7.24' (184 mm) |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quick installation guide | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -50 - 50 °C |
| Technical details | |
| Doesn’t contain | PVC |
| Certificates | |
| Certification | IEC/EN/UL 60950-1, EN 62368-1, KC, CCC, CB, S-Mark, GS Mark per EN 60950-1, EN 55032 Class A, EN 61000 3-2, EN 61000 3-3, EN 55035, FCC Part 15 Subpart B Class A, VCCI Class A, RCM AS/NZS CISPR32 Class A, KCC KN32 Class A, KN35, EN 61000–6-1, EN 61000–6–2, EN 50121–4, IEC 62236-4 |
| Marca | Axis |
|---|---|
| MPN: | 02740-004 |
