Axis 02539-001 grabadore de vídeo en red (nvr) gris
Precio especial $61,782,431.00 IVA incluido + Envio $150 MXN
Antes $71,667,620.00
Disponible 3 Pzas
Antes $71,667,620.00
Disponible 3 Pzas
sku: 02539-001
pub
MX0000106018
02539-001
Descripción
Este servidor de grabación seguro y ampliable consta de eficaces componentes. Ofrece un rendimiento alto y es compatible con aplicaciones y características muy eficaces. Incluye licencias de AXIS Camera Station y varias configuraciones RAID, lo que permite que el almacenamiento sea flexible y una configuración de redundancia múltiple. Un módulo de plataforma de confianza con certificación FIPS 140-2 de nivel 2 garantiza el almacenamiento seguro de todas las claves y certificados criptográficos. Está disponible en tres versiones con distintas opciones de almacenamiento y se suministra con software instalado y configurado. Por otra parte, todos los productos compatibles están disponibles en una sola lista de precios y se pueden comprar en el mismo lugar. Ofrece, entre otros, servicios para usar el disco duro propio, soporte in situ el día laboral siguiente y garantía de 5 años.
Technical Information
| Desempeño | |
|---|---|
| Función de copia de seguridad | No |
| Sistema operativo instalado | Windows 10 IoT Core |
| Disco duro | |
| Compatibilidad con RAID | Si |
| Niveles RAID | 0, 1, 5, 6, 10 |
| Medios de almacenaje | |
| Compatibilidad con RAID | Si |
| Niveles RAID | 0, 1, 5, 6, 10 |
| Puertos e Interfaces | |
| Ethernet LAN (RJ-45) cantidad de puertos | 2 |
| Niveles RAID | 0, 1, 5, 6, 10 |
| Cantidad de puertos USB 2.0 | 2 |
| Características | |
| Color del producto | Gris |
| Control de energía | |
| Voltaje de entrada AC | 100 - 240 V |
| Frecuencia de entrada AC | 50 - 60 Hz |
| Condiciones ambientales | |
| Intervalo de temperatura operativa | 10 - 35 °C |
| Intervalo de humedad relativa para funcionamiento | 20 - 80% |
| Intervalo de temperatura de almacenaje | -40 - 65 °C |
| Peso y dimensiones | |
| Ancho | 721,6 mm |
| Profundidad | 482 mm |
| Altura | 87 mm |
| Peso | 20,8 kg |
*Mas datos

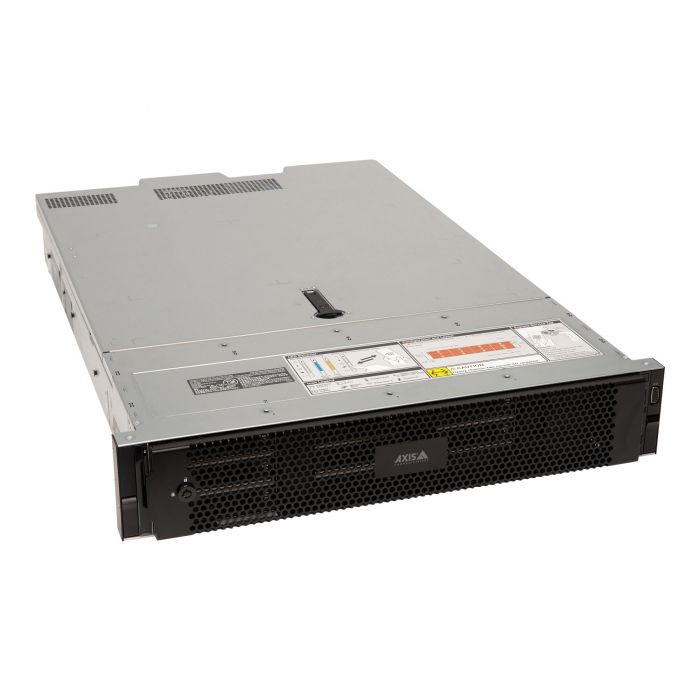

AXIS Camera Station S1264 Recorder
AXIS Camera Station S1264 Recorder
- Server
- rack-mountable
- 2U
- 1 x Xeon Silver up to
- RAM 16 GB
- hot-swap
- HDD 6 x 4 TB, SSD 240 GB
- Gigabit Ethernet
- Win 10 IoT Enterprise 2021 LTSC
- monitor: none
| Specifications | |
|---|---|
| Chassis / Form Factor | Rack-mountable |
| Chassis / Server Storage Bays | Hot-swap |
| Dimensions & Weight / Depth | 72.162 cm |
| Dimensions & Weight / Height | 8.7 cm |
| Dimensions & Weight / Weight | 20.8 kg |
| Dimensions & Weight / Width | 48.2 cm |
| Display / Type | None. |
| Hard Drive / Capacity | 4 TB |
| Header / Brand | Axis |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Networking / Data Link Protocol |
|
| Optical Storage / Drive Type | No optical drive |
| Optical Storage / Type | None |
| OS Provided / Type | Windows 10 IoT Enterprise 2021 LTSC |
| Packaged Quantity | 1 |
| Processor / Manufacturer | Intel |
| Processor / Type | Xeon Silver |
| Service & Support / Type | 5-year warranty |
| System / Hard Drive Capacity | 24.24 TB |
| System / Type | Server |
| Dimensions & Weight | |
| Depth | 72.162 cm |
| Height | 8.7 cm |
| Weight | 20.8 kg |
| Width | 48.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% RH (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Hot-Swap Bays Qty | 12 |
| Localization | Region: Argentina, Australia, Japan, India, Korea, Brazil, United Kingdom, United States, Europe |
| Product Form Factor | Rack-mountable - 2U |
| Type | Server |
| Hard Drive | |
| Capacity | 6 x 4 TB |
| Features | RAID 5 - factory configured, Enterprise Class |
| Type | HDD - hot-swap |
| Hard Drive (2nd) | |
| Capacity | 1 x 240 GB |
| Type | SSD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | BSMI, EN 61000-3-2, EN 61000-3-3, EN55024, FIPS 140-2 Level 2, EMC, ICES-003 Class A, EN 62311, NOM-019-SCFI-1998, AS/NZS CISPR 32 Class A, EN 55032 Class A, IEC/EN/UL 60950-1, EN 55035, IEC/EN/UL 62368-1, NDAA, KS C 9832 Class A, KS C 9835 |
| Included Accessories | ReadyRails sliding rails |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | 80 validated video channels |
| Operating System / Software | |
| OS Provided | Windows 10 IoT Enterprise 2021 LTSC |
| Software | AXIS Camera Station (64 channels license) |
| Optical Storage | |
| Type | No optical drive |
| Power | |
| Device Type | Power supply - hot-plug |
| Installed Qty | 2 |
| Power Provided | 800 Watt |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Processor / Chipset | |
| CPU | Intel Xeon Silver |
| CPU Qty | 1 |
| RAM | |
| Configuration Features | 2 x 8 GB |
| Installed Size | 16 GB |
| Storage Controller | |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Type | RAID |
| Marca | Axis |
|---|---|
| MPN: | 02539-001 |
