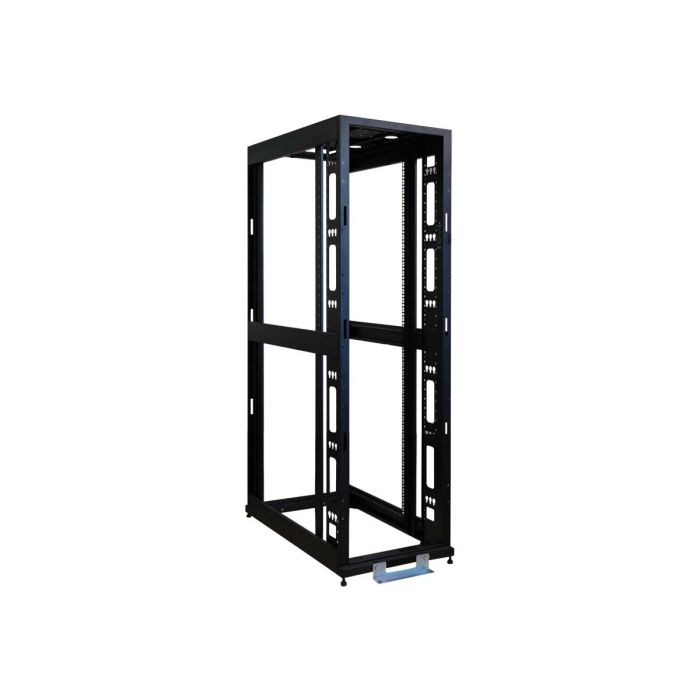

Tripp-Lite SR42UBMDEXPND eaton rack cabinet 42u freestanding black
Precio especial $201,225.00 IVA incluido + Envio $150 MXN
Antes $233,421.00
Disponible 1 Pzas
Antes $233,421.00
Disponible 1 Pzas
sku: SR42UBMDEXPND
pub
MX0000105933
SR42UBMDEXPND
The SR42UBMDEXPND offers 36 inches (927 millimeters) of depth opposed to the standard 42 inches.
The SR42UBMDEXPND is a 42U SmartRack® enclosure with no doors and no side panels. The ’EXP’ version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
The SR42UBMDEXPND houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 28.75 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
All components of the SR42UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.
To simplify deployment, the SR42UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
The SR42UBMDEXPND is a 42U SmartRack® enclosure with no doors and no side panels. The ’EXP’ version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.
The SR42UBMDEXPND houses 3,000 pounds (1360.8 kilograms) of standard 19-inch rack equipment in 42U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from four to 28.75 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.
All components of the SR42UBMDEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.
To simplify deployment, the SR42UBMDEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: The casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.
Technical Information
| Weight & dimensions | |
|---|---|
| Package volume | 69400 cm³ |
| Package depth | 37.8' (960.1 mm) |
| Package width | 26' (660.4 mm) |
| Package height | 85' (2159 mm) |
| Width | 23.6' (600.2 mm) |
| Depth | 32.3' (820 mm) |
| Height | 78.5' (1993.9 mm) |
| Weight | 103 lbs (46.7 kg) |
| Maximum weight capacity | 3000.5 lbs (1361 kg) |
| Features | |
| Frame type | Open |
| Product design | 4-post |
| Rack capacity | 42U |
| Maximum weight capacity (rolling) | 2250.9 lbs (1021 kg) |
| Type | Freestanding rack |
| Maximum weight capacity | 3000.5 lbs (1361 kg) |
| Product colour | Black |
| Certification | UL 60950-1 |
| Packaging data | |
| Package volume | 69400 cm³ |
| Package depth | 37.8' (960.1 mm) |
| Package width | 26' (660.4 mm) |
| Package height | 85' (2159 mm) |
| Technical details | |
| Package width | 26' (660.4 mm) |
| Package height | 85' (2159 mm) |
| Type | Freestanding rack |
| Warranty period | 5 year(s) |
| Compliance certificates | CE, RoHS, UKCA |
| Rack capacity | 42U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | UL 60950-1 |
*Otros datos
SR42UBMDEXPND
Tripp Lite 42U 4-Post Open Frame Rack Cabinet 36' Depth No Sides or Doors
- Rack
- open frame
- 4-post
- black
- 42U
- 19
| Specifications | |
|---|---|
| Dimensions & Weight / Depth | 92.7 cm |
| Dimensions & Weight / Height | 199 cm |
| Dimensions & Weight / Weight | 46.7 kg |
| Dimensions & Weight / Width | 60 cm |
| Header / Brand | Tripp Lite |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Product Type | Rack |
| Service & Support / Type | 5-year warranty |
| General | |
| Color | Black |
| Depth | 92.7 cm |
| Height | 199 cm |
| Height (Rack Units) | 42U |
| Product Type | Rack |
| Rack Post Qty | 4-post |
| Rack Size | 19' |
| Rack Type | Open frame |
| Weight | 46.7 kg |
| Width | 60 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty: - 5 years |
| Miscellaneous | |
| Compliant Standards | EIA-310-E, NOM, UL 60950, RoHS, DIN 41494, IEC 60297-3-100 |
| Features | Casters |
| Mounting Kit | Included |
| Weight Limit | 1361 kg |
| Marca | Otros |
|---|---|
| MPN: | SR42UBMDEXPND |
