Eaton 170M5463 fusible semiconductor tubo de ceramica europeo 700a 690v 2bkn50 ar uc
Precio especial $1,490.00 IVA incluido + Envio $150 MXN
Antes $1,728.00
Disponible 6 Pzas
Antes $1,728.00
Disponible 6 Pzas
sku: 170M5463
pub
MX0000105879
170M5463

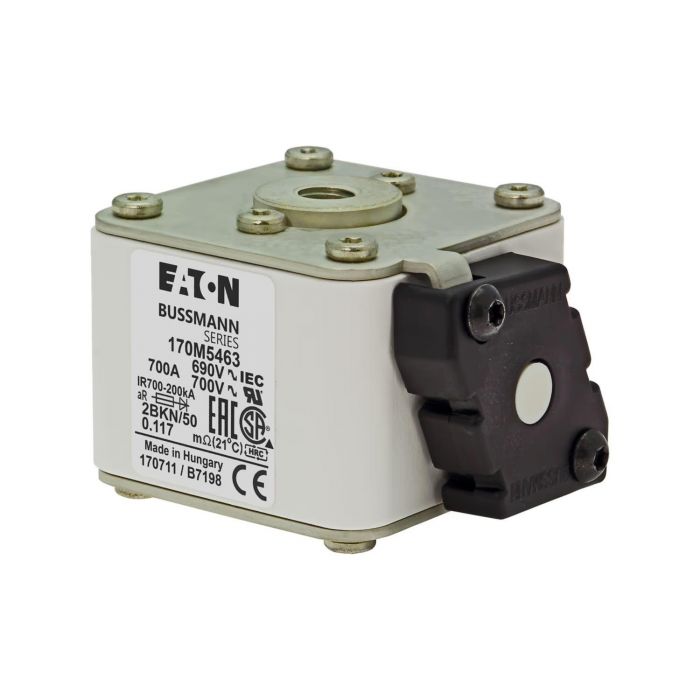

Fuse-link, high speed, 700 A, AC 690 V, size 2, aR, IEC, UL, single indicator
| General Specifications | |
|---|---|
| Product Name |
Eaton Bussmann series high speed square body fuse
|
| Catalog Number |
170M5463
|
| UPC |
051712815314
|
| EAN |
5027590457316
|
| Product Length/Depth |
77 mm
|
| Product Height |
59 mm
|
| Product Width |
51 mm
|
| Product Weight |
558 g
|
| Compliances |
CE Marked
RoHS Compliant |
| Certifications |
UL Recognized
IEC Rated |
| Especificaciones del producto | |
| Amperage Rating |
700 A
|
| Voltage rating |
690 V (IEC), 700 V (UL)
|
| Voltage type |
AC
|
| Clearing (I2T) |
405000 at 660 V
|
| Pre arc (I2T) |
60500
|
| Watt losses |
95 W
|
| Breaking capacity |
200 kA
|
| Class |
Class aR
|
| Especificaciones del producto | |
| Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
| Fuse type |
Flush end
BKN/Type K Indicator for Micro |
| Fuse indicator |
Centre fuse status indicator
|
| Fuse size |
2
|
| Fitted with: |
Type K Indicator for micro
|
| Marca | Eaton |
|---|---|
| MPN: | 170M5463 |
