Eaton 170M5464 fusible semiconductor tubo de ceramica europeo 800a 690v 2bkn50 ar uc
Precio especial $1,760.00 IVA incluido + Envio $150 MXN
Antes $2,042.00
Disponible 6 Pzas
Antes $2,042.00
Disponible 6 Pzas
sku: 170M5464
pub
MX0000105878
170M5464

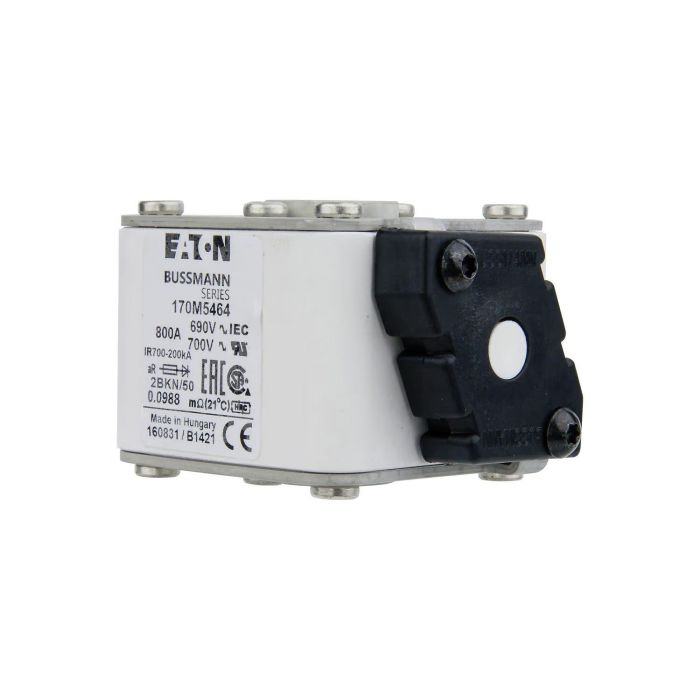

Fuse-link, high speed, 800 A, AC 690 V, size 2, aR, IEC, UL, single indicator
General Specifications | |
---|---|
Product Name |
Eaton Bussmann series high speed square body fuse
|
Catalog Number |
170M5464
|
UPC |
051712217224
|
EAN |
5027590457330
|
Product Length/Depth |
77 mm
|
Product Height |
59 mm
|
Product Width |
51 mm
|
Product Weight |
564 g
|
Compliances |
CE Marked
RoHS Compliant |
Certifications |
IEC Rated
UL Recognized |
Especificaciones del producto | |
Amperage Rating |
800 A
|
Voltage rating |
690 V (IEC), 700 V (UL)
|
Voltage type |
AC
|
Clearing (I2T) |
575000 at 660 V
|
Pre arc (I2T) |
86000
|
Watt losses |
105 W
|
Breaking capacity |
200 kA
|
Class |
Class aR
|
Especificaciones del producto | |
Application |
Semiconductor, DC Common bus, DC drives, power converters/rectifiers
|
Fuse type |
Flush end
BKN/Type K Indicator for Micro |
Fuse indicator |
Centre fuse status indicator
|
Fuse size |
2
|
Fitted with: |
Type K Indicator for micro
|
Marca | Eaton |
---|---|
MPN: | 170M5464 |
