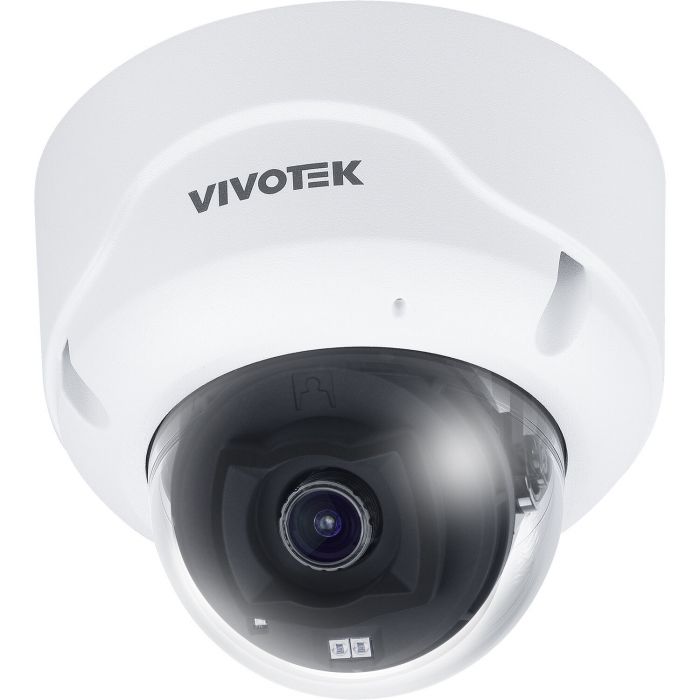

This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X, and IK10-rated enclosure that is suitable for safe outdoor use in areas at high risk of vandalism.
- Multimedia SoC CPU
- Removable IR cut filter enables day and night functionality
- ePTZ with 48x digital zoom
- Built-in microphone picks up audio from up to 16 away
- WDR Pro
- Image settings include white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, EIS (built-in gyro sensor), and scene mode (auto, deblur)
- Exposure modes include BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, and WDR
- Video title and time stamp overlay, video orientation (flip, mirror, rotation), and day/night settings
- Analytics include Vision Object Analytics (people/vehicle classification/attribute extraction), five-window video motion detection, people detection, vehicle detection, time filter, and Smart VCA (intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, and crowd detection)
- Live viewing for up to ten clients
- 3-year free trial of Trend Micro IoT Security (brute force attack event, cyberattack event, and quarantine event)
- Compatible with Microsoft Windows 10, 8, and 7, macOS 10.12 (Chrome only), Chrome 58.0 or higher, and VLC 1.1.11 or higher
- System power and status LED indicators
Key Specs
| Image Sensor |
1/1.8'-Type CMOS
|
| Focal Length |
4.2mm
|
| Field of View |
Horizontal: 110.74°
Vertical: 59.1° Diagonal: 131° |
| Built-In Microphone |
Yes
|
| Power I/O |
1x RJ45
|
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/1.8'-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel
|
| IR Cut Filter |
Yes
|
| Day/Night |
Yes
|
| DORI Coverage |
With 4.2mm Lens:
Detect: At 280.5 / 85.5 m Observe: At 112.2 / 34.2 m Recognize: At 56.1 / 17.1 m Identify: At 27.9 / 8.5 m |
Exposure Control
| Shutter Speed |
1/32000 to 1/5 Second
|
| Signal-to-Noise Ratio |
54 dB
|
| Minimum Illumination |
0.015 Lux (Color)
0 Lux (Black and White) |
Lens
| Focal Length |
4.2mm
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 110.74°
Vertical: 59.1° Diagonal: 131° |
| Maximum Aperture |
f/1.6
|
Video
| Max IP Streaming |
H.264, H.265, MJPEG via RJ45
3840 x 2160 up to 30.00 fps |
| Multi-View Streaming |
Yes, 3 Streams
|
Control
| Camera Angle Adjustment |
Horizontal: 0 to 350°
Vertical: 0 to 80° Rotation: 0 to 350° |
Networking
| Security |
Digest Authentication, HTTPS, IEEE 802.1X, Password Protection, User Access Log
|
| Supported Protocols |
ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, ONVIF Profile G, ONVIF Profile S, ONVIF Profile T, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SFTP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP
|
Interface
| Media/Memory Card Slot |
Single Slot: microSD/microSDHC/microSDXC [1 TB Maximum]
|
| Other I/O |
1x RJ45
|
| 1- or 2-Way Audio |
One-Way
|
| Audio Formats |
AAC-LC, G.711, G.726, MP2
|
| Built-In Microphone |
Yes
|
| Memory |
2 GB RAM / 8000 MB Flash
|
| External Storage Options |
NAS
|
System Integration
| Analytics |
Abandoned Object, Crowd Gathering, Face Detection, Intrusion Detection, Loitering, Motion Detection, Object Detection, Object Removal, People Detection, Vehicle Detection, Virtual-Line Crossing Detection
|
| Built-In Installation Aids |
Pixel Counter
|
Sensors & Alarms
| Event Trigger |
Yes
|
| Event Action |
Recording, Notification, Alarm
|
| Alarm I/O |
No
|
Power
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45
|
| Power Consumption |
PoE: 12.4 W with IR On
PoE: 9.6 W with IR Off |
Environmental
| Operating Conditions |
-31 to 140°F / -35 to 60°C up to 98% Humidity
|
| Impact Resistance |
Impact-Resistant (IK10)
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Startup Temperature |
-4 to 122°F / -20 to 50°C
|
General
| Certifications |
BIS, BSMI, CB, CE, EN, FCC, IC, ICES, IEC/EN, NEMA, RCM, UKCA, UL, VCCI
|
| Illumination |
4x IR LEDs up to 131.2 / 40 m
|
| OS Compatibility |
Windows 7 to 10 / macOS 10.12 Only
|
| Dimensions (W x H x D) |
5.3 x 4.6 x 5.3' / 134 x 116 x 134 mm
|
| Weight |
2.1 lb / 960 g (Body Only)
|
