Eaton CH350 int.termomagnetico 3p 50a. (f)
Precio especial $1,432.00 IVA incluido + Envio $150 MXN
Antes $1,661.00
Disponible 6 Pzas
Antes $1,661.00
Disponible 6 Pzas
sku: CH350
pub
MX0000105839
CH350

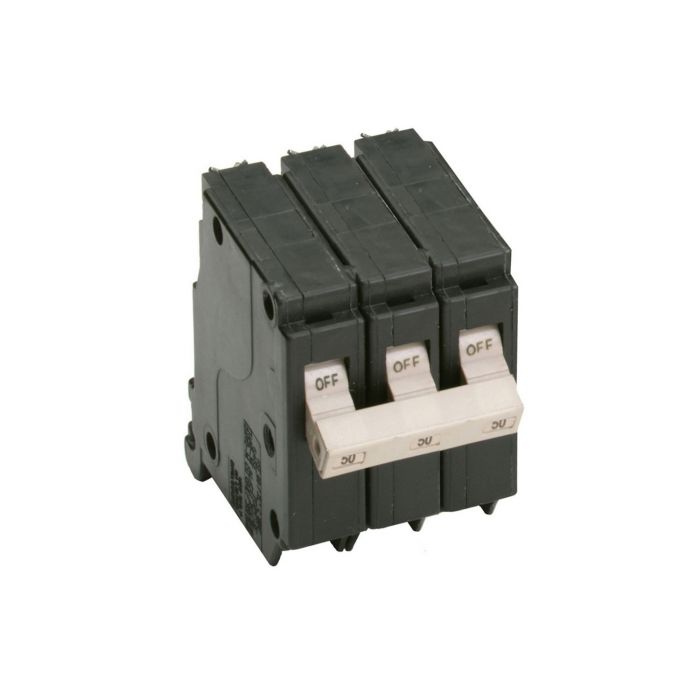

Eaton CH thermal magnetic circuit breaker,Type CH 3/4-Inch standard circuit breaker,50 A,10 kAIC,Three-pole,240V,CH,Common breaker trip,#10-1/0 AWG Cu/Al,CH,Type CH Loadcenters
General Specifications | |
---|---|
Product Name |
Eaton CH thermal magnetic circuit breaker
|
Catalog Number |
CH350
|
UPC |
782113102092
|
Product Length/Depth |
2.2 in
|
Product Height |
2.6 in
|
Product Width |
3.2 in
|
Product Weight |
0.95 lb
|
Certifications |
UL 489
|
Catalog Notes |
HACR rated, Three-Pole 240V Common Trip Requires Three 3/4-Inch Spaces
|
Especificaciones del producto | |
Used with |
Type CH Loadcenters
|
Type |
Type CH 3/4-Inch standard circuit breaker
|
Amperage Rating |
50 A
|
Voltage rating |
240 V - 240 V
|
Trip Type |
Common breaker trip
|
Circuit breaker type |
CH
|
Interrupt rating |
10 kAIC
|
Main circuit breaker |
CH
|
Wire size |
#10-1/0 AWG Cu/Al
|
Number of poles |
Three-pole
|
Marca | Eaton |
---|---|
MPN: | CH350 |
