Key Features
- For Use with 1/3' Cameras
- Supports Cameras with up to 3MP
- For High-quality Image Surveillance
- Zoom - 3.3x
- Focal Length - 15-50mm
- Resolving Power up to 100 lines/mm
- CS Mount-type
- Aspherical Elements
- Supports Pelco Sarix Cameras
- Slip Mechanism
- Supports 1/3' format cameras with 3 megapixels or less
- Zoom - 3.3x
- Focal length of 15-50 mm
- Provides optimal results when used in cameras with megapixel sensors
- Offers high-quality images from the image center to the image corner
- Suitable for high precision image surveillance
- Resolving power of up to 100 lines per millimeter
- Wide field-of-view - vertical 14°, horizontal 18°, and diagonal 23°
- Tele field-of-view - vertical 4.2°, horizontal 5.6°, and diagonal 6.9°
- Includes a standard 4-pin plug
- CS mount-type
- Relative aperture size - f/1.5 and f/2.2
- Supports Pelco Sarix cameras
- Aspherical elements reduces the level of distortions
- Slip mechanism for easily adjusting and orienting the lens inside the enclosure and dome
- Minimum object distance - 0.8m

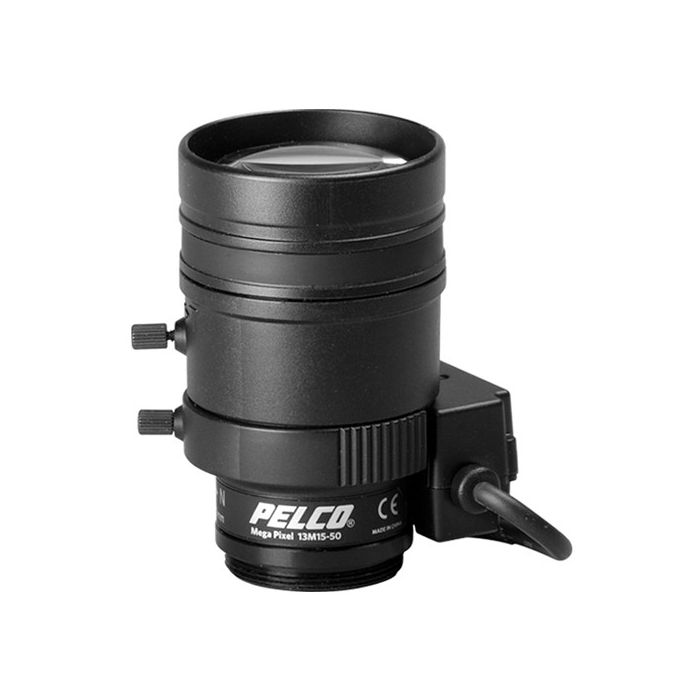

Pelco 13M15-50 Specs
| Imager Size |
1/3'
|
| Mount Type |
CS
|
| Focal Length |
15-50mm
|
| Aperture |
F1.5-2.2
|
| Iris Operation |
DC iris
|
| Image Size |
6mm diameter
|
| Focus Operation |
Manual
|
| Angle of View |
Wide Vertical: 14°
Wide Horizontal: 18° Wide Diagonal: 23° Tele Vertical: 4.2° Tele Horizontal: 5.6° Tele Diagonal: 6.9° |
| Minimum Object Distance (M.O.D.) |
0.8 m
|
| Filter Size |
N/A
|
| Flange Focal Distance |
12.5mm
|
| Operating Temperature |
14 - 122°F (-10 ~ +50°C)
|
| Dimensions |
1.5 x 1.8 x 2.3' (3.8 x 4.6 x 5.9cm)
|
| Weight |
0.13 lbs (0.06kg)
|
Packaging Info
| Package Weight |
0.2 lb
|
| Box Dimensions (LxWxH) |
3.9 x 2.6 x 2.5'
|
