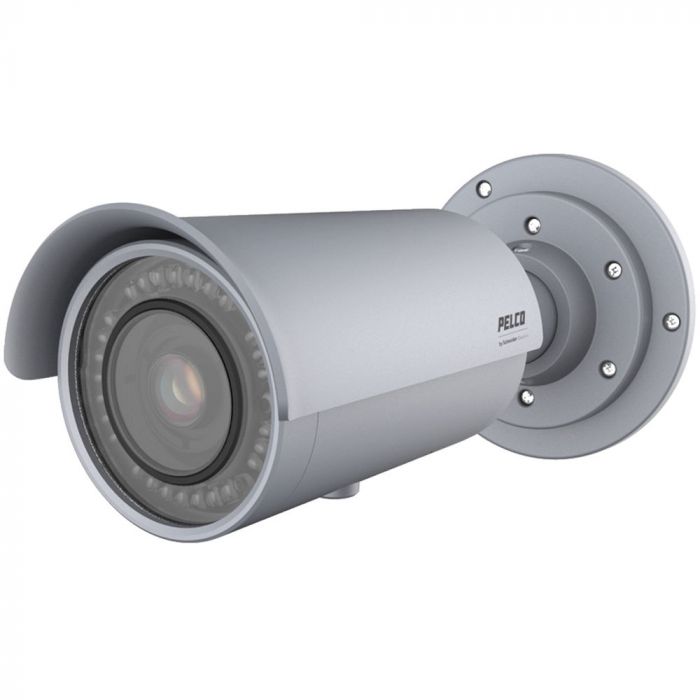

The IBP319-ER Bullet Camera supports up to 2 simultaneous video streams and a third service stream. The 2 streams can be compressed with efficient H.264 High or Main profiles or MJPEG formats. The streams can be configured to a variety of frame rates and bit rates to optimize image quality with bandwidth and storage efficiency.
In addition, the camera features onboard edge storage with a microSD card (sold separately). Video clips of varying lengths can be stored to the card upon alarm, or video can be written continuously to the microSD card in the case of network outage. Video can be retrieved from the card through the FTP protocol.
Simple motion detection algorithms allow the camera to record or trigger an alarm when motion is detected in a selected zone or with the entire scene. A camera sabotage alarm is triggered if the lens is obstructed or when the camera is repositioned. It seamlessly connects to Pelco video management systems such as Endura version 2.0 (or later) and Digital Sentry version 7.3 (or later). It also integrates with major third-party video management systems through the open Pelco API and other third-party software and systems through the open ONVIF Profile S standard.
A standard Web browser interface allows for easy remote setup and administration. Controls are optimized for convenient one-step camera configuration for features including color, exposure, flicker control, and streaming.
- Maximum resolution up to 2048 x 1536 (3.1MP) resolution
- Up to 20 images per second (ips) at 1080p
- Autofocus motorized remote varifocal zoom lens
- Advanced low-light capability with sensitivity down to 0.0 lux in the night mode with integrated adaptive IR illumination
- Dual analytics
- Easy to install
- Accurate color reproduction
- Accessible edge storage with micro SDXC card
- Motion detection and camera sabotage detection
- IP66-rated
- Power over Ethernet (PoE) and 24VAC power input
- Compatible with Pelco and third-party video systems
- ONVIF Profile S conformant
- Light gray finish (RAL 9022); satin texture
| Sensor |
1/3' CMOS
|
| Sensor Resolution |
2048 x 1536 (3.1MP)
|
| Imager Readout |
Progressive scan
|
| Electronic Shutter Speed |
1/5 to 1/10,000 sec
|
| Dynamic Range |
65 dB
|
| White Balance |
2,500 to 8,000 K
|
| Digital Noise Reduction (DNR) |
Yes (On/Off selectable)
|
| Minimum Illumination |
Color @ f/1.2: 0.30 lux @ 33 ms; 0.02 lux @ 200 ms
Mono with IR Illumination @ f/1.2: 0 lux @ 33 ms 0 lux @ 200 ms |
| Mechanical IR Cut Filter |
Yes (Auto/Manual selectable) with different set points on lux
|
| IR Illumination |
Adaptive IR up to 82 (25 m); Auto On in night mode or Off
|
| Type |
Built-in, varifocal
|
| Focal Length |
f/1.2, 3 to 9 mm
|
| Focus |
Autofocus, motorized
|
| Zoom |
Remote
|
| Auto Iris Control |
DC drive P-iris lens
|
| Video Streams |
Up to 2 simultaneous streams, plus service stream; the secondary stream is variable based on the setup of the primary stream
|
| Overlay |
Camera name, date, time
|
| Available Resolutions |
2048 x 1536 (3.1MP); 4:3 aspect ratio
1920 x 1080 (2.1 MP); 16:9 aspect ratio 1600 x 1200 (1.9 MP); 4:3 aspect ratio 1280 x 960 (1.2 MP); 4:3 aspect ratio 1280 x 720 (0.9 MP); 16:9 aspect ratio 1024 x 576 (0.6 MP); 16:9 aspect ratio 800 x 600 (0.5 MP); 4:3 aspect ratio 640 x 480 (0.3 MP); 4:3 aspect ratio 320 x 240 (0.1 MP); 4:3 aspect ratio 320 x 180 (0.1 MP); 16:9 aspect ratio |
| Supported Frame Rates |
20 (full), 16.67, 15, 12.5, 10, 5, 1 fps
|
| Video Encoding |
H.264 High or Main profiles and MJPEG
|
| Bitrate Control |
Constant bit rate (CBR), constrained variable bit rate (CVBR) with target range
|
| Service |
Service Stream: 320 x 240 (0.1 MP) or 320 x 180; 2 ips, MJPEG
|
| Privacy Masking |
4 configurable windows
|
| Streaming |
Dual-channel
|
| Input |
Line in/terminal block
|
| Output |
Line out/terminal block
|
| Encoding |
G.711 A-law/G.711 U-law
|
| Port |
RJ-45 connector for 100Base-TX
|
| Cable Type |
CAT5 or better for 100Base-TX
|
| Supported Protocols |
TCP/IP, UDP/IP (Unicast, Multicast IGMP), ICMP, IPv4, SNMP v2c/v3, HTTP, HTTPS, SSL, SSH, SMTP, FTP, RTSP, UPnP, DNS, NTP, RTP, RTCP, LDAP (client), QoS
|
| Users |
Unicast: 1 administrator, up to 4 viewers
Multicast: Unlimited users H.264 |
| Security Access |
Multiple user access levels with password protection
|
| Power Input |
PoE (IEEE 802.3af, Class 3); 24 VAC nominal, 18 to 32 VAC range
|
| Power Consumption |
<11.50 W
|
| Alarm |
Input: 1
Output: 1; PhotoMOS relay (30 V, 1 A) Triggers: Unsupervised mode that detects switch closures (N.O. and N.C.) |
| Operating temperature |
-40 to 122°F (-40° to 50°C)
|
| Storage Temperature |
-40° to 140°F (-40° to 60°C)
|
| Humidity |
Operating: 15 to 85%, RH condensing
Storage: 20 to 80%, RH non-condensing |
| Video Management Software |
Digital Sentry 7.3 (or later); Endura 2.0 (or later); Third-party VMS through Pelco API 1.0 and ONVIF Profile S
|
| Mobile Apps |
Integrated to Pelco Mobile App
|
| Video Motion Detection |
Simple motion detection and camera sabotage
|
| Local Storage |
Captures 5- or 10-sec video clips on camera sabotage, motion detection, or alarm input
Records video continuously in case of network outage with the option to overwrite Access video through FTP protocol |
| Firmware Upgrade |
Discovery and firmware upgrade through Pelco Device Utility 2 version 2.2 and Endura Utilities
|
| Interface |
Web browser view and setup
|
| Web Browser Support |
Microsoft Internet Explorer 8.0 and later
|
| Language Support |
Chinese, English, French, German, Italian, Portuguese, Russian, Spanish, and Turkish
|
| Certifications |
CE, EN 55022 (Class A), EN 50130-4, EN 60950-1
FCC (Class A) - 47 CFR Part 15 UL/cUL listed, UL60950-1 CAN/CSA-C22.2 No. 60950-1-07 ICES-003, KCC, NOM ONVIF Profile S conformant |
| Shock and Vibration |
IEC 60068:2-27; IEC 60068:2-6
|
| Construction |
Die-cast aluminum, cylindrical
|
| Ingress protection |
IP66 per IEC 60529
|
| Finish |
Light gray, RAL 7035; satin texture
|
| Vandal Resistance |
IK10 (20 J impact) per IEC 62262
|
| Dimensions |
With Bracket: 4.33 x 10.61' (11.01 x 26.96 cm)
|
| Weight |
3.89 lb (1.76 kg)
|
| Package Weight |
5.55 lb
|
| Box Dimensions (LxWxH) |
13.5 x 6.9 x 6.7'
|
