Imaging
- True WDR (Wide Dynamic Range)
- Advanced low-light performance
- Anti-Bloom technology
- Up to 30 ips (images per second) at 1 Mp resolution
- Autofocus varifocal 3 to 9mm megapixel lens
- PoE (Power over Ethernet) enabled; accepts power from IEEE 802.3af devices
- Adaptive Motion Detection and Camera Sabotage Analytics
- Local storage via micro SD card (sold separately)
- Compatible with Pelco and third-party video systems
- ONVIF Profile S conformant
- Environmental Surface Mount Back Box
- Attaches to standard 4' square outlet box and standard 2-gang electrical box
- 3/4' NPT or 25mm conduit attachments on the side and top of back box
- Meets IP66 and NEMA TYPE 4X
- Meets IK10++ (50J)
- Alodine aluminum construction
- Light gray finish
Software
- Multilingual menus in user interface- English, French, Italian, German, Spanish, Portuguese, Russian, Chinese, Turkish
- 16 window blanks, configurable in size
- Password protection
- Text overlays for camera name, time, date
- Snapshot with JPEG capture at 2016 x 1523 resolution
Certifications / Ratings
- CE and FCC Class A, KCC, CCC, and C-Tick certified
- UL/cUL listed
- Compliant with applicable immunity sections of EN 50155, EN 50121-3-2, and EN 50121-4
- Cisco Medianet Media Services Proxy 2.0 compatible
- MTBF ≥ 200,000 POH (Reporting standard is RELEX Modeling)

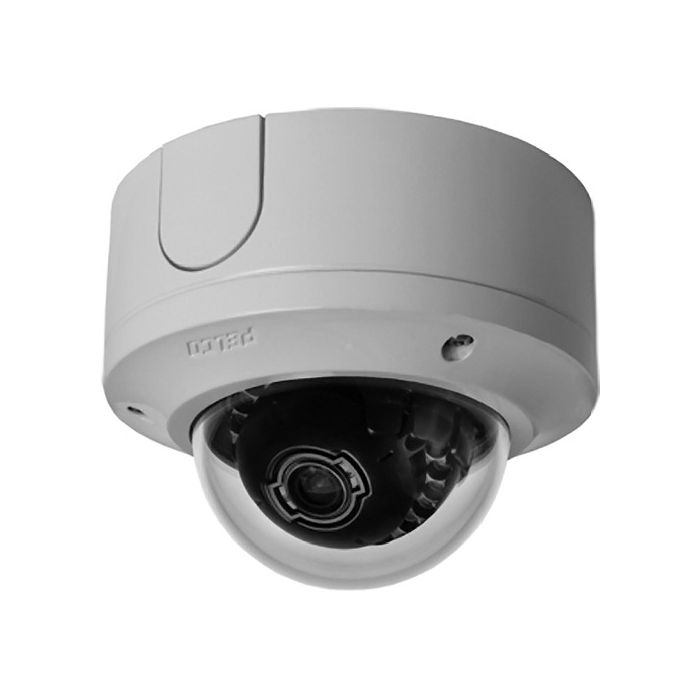

Pelco IME119 Specs
| Imaging Device |
1/3'
|
| Type |
Imager: CMOS
|
| Imager Readout |
Progressive scan
|
| Resolution |
(Highest) 1 Mp: 1280 x 720
|
| Signal-to-Noise Ratio |
>60 dB
|
| Range |
Electronic Shutter: 1 to 1/77,000 sec
True Wide Dynamic: Up to 100 dB White Balance: 2,000 to 10,000 K |
| Sensitivity |
f/1.2; 2,850 K; SNR >20 dB
Color (33 ms): 0.1 lux Color (500 ms): 0.005 lux Mono (33 ms): 0.05 lux Mono (500 ms): 0.0013 lux |
| Mechanical IR Cut Filter |
(On/Off/Auto selectable), with different set points on lux
|
Lens
| Lens Type |
Built-in, varifocal
|
| Focal Length |
3 to 9 mm, f/1.2
|
| Focus |
Autofocus, motorized
|
| Zoom |
Remote
|
| Auto Iris |
DC drive P-iris lens
|
| Field of View |
4:3
Diagonal: 105° (W) x 38° (T) Horizontal: 84° (W) x 30° (T) Vertical: 63° (W) x 23° (T) 16:9 Diagonal: 97° (W) x 35° (T) Horizontal: 84° (W) x 30° (T) Vertical: 47° (W) x 17° (T) |
Audio
| Streaming |
Bidirectional: Full or half duplex
|
| Input/Output |
Line level/external microphone input; 600 Ω, 1 Vpp maximum signal level
|
| Compression |
G.711 PCM 8-bit, 8 kHz mono at 64 kb/s
|
Video
| Video Streams |
Multiple simultaneous streams with up to 2 different configurations plus service stream; the secondary stream is variable based on the setup of the primary stream
|
| Aspect Ratio |
16:9
|
| Frame Rate |
Up to 30, 25, 15, 12.5, 10, 5, 1 (depending on the coding, resolution, and stream configuration)
|
| Video Encoding |
H.264 High, Main, or Base profiles; and MJPEG
|
| Control |
Bit Rate: CVBR (Constrained variable bit rate), CBR (constant bit rate), and VBR (variable bit rate) with target range
|
| Services |
JPEG stream; the aspect ratio will be consistent with the independent streams
|
Network
| Supported Protocols |
TCP/IP, UDP/IP (Unicast, Multicast IGMP), UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4, IPv6, SNMP v2c/v3, QoS, HTTP, HTTPS, LDAP (client), SSH, SSL, SMTP, FTP, ARP, ICMP, and 802.1x (EAP)
|
| Users |
Unicast: Up to 20 simultaneous users depending on the resolution settings
Multicast: Unlimited users H.264 |
| Security Access |
Password protected
|
| Software Interface |
Web browser view and setup
|
Minimum System Requirements
| Processor |
Intel Core i3 processor, 2.4 GHz
|
| Operating System |
Microsoft Windows 7 (32- and 64-bit), or Window Vista, or Mac OS X 10.4 (or later)
|
| Memory |
4 GB RAM
|
| Network Interface |
100 megabits (or greater)
|
| Monitor |
Minimum of 1024 x 768 resolution, 16- or 32-bit pixel color resolution
|
| Web Browser |
Internet Explorer 7.0 (or later) or Mozilla Firefox 3.5 (or later); Internet Explorer 8.0 (or later) is recommended for configuring analytics
|
| Media Player |
Pelco Media Player or QuickTime 7.6.5 for Windows 7, XP, or Vista; or QuickTime 7.6.4 for Mac OS X 10.4 (or later)
|
| Analytics |
Pelco Interface: WS5200 Advanced System Management
Software on an Endura 2.0 (or later) system Open API: The Pelco API can transmit behavior alarm data to third-party applications |
| Integration |
Pelco System Integration: Endura 2.0 (or later)
Digital Sentry 7.3 (or later) DX4700/DX4800 Open API: Pelco API or ONVIF Profile S Mobile Application: Integrated with Pelco Mobile Application |
Electrical
| Port |
Network: RJ-45 connector for 100dBase-TX Auto MDI/MDI-X
Accessory: Micro B USB connector for Pelco accessories |
| Cable Type |
Cat5 or better for 100dBase-TX
|
| Input Power |
PoE (IEEE 802.3af, Class 3)
|
| Power Consumption |
8.5 W nominal
|
| Current Consumption |
350 mA maximum
|
| Local Storage |
Micro SD (sold separately)
|
| Alarm |
Unsupervised: Detects open or closed alarm state
Supervised: Detects open and short alarm state with external 1 kΩ resistor |
| Alarm Input |
3.5 VDC maximum, 3.5 mA maximum
|
| Relay Output |
±32 VDC maximum, 150 mA maximum
|
Mechanical
| Dome Attenuation |
Clear: f/0.0 light loss
Smoked: f/1.0 light loss |
| Adjustments |
Manual
Pan: 355° Tilt: 180° Rotation: 360° |
Environmental
| Operating Temperature |
-40 to 122°F (-40 to 50°C)
|
| Cold Start |
-4°F (-20°C)
|
| Storage Temperature |
14 to 140°F (-10 to 60°C)
|
| Operating Humidity |
10 to 95%, RH condensing
|
| Storage Humidity |
20 to 80%, RH non-condensing
|
| Impact Resistance |
K10++ (50J) per IEC 62262
|
| Shock and Vibration |
EN50155 Category 1, Class B; IEC 60068:2-6 and 2-27
|
| Dimensions |
6.22 x 4.62' (16.79 x 11.73 cm)
|
| Weight |
3.3 lb (1.5 kg)
|
Packaging Info
| Package Weight |
4.65 lb
|
| Box Dimensions (LxWxH) |
12.9 x 8.5 x 6.8'
|
