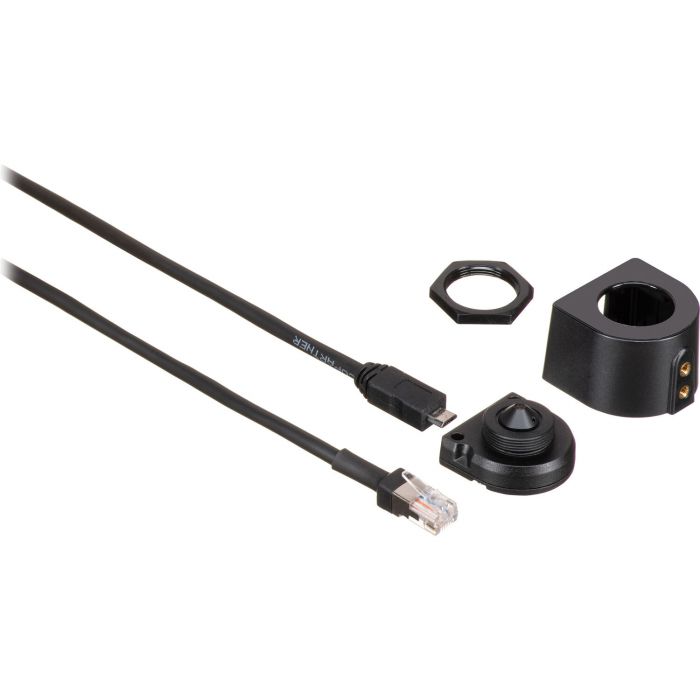

Designed for covert surveillance, the Vivotek CU9171-HF 4MP Modular Camera Sensor with 3.7mm Pinhole Lens works in conjunction with the VC9101 Video Core System (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. The camera features a flat-shaped sensor unit with a 3.7mm pinhole lens and 16.4 cable for flexible placement. The lens delivers a 93° horizontal field of view.
- Designed to be used with the VC9101 video core system
- WDR Pro
- 55.9 dB S/N ratio
- ePTZ with 48x digital zoom
DORI Ranges
- 253 detection range
- 100 observation range
- 51 recognition range
- 25 identification range
Key Specs
| Image Sensor |
1/2.7'-Type CMOS
|
| Focal Length |
3.7mm
|
| Field of View |
Horizontal: 93°
Vertical: 48° Diagonal: 117° |
| Pan/Tilt |
No
|
| Power I/O |
1x DC
1x RJ45 |
Imaging
| Number of Lenses |
1
|
| Image Sensor |
1/2.7'-Type CMOS
|
| Sensor Resolution |
Effective: 4 Megapixel
|
Exposure Control
| Minimum Illumination |
0.045 Lux (Color)
|
Lens
| Focal Length |
3.7mm
|
| Max Digital Zoom |
48x
|
| Field of View |
Horizontal: 93°
Vertical: 48° Diagonal: 117° |
| Maximum Aperture |
f/2.5
|
Video
| Max IP Streaming |
via RJ45
2688 x 1520 up to 30.00 fps |
Control
| Pan/Tilt |
No
|
Interface
| Media/Memory Card Slot |
No
|
Sensors & Alarms
| Event Trigger |
No
|
Power
| Power I/O |
1x DC
1x RJ45 |
General
| Environmental Resistance |
No
|
| Startup Temperature |
32 to 122°F / 0 to 50°C
|
| Mobile App Compatible |
No
|
| Dimensions (W x H x D) |
1.3 x 1.3 x 0.8' / 32 x 33 x 20 mm
|
| Weight |
1.5 oz / 43 g (Body Only)
|
Packaging Info
| Package Weight |
0.795 lb
|
| Box Dimensions (LxWxH) |
12.6 x 6.7 x 2'
|
