Vivotek CU9183-HF - lente plano tipo fisheye, 5 megapixeles, wdr pro, fijo 1.22mm, cable de metros
Precio especial $4,731.00 IVA incluido + Envio $150 MXN
Antes $5,488.00
Disponible 1 Pzas
Antes $5,488.00
Disponible 1 Pzas
sku: CU9183-HF
pub
MX0000105714

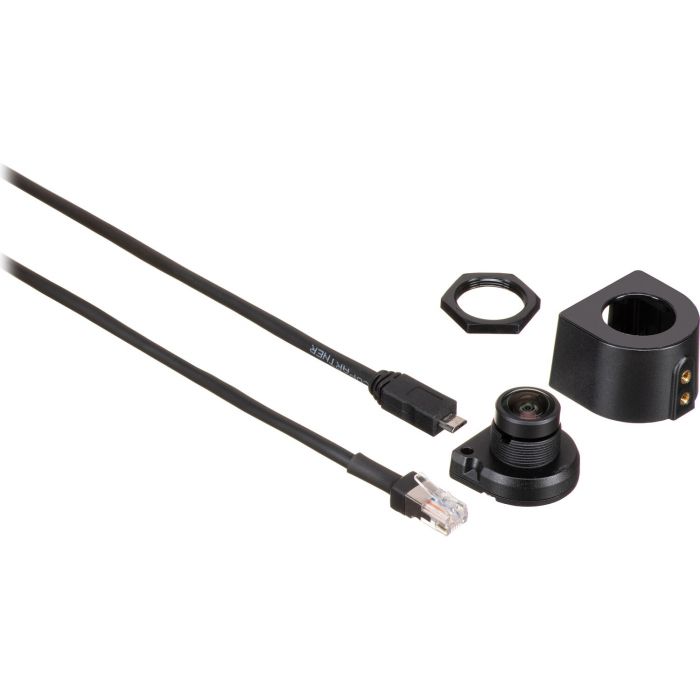

Designed for covert surveillance, the Vivotek CU9183-HF 5MP Modular Camera Sensor with 1.22mm Fisheye Lens works in conjunction with the VC9101 Video Core System (available separately) for installation in ATMs, banks, stores, offices, and tight spaces. The camera features a flat-shaped sensor unit with a 1.22mm fisheye lens and 16.4 cable for flexible placement. The lens delivers a 180° horizontal field of view.
- Designed to be used with the VC9101 video core system
- WDR Pro
- 56.3 dB S/N ratio
- ePTZ with 48x digital zoom
DORI Ranges
- 80 detection range
- 32 observation range
- 16 recognition range
- 8 identification range
Key Specs
Image Sensor |
1/2.7'-Type CMOS
|
Focal Length |
1.2mm
|
Field of View |
Horizontal: 180°
Vertical: 180° Diagonal: 180° |
Pan/Tilt |
No
|
Power I/O |
1x DC
1x RJ45 |
Imaging
Number of Lenses |
1
|
Image Sensor |
1/2.7'-Type CMOS
|
Sensor Resolution |
Effective: 5 Megapixel
|
Exposure Control
Minimum Illumination |
0.035 Lux (Color)
|
Lens
Focal Length |
1.2mm
|
Max Digital Zoom |
48x
|
Field of View |
Horizontal: 180°
Vertical: 180° Diagonal: 180° |
Maximum Aperture |
f/2
|
Video
Max IP Streaming |
via RJ45
1920 x 1920 up to 30.00 fps |
Control
Pan/Tilt |
No
|
Interface
Media/Memory Card Slot |
No
|
Sensors & Alarms
Event Trigger |
No
|
Power
Power I/O |
1x DC
1x RJ45 |
General
Environmental Resistance |
No
|
Startup Temperature |
32 to 122°F / 0 to 50°C
|
Mobile App Compatible |
No
|
Dimensions (W x H x D) |
1.3 x 1.3 x 1.1' / 32 x 33 x 28 mm
|
Weight |
1.8 oz / 52 g (Body Only)
|
Packaging Info
Package Weight |
0.81 lb
|
Box Dimensions (LxWxH) |
13.1 x 7 x 2'
|
Marca | Vivotek |
---|---|
MPN: | CU9183-HF |
